Item specifics
- Type Twilight switch with Bluetooth
- Output Max. 1000 W resistive load
- Voltage 220–240 V AC / 50–60 Hz
- Twilight setting 1–1000 lx
- Night economy mode Yes; set in STEINEL Connect app
- Morning setting Controlled by brightness and app time settings
- IP rating IP54
- Dimensions (W×H×D) 95 × 95 × 38 mm (W × H × D)
- Ambient temperature −20 … +40 °C
- Wattage Sensor’s own power consumption: 0.5 W
- Relay load COM1 on/off relay: max. 1000 W resistive load or 250 W LED load; no more than 50 light sources, combined capacitance <88 µF.
- LED load Max. 250 W total; max. 50 light sources; total C <88 µF
- Setup In the STEINEL Connect app over Bluetooth Mesh; current brightness can be stored (Teach-in). After a power failure, restore the clock time through the app.
- Installation Surface wall mounting
- Colour anthracite
- Material UV-resistant plastic
- Weight 128 g (manufacturer net weight)
- Warranty 3-year manufacturer warranty; manufacturer terms apply
- SKU 066116
- EAN 4007841066116
Product Description

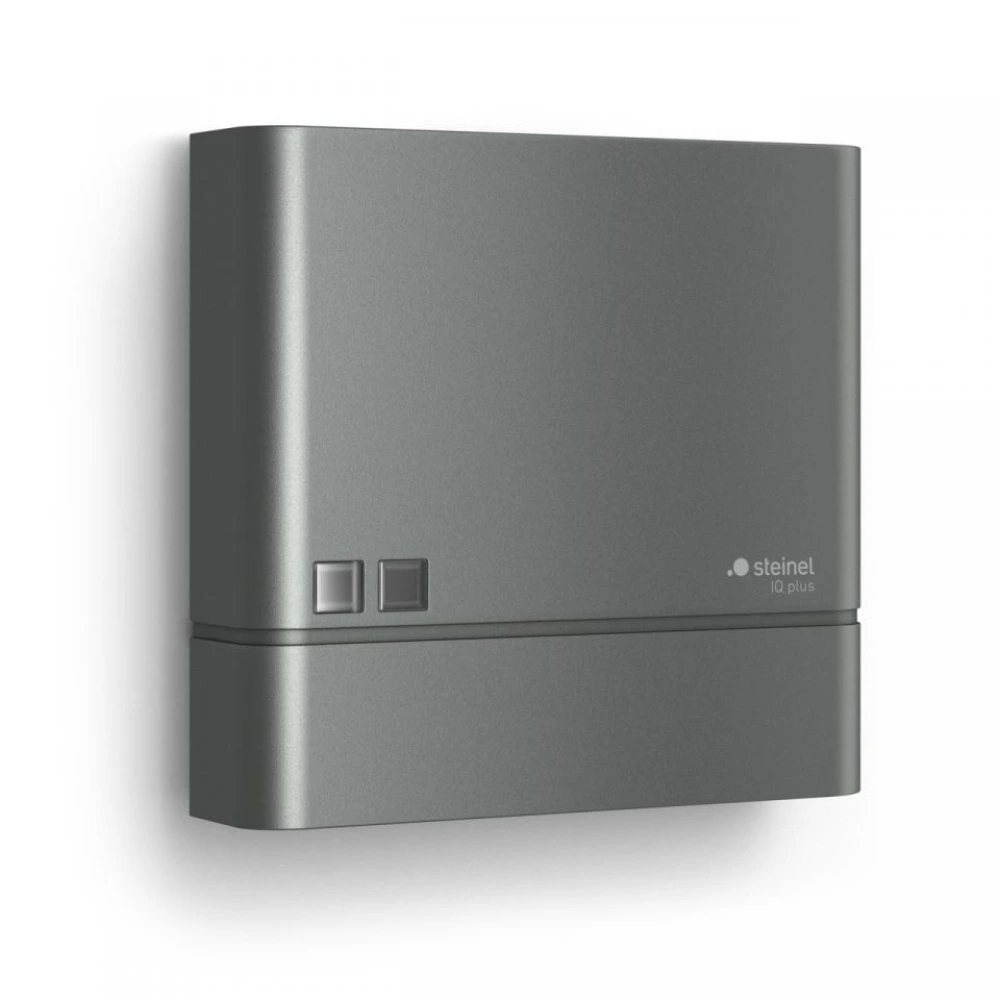

STEINEL NightmatIQ Plus is a twilight switch with an integrated relay and Bluetooth configuration through the STEINEL Connect app. It controls connected outdoor lights according to ambient brightness and lets you reduce lighting hours during the night. Suitable for entrances, façades, courtyards and shop windows. This is the anthracite version (066116).
Practical features
- 1–1000 lx twilight threshold: the wide adjustment range helps match switching to the installation. Teach-in can store the current ambient brightness.
- STEINEL Connect app: configure operation on your phone using Bluetooth. The sensor responds to brightness, not movement.
- Night economy mode: use app-based time limits and a night-off period when lighting is not required. Useful when light is needed in the evening and early morning, but not throughout the night.
- Relay and Bluetooth Mesh: control wired luminaires and connect compatible STEINEL Connect devices in a lighting network.
- IP54 and UV-resistant plastic: the splash-protected housing is suitable for outdoor installation. Compact dimensions: 95 × 95 × 38 mm (width × height × depth).
NightmatIQ Plus receives its time from the phone. After a power failure, reconnect with the app to restore the time, as this model has no clock backup. For a clock with a 7-day backup, choose TTS PRO.
Installation: surface mounting on a wall, with a 220–240 V / 50–60 Hz supply. Choose a position where the sensor can detect ambient daylight without direct illumination from the light it controls. Operating temperature: −20 to +40 °C; own consumption: 0.5 W. 3-year manufacturer warranty, subject to STEINEL’s terms.
Delivery: 2–3 business days.
Also available in white.
