STEINEL RS 200 SC indoor LED sensor ceiling light, Bluetooth, 17.1 W, 1165 lm, 3000 K, anthracite — 078782
Estimated sourcing to our Riga store: ~2 weeks.
Delivery to your address is counted from dispatch; for products on order, add it to the sourcing time. The carrier time is shown with the delivery method at checkout.
Quantities above available stock require sourcing of the remaining units. Check the information in your cart.
For collection, wait for confirmation that your order is ready.
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Light source type Integrated LED
- Replaceable light source No — LED is not user-replaceable
- Voltage 220–240 V AC
- Housing colour Anthracite
- Housing material Aluminium
- Diffuser material Opal plastic
- Dimensions (L×W×H) Ø263 × 53 mm
- Mounting type Surface mounting on wall or ceiling; indoors
- IP rating IP54
- IK rating IK10
- Protection class (electrical) Class I — protective earth required
- Operating temperature (Ta) −20…+40 °C
- Remote control included No remote control supplied
- Soft light start Yes — soft light start
- Driver included Yes — LED control gear in the fitting
- Weight 902 g
- Warranty 3-year manufacturer warranty subject to STEINEL terms
- Accessories Mounting accessories included; one light
- Wattage 17.1 W — light switched on
- Luminous flux 1165 lm
- Luminous efficacy (lm/W) 68 lm/W
- Colour temperature (CCT) 3000 K
- Light colour Warm white
- Colour rendering index (CRI/Ra) Ra 80
- Colour consistency (SDCM) SDCM 3
- Mains frequency 50–60 Hz
- Dimmable Yes — main light 50–100%; no external dimmer
- Smart control Bluetooth Mesh; STEINEL Connect
- Energy class E — built-in light source LS-0007 label
- Energy consumption (kWh/1000 h) 18 kWh/1000 h — light source energy label
- Rated Lifetime (hours) 54,000 h L70 (IEC 62717 / IES TM-21)
- Photobiological risk group RG1
- SKU 078782
- EAN 4007841078782
- Sensor type High-frequency (HF), 5.8 GHz; transmission power <1 mW
- Reach Ø1–8 m detection diameter; up to 50 m²
- Detection angle 360°; 160° angle of aperture
- Maximum mounting height 4 m
- Time setting 5 s–30 min after last movement
- Twilight setting 2–2000 lx
- Sensor system Electronically adjustable; may detect through glass, wood and lightweight partitions
- Manual override Selectable 4-hour continuous light
- Watt-o-matic 10–100%; basic-light duration 1–60 min per current product table
- Output 0.5 W sensor standby; 0.5 W network standby per manufacturer table
- Parallel connection Wireless Bluetooth Mesh groups; neighbouring-group function
- Settings STEINEL Connect app; Bluetooth Mesh
Product Description

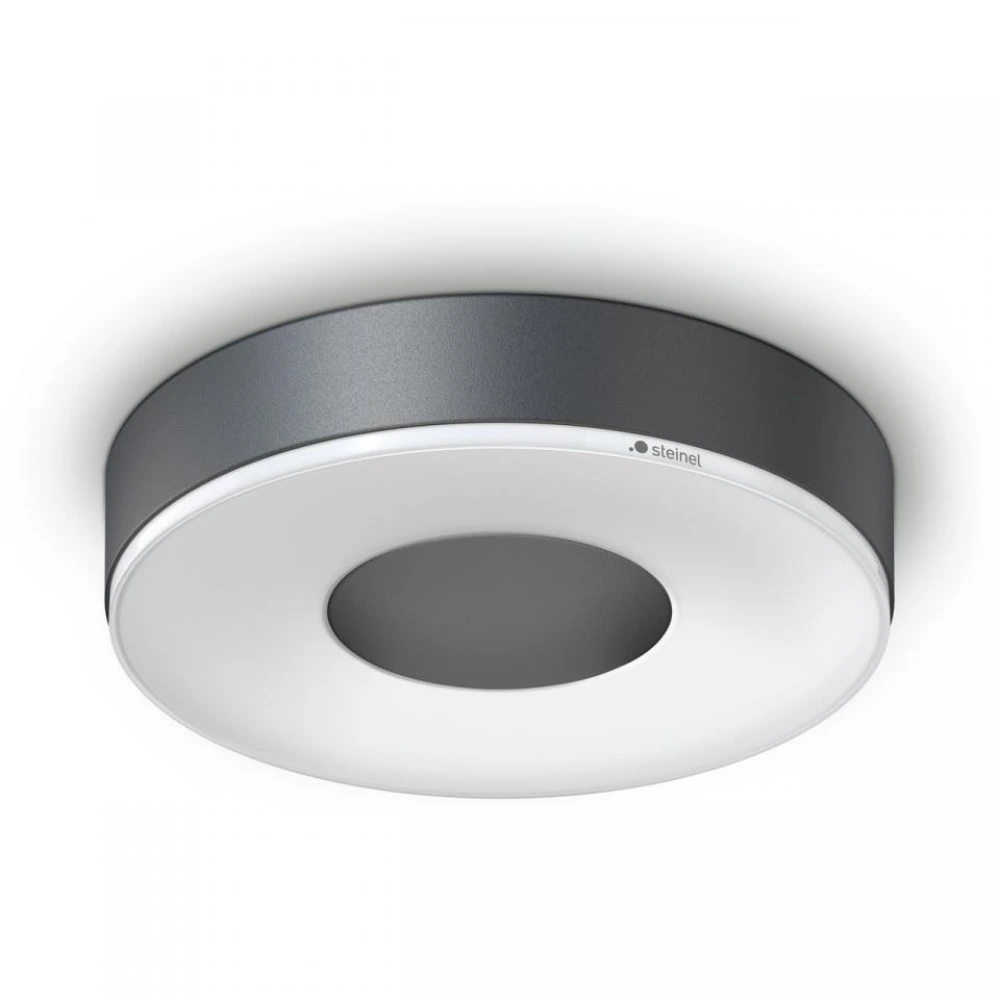

STEINEL RS 200 SC is an anthracite LED wall and ceiling light with a 360° HF motion sensor and Bluetooth Mesh interconnection. Its aluminium housing and opal illuminated surface provide a restrained interior accent. The 17.1 W LED system delivers 1165 lm of 3000 K warm-white light for corridors, stairwells and shared areas.
Phone setup and grouped lighting
The STEINEL Connect app provides setup and grouping of compatible lights. Control signals travel wirelessly, while every fitting still requires a 220–240 V mains connection. The neighbouring-group function can activate lighting in an adjacent group to illuminate a route progressively.
The HF sensor detects movement through 360°, with an adjustable Ø1–8 m detection diameter. It can detect through glass or lightweight partitions, so coverage should be set for the room layout. Switch-off delay is 5 seconds–30 minutes; the ambient-light threshold is 2–2000 lx.
Set lighting levels to suit the space
Main light is adjustable from 50–100%. Adjustable basic light and a 4-hour continuous-light mode are also available. Soft light start creates a gentler transition into an illuminated room. Brightness is controlled by the fitting's own system; do not connect an external wall dimmer.
A compact, durable housing
Dimensions are Ø263 × 53 mm. IP54 denotes dust protection and resistance to water splashes, while IK10 indicates high impact resistance. Electrical class I requires a protective-earth connection. LED colour rendering is Ra 80, and the stated L70 lifetime is 54,000 h.
One light with its integrated LED system and mounting accessories is supplied. The LED is not user-replaceable. The instructions specify at least 3 m separation from Wi-Fi routers and access points to reduce interference. The SC version has its own sensor; RS 200 C is a separate sensor-free version.
