STEINEL RS D2 S LED sensor wall/ceiling light, 3000 K, IP20, stainless steel — 052539
The product is in stock up to the available quantity.
Delivery to your address is counted from dispatch; for products on order, add it to the sourcing time. The carrier time is shown with the delivery method at checkout.
Quantities above available stock require sourcing of the remaining units. Check the information in your cart.
For collection, wait for confirmation that your order is ready.
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Light source type Integrated LED
- Replaceable light source No
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour White with brushed stainless-steel surround
- Housing material Plastic; brushed stainless-steel surround
- Diffuser material Opal plastic
- Dimensions (L×W×H) 300 × 300 mm face; 66 mm depth
- Mounting type Surface-mounted; wall or ceiling; dry indoors
- IP rating IP20
- Protection class (electrical) II
- Control method Controls on the luminaire; motion and twilight sensing
- Basic light 10% selectable night lighting
- Warranty 3 years
- Accessories Mounting accessories included
- Colour temperature (CCT) 3000 K; warm white; fixed
- Dimmable External dimmer not supported; selectable 10% night lighting
- Sensor type Active high frequency (HF), 5.8 GHz
- Reach Ceiling mounting: approximately Ø3–8 m; electronically adjustable
- Detection angle 360°; aperture 160°
- Time setting 5 s–15 min
- Twilight setting 2–2000 lx
- Segment masking No; reach adjusts electronically
- Manual override 4 h; activated through a mains switch
Product Description

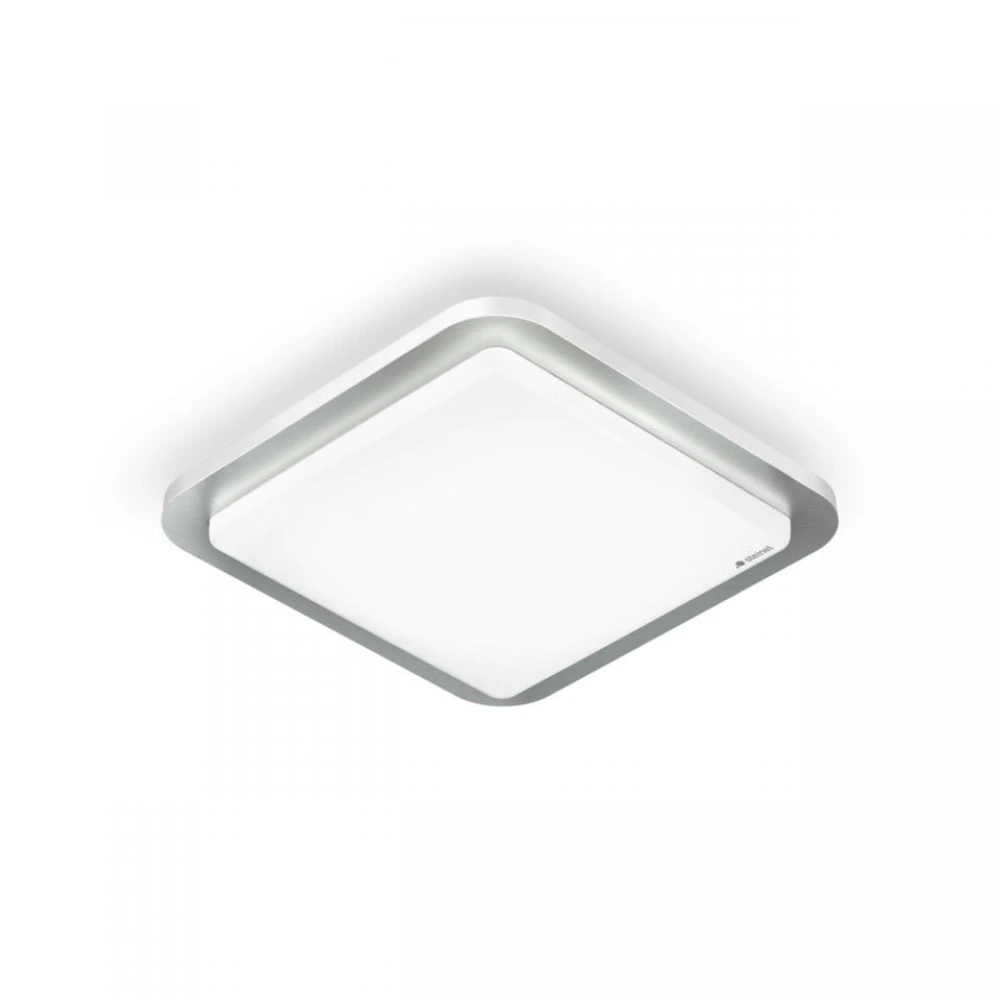

STEINEL RS D2 S is a square LED wall and ceiling light with a concealed motion sensor. A brushed stainless-steel surround frames the broad opal-white light surface, giving the fitting a restrained, modern appearance. It suits entrance halls, corridors and stairwells where automatic illumination makes everyday movement easier.
Warm white light with an ambient glow. The integrated LED provides 3000 K illumination, while the opal plastic cover diffuses the light. The glow around the fitting adds depth to the wall or ceiling. A 300 × 300 mm face and 66 mm depth make it suitable for locations with lower ceilings.
Automatic light from a hidden HF sensor. The high-frequency sensor sits behind the cover, leaving the front free of a protruding sensor lens. 360° detection and an adjustable field of approximately Ø3–8 m when ceiling-mounted help match operation to the room. HF technology can also detect movement through glass, wood and lightweight partitions; adjust the detection range to suit the room layout.
Settings for everyday use. Controls on the light set the lighting duration from 5 seconds to 15 minutes and the twilight threshold from 2 to 2000 lx. Selectable 10% night lighting provides orientation after dark. A mains switch can activate the four-hour manual override, after which the light returns to sensor operation.
For dry indoor areas. Surface-mount the IP20 fitting on a wall or ceiling and connect it to a 220–240 V mains supply. An external mains dimmer is not supported. The light has an integrated LED light source and includes mounting accessories. This is the stainless-steel RS D2 S version, article 052539.
