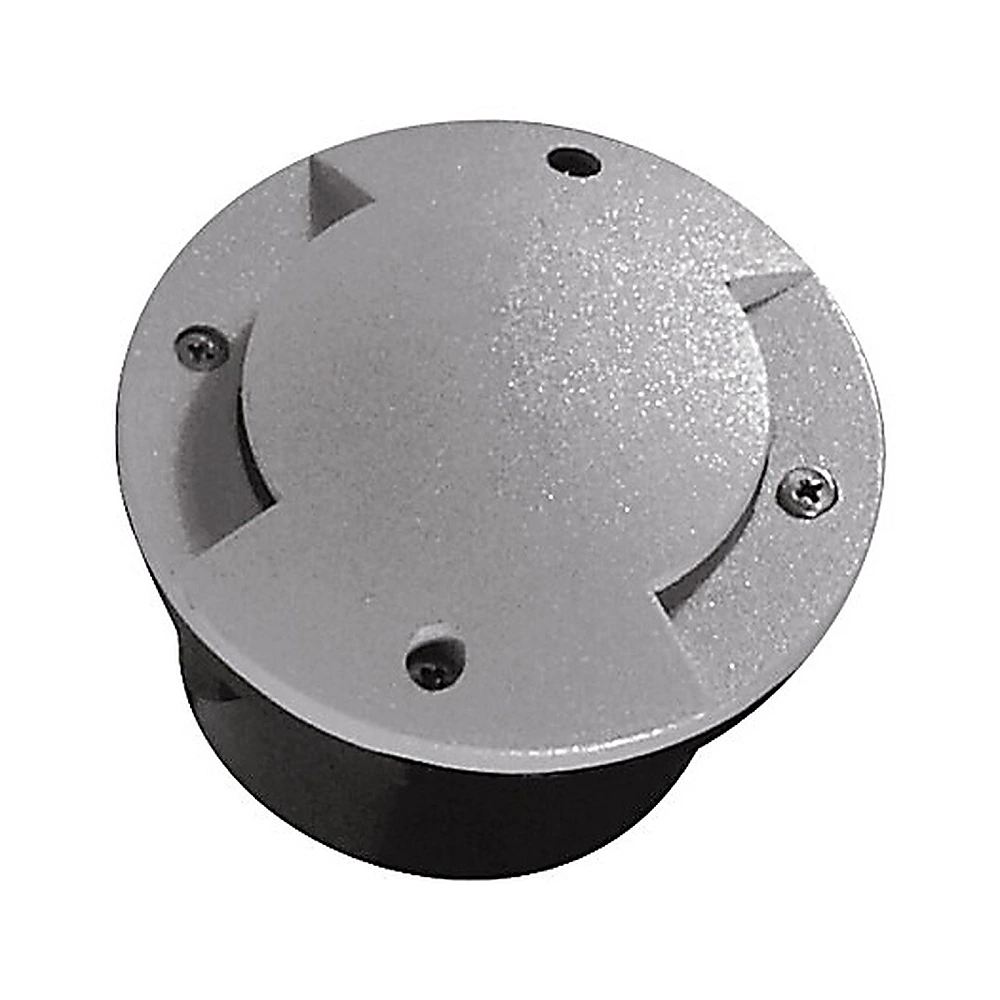

ROGER DL-2LED6 recessed ground marker 1 W, horizontal light, IP66 (Kanlux 07281)

18.95€

Ex Tax: 15.66€

Brand: Kanlux

Product Code: 07281

Availability: In Stock

Viewed 130 times

Qty

Add to wishlist
Add to compare

Tags: Kanlux ROGER recessed ground marker horizontal LED light IP66

Categories Cart Account Search Recent View Go to Top

Description

Item specifics

Light source type Integrated LED
Replaceable light source No
Voltage 220–240 V AC, 50 Hz
Housing colour Grey
Housing material Steel, plastic and aluminium
Dimensions (L×W×H) Ø100 × 74 mm
Mounting type Ground-recessed
IP rating IP66
IK rating IK09
Protection class (electrical) Class I
Operating temperature (Ta) −20 to +35 °C
Cable length 0.3 m
Light distribution Horizontal
Weight 270 g
Wattage 1 W
Colour temperature (CCT) 6000–6500 K
Light colour Cool white
Rated Lifetime (hours) 20,000 h
Mounting type Ground-recessed
Installation Ground / outdoor paving
Recessed depth 74 mm
Cut-out diameter 96 mm
Accessories (included) Mounting box
Visible trim Ø 100 mm

Product Description

Kanlux ROGER DL-2LED6 is a recessed outdoor marker that emits cool white light horizontally through the openings in its top plate. Rather than acting as a powerful uplight, it is intended to define routes, terrace edges and landscape boundaries with a low, directional guidance light.

Key benefits

Integrated source: 1 W LED, 6000–6500 K, rated lifetime 20,000 hours.
Outdoor durability: IP66 ingress protection and IK09 impact resistance.
Installation data provided: Ø100 mm visible trim, approximately Ø96 mm cut-out and 74 mm recess depth.
Load specification: published static pressure resistance of 5 kN for correctly supported installation.

Use and installation

Install the marker in a drained, structurally supported opening using the supplied mounting box. Keep the horizontal light outlets unobstructed and provide a safe mains connection protected from water ingress. The published 5 kN static-pressure value does not by itself confirm suitability for vehicle traffic.

Package and important information

The integrated 1 W LED and mounting box are included. The 0.3 m cable is part of the luminaire. Additional junction components and drainage materials must be selected for the actual installation environment.
