JOAKIM pendant light 12x7W coffee (Lucide)
Estimated sourcing to our Riga store: ~2 weeks.
Delivery to your address is counted from dispatch; for products on order, add it to the sourcing time. The carrier time is shown with the delivery method at checkout.
Quantities above available stock require sourcing of the remaining units. Check the information in your cart.
For collection, wait for confirmation that your order is ready.
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Light source type Integrated LED
- Replaceable light source Replaceable LED module; service as instructed by Lucide; no bulb socket
- Number of bulbs 12 integrated LED sources
- Housing colour Coffee / Black
- Housing material aluminium
- Light direction Downward through conical modules; 36° beam
- Adjustable light direction Fixed light direction
- Dimensions (L×W×H) Overall: 1350 × 200 × 1630 mm; rectangular canopy: 1350 × 200 × 50 mm
- Mounting type Suspended ceiling mounting
- Height adjustable Yes — pulley mechanism
- Height adjustment range 70 cm–163 cm
- IP rating IP20
- Protection class Class II
- Cable length 1300 mm, per exact technical drawing
- Lamp has a switch No built-in manual switch
- Control method External wall switch (not included)
- Dimming method Compatible external LED dimmer (not included)
- Weight 10900 g
- Warranty 5 years
- Wattage 12 × 7 W = 84 W (source total)
- Luminous flux 12 × 28–275 lm; maximum source sum 3300 lm
- Colour temperature (CCT) 2700 / 3300 / 4000 K; DIP selector on the luminaire
- Light colour Adjustable white colour temperature: 2700 / 3300 / 4000 K
- Colour capability White CCT selected by DIP switch; separate from brightness dimming
- Beam angle 36°
- Colour rendering index (CRI/Ra) 90
- Voltage 220–240 V AC, 50 Hz
- Mains frequency 50 Hz
- Dimmable Yes — with compatible external dimmer
- Energy class G
- Rated Lifetime (hours) 30000 h
- Switching cycles 10000
- Full product code 24407/86/96
- EAN 5411212242136
- Socket Integrated LED module; no replaceable bulb socket
- Included Yes — integrated LED sources
- Type Integrated LED
- Sensor type No motion sensor
Product Description

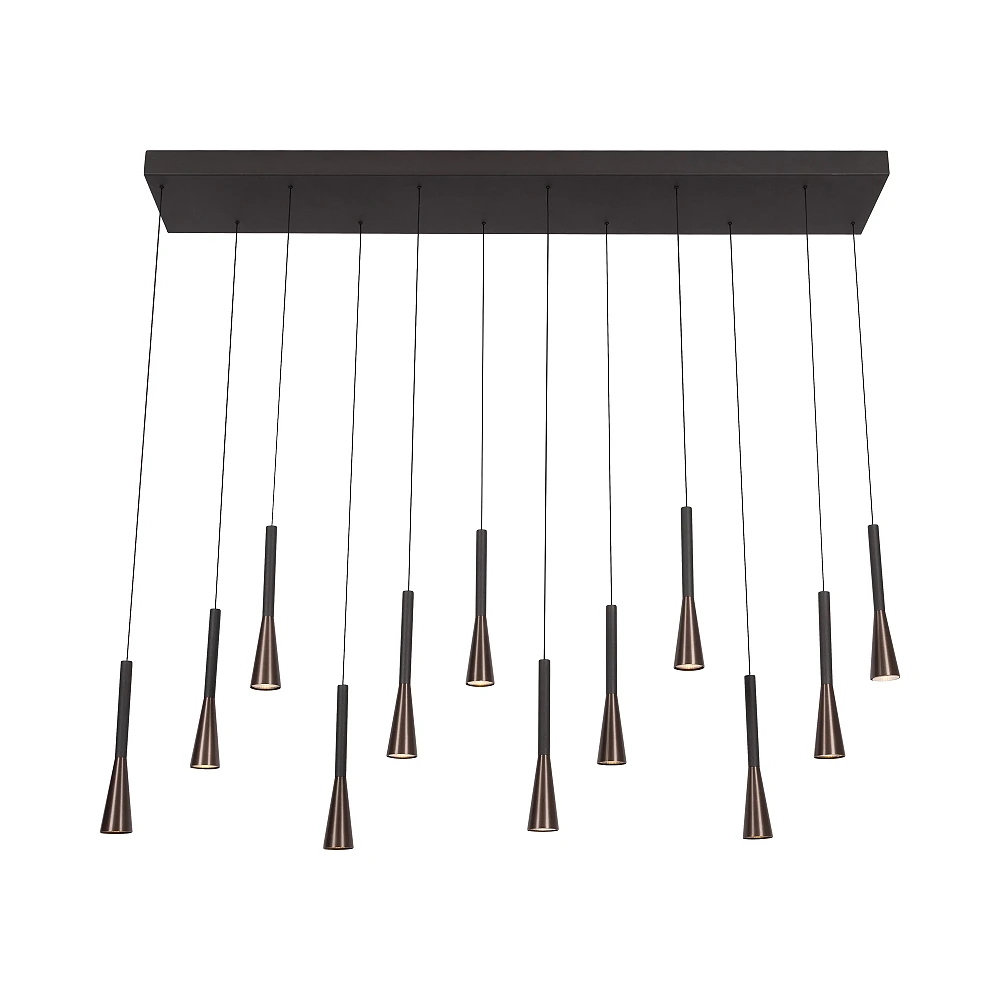

Lucide Premium JOAKIM is a pendant light with slender aluminium light elements in matt coffee brown. A cylindrical upper section widens into a small cone at the bottom, while black suspensions and canopy create a restrained modern contrast. 12 slender pendants hang beneath an elongated black canopy. The linear arrangement suits a dining table or kitchen island, and varying suspension heights adapt the composition to the furniture.
The fitting includes 12 integrated LED modules, each rated at 7 W with a luminous flux of 275 lm. Source powers total 84 W and their outputs add up to 3300 lm; this is an arithmetic sum rather than a separately measured complete-fitting output. The 36° beam angle concentrates light on the surface below each pendant, making placement important for lighting a table or work area. High colour rendering at CRI 90 helps food, wood and textile colours look more natural. The light elements do not swivel like spotlights.
A DIP switch on the fitting selects 2700 K, 3300 K or 4000 K, from a warm white atmosphere to a more neutral tone for everyday tasks. This colour selection is separate from brightness adjustment. Disconnect power before changing the setting.
The fitting is dimmable with a compatible external dimmer, sold separately. An ordinary wall switch provides on/off operation. The manual lists an output range of 28–275 lm per source when dimming; the minimum achievable level depends on dimmer compatibility. There is no motion sensor.
A pulley height-adjustment mechanism allows the light elements to be positioned within 70–163 cm. Overall dimensions at maximum height are 135 × 20 × 163 cm, with a canopy measuring 135 × 20 × 5 cm. Each aluminium head measures Ø5.2 × 28 cm. The black fabric-covered suspension cable is shown as 130 cm long in the drawing. Net weight is 10.9 kg; the mounting surface and fixings must support this load.
The LED module is replaceable, allowing the light element to be changed during servicing without replacing the entire fitting. This is not a conventional screw-in bulb socket; a module suitable for this model and the manufacturer’s replacement procedure are required. Light sources and installation materials are included.
The fitting connects permanently to a 220–240 V, 50 Hz mains supply. IP20 is intended for dry indoor use, while electrical class II denotes double or reinforced insulation. Each LED source has an expected lifetime of 30,000 h, 10,000 switching cycles and energy efficiency class G. The fitting has a 5-year warranty.
