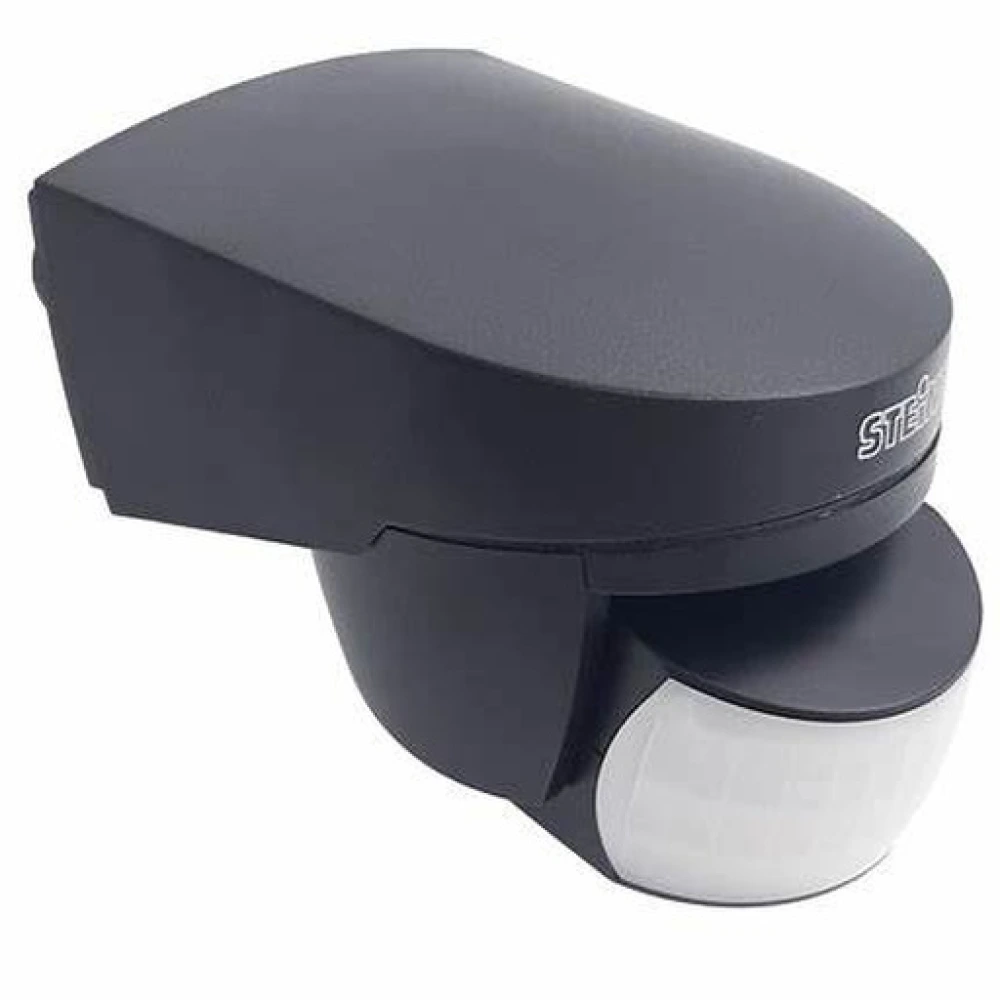

IS 2140 ECO motion detector, black, 140°, 14 m, IP54 (Steinel)

37.00€

Ex Tax: 30.58€

Brand: Steinel

Product Code: 034689

Availability: 2 - 3 work days

Viewed 232 times

Qty

Add to wishlist
Add to compare

Tags: Motion detector IS 2140 ECO black 140° 2000W IP54 14m STEINEL

Categories Cart Account Search Recent View Go to Top

Description

Item specifics

Reach 14m
Detection angle 140° with sneak-by guard
Twilight setting 2 - 2000 lux
Sensor system 1 sensor
Manual override -
Output - 2000 W max. (resistive load, e.g. filament bulb) - max. 4 LED 58W
Voltage 230 - 240 V/50 Hz
Ambient temperature -20° to +50° C
IP rating IP 54
Dimensions (W×H×D) 83 x 99 x 86 mm
Warranty 5 years
Time setting 8 sec. - 35 min.

Product Description

IS 2140 ECO motion detector, black, 140°, 14 m, IP54 (Steinel) is a motion detector for automatic lighting control. It switches the connected lighting only when required, improving convenience and reducing unnecessary energy consumption.

Design and functionality

Adjustable sensor parameters allow the operation to be adapted to the mounting position, ambient light level and required detection area. The housing is designed for reliable everyday operation in accordance with the stated IP rating.

Recommended applications

Suitable for entrances, corridors, stairways, yards, garages and other areas where lighting should be activated automatically.

Selection and compatibility

When selecting the detector, compare its detection angle and reach with the geometry of the room or outdoor area and check the permitted connected-load type. For LED light sources, observe the manufacturer's maximum load and any stated minimum load.

Technical specifications

Jauda: - 2000 W max. (resistive load, e.g. filament bulb) - max. 4 LED 58W
Paredzēts spriegumam: 230 - 240 V/50 Hz
Izmēri: 83 x 99 x 86 mm
Weight: 172 g
Garantijas laiks: 5 years
Sensora jūtība: 1 sensor
Nepārtraukta apgaismojuma funkcija: -
Sniedzamība: 14m
Uztveres leņķis: 140° with sneak-by guard
Laika intervāls: 8 sec. - 35 min.
Krēslas slieksnis: 2 - 2000 lux
Korpusa aizsardzība: IP 54
Nevainojama darbība pie t: -20° to +50° C
Manufacturer code: 034689

Installation and use

Install with a clear view of the monitored area and follow the manufacturer's recommended mounting height. Disconnect the power before wiring, then adjust the detection direction, time setting and twilight threshold after installation.

Care and safety

Clean the housing and visible surfaces with a soft dry or slightly damp cloth, without abrasive or aggressive cleaning products. Disconnect the power before cleaning or maintenance and check that the fixings and connections are not damaged.
