Item specifics
- Replaceable light source Yes
- Number of bulbs 1
- Max. power Max. 35 W
- Housing colour White
- Housing material Aluminium alloy and polycarbonate (pc)
- Dimensions (L×W×H) Ø80 × 36 mm
- Mounting type Recessed ceiling mounting
- IP rating IP20
- Weight 63 g
- Warranty 2 years
- Socket GU10
- Included Lamp not included
- Recessed depth 36 mm body; allow space for lamp and holder
- Cut-out diameter Ø70 mm
- Manufacturer SKU 2047
- EAN 3800156620476
Product Description

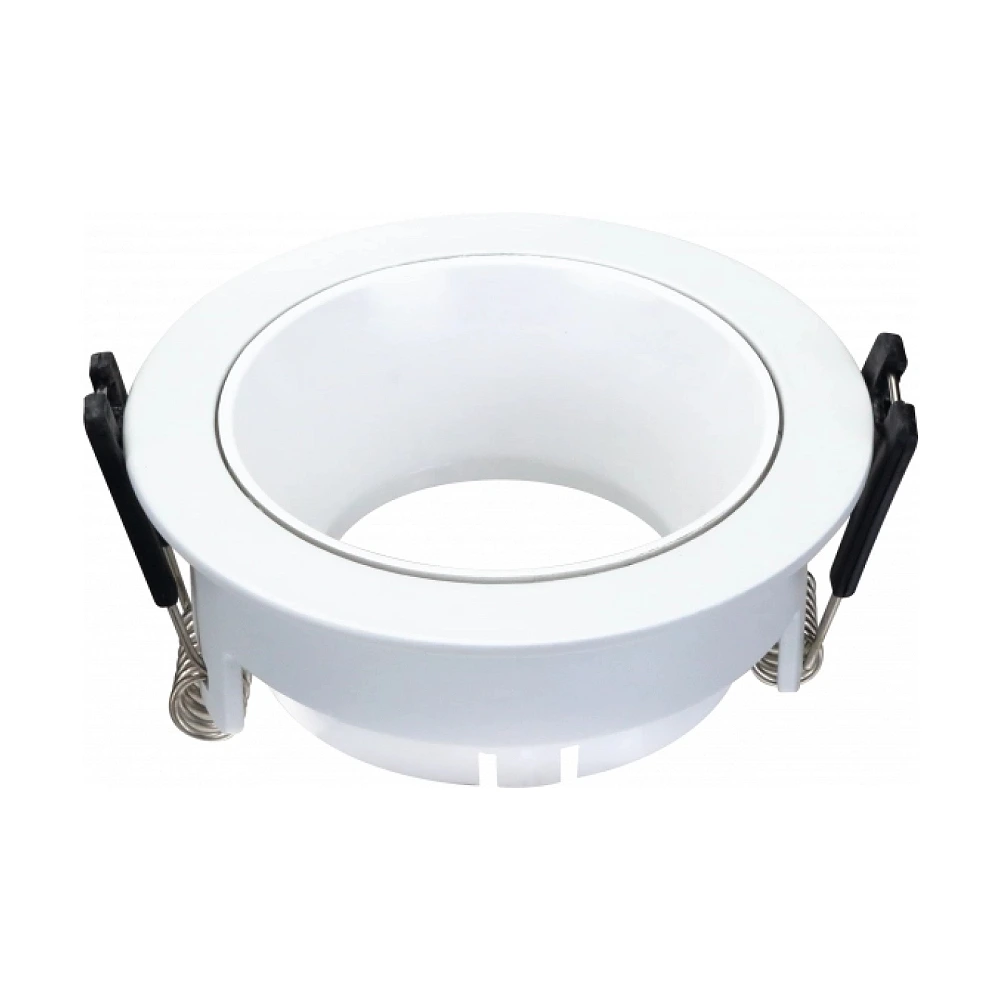

OPTONICA 2047 — round recessed fitting for a GU10 lamp
OPTONICA 2047 is a recessed ceiling fitting for one replaceable GU10 lamp rated up to 35 W. The white finish suits living spaces, corridors and other dry indoor areas. Select the lamp separately to obtain the light colour and brightness needed for the room.
Housing and dimensions
Housing material: aluminium alloy and polycarbonate (PC). The manufacturer's product page specifies Ø80 × 36 mm and a net weight of 63 g. The outside diameter is not the ceiling cut-out size. Check the actual fitting against the manufacturer's drawing in the gallery before cutting the ceiling.
Choosing a lamp
Lamp not included; there is no integrated LED light source. Light output, colour temperature and beam angle depend on the chosen GU10 lamp. Dimming requires a compatible dimmable lamp and controller; the fitting itself does not contain a dimmer.
Installation and environment
IP20 — dry indoor use. The 36 mm housing height is not the total installation clearance: allow additional room for the lamp, holder and wiring. Follow the installation instructions for the supply connection and clearances, and disconnect power before installation. Stated manufacturer's warranty: 2 years.
OPTONICA 2047 — manufacturer specifications and documentation
GU10 lamp option
Available separately: Optonica 1769 — GU10, 5 W, 2700 K (Ø50 × 57 mm, 400 lm, 110°). This is a non-dimmable GU10 lamp for a 230 V mains supply, not a 12 V MR16 lamp. Allow ceiling space for the 57 mm lamp, holder and wiring; body height is not total installation clearance. The lamp is not included with the fitting.
Ceiling cut-out
Required ceiling opening: Ø70 mm. This is the cut-out diameter, not the outside trim diameter. Check the drawing and fixing positions of the actual fitting before cutting.
