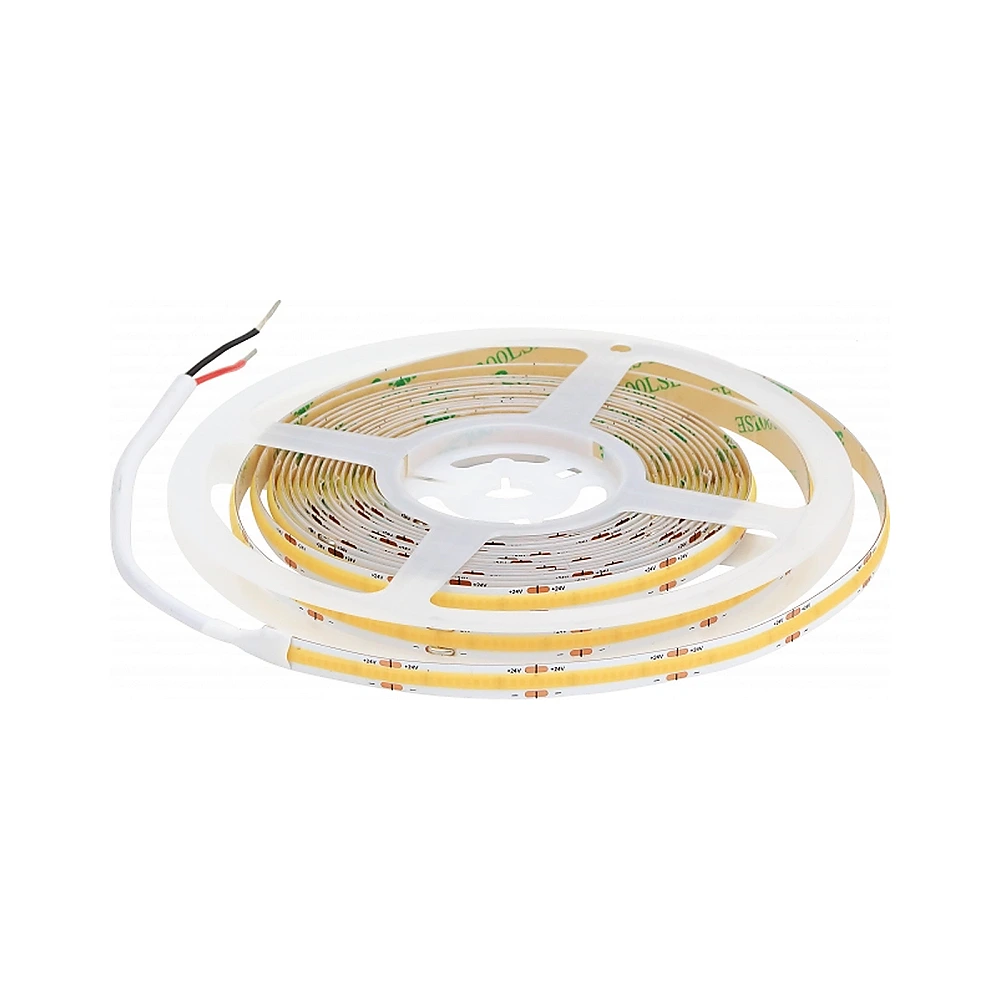

COB LED strip 24V 10W/m 900lm/m 3000K IP20, 1 m (Optonica 4943)
The product is in stock up to the available quantity.
Delivery to your address is counted from dispatch; for products on order, add it to the sourcing time. The carrier time is shown with the delivery method at checkout.
Quantities above available stock require sourcing of the remaining units. Check the information in your cart.
For collection, wait for confirmation that your order is ready.
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Type of diodes COB LED
- Number of diodes 320 LEDs/m
- Wattage 10 W/m
- Luminous flux 900 lm/m
- Luminous efficacy (lm/W) 90 lm/W
- Colour temperature (CCT) 3000 K
- Light colour Warm white
- Beam angle 180°
- Colour rendering index (CRI/Ra) Ra ≥90
- Voltage 24 V DC
- Dimmable Yes
- Energy class F
- Energy consumption (kWh/1000 h) 10 kWh/1000 h
- Switching cycles 25,000
- Start-up time 0.1 s
- Warranty period 2 years
- SKU 4943
- EAN 3800156649439
- Light source COB LED strip
- Included Yes
- IP rating IP20
- Voltage 24 V DC
- Material Flex PCB
- Length 1 m sales unit; 5 m manufacturer reel
- Width 8 mm
- Height 2 mm
- Weight 10 g/m
- Warranty period 2 years
- Housing material Flex PCB
Product Description
Optonica 4943 COB LED strip is a professional 24 V linear-lighting strip with 320 COB LEDs per metre. It produces a smooth, continuous line of light without clearly visible LED points, delivers 900 lm/m and provides warm white 3000K light. The product is stocked and sold by the 1 metre; the manufacturer's full reel length is 5 m.
Key benefits
- COB technology with 320 LEDs/m creates a uniform line of light.
- 10 W/m power and 900 lm/m output provide an efficacy of 90 lm/W.
- High colour rendering of Ra ≥90 reproduces interior colours more accurately.
- The 8 mm width fits many standard aluminium LED profiles.
- The strip can be dimmed using a compatible 24 V dimmer or controller.
Applications
Warm-white 3000 K light creates a cosier atmosphere in living spaces, furniture and decorative coves. Suitable for kitchen worktops, furniture, shelves, ceiling coves, showcases, offices and other dry indoor linear-lighting projects. The IP20 rating does not protect against direct moisture or water exposure.
Selection and installation
A stabilised 24 V DC power supply is required. Calculate the total load by multiplying the installed length by 10 W/m and allow an appropriate power reserve. For reliable long-term operation, install the strip in an aluminium profile to dissipate heat and protect the COB surface. The cutting interval is 50 mm. Disconnect power before cutting or wiring and observe the correct polarity.
Package and sales unit
The displayed price is for 1 m of LED strip. The manufacturer's reel contains 5 m; when ordering several metres, the availability of one continuous length depends on the remaining reel length. Power supply, profile, diffuser, dimmer and connectors are not included.
Technical summary
- Model: 4943
- Colour temperature: 3000K
- Voltage: DC 24 V
- Power: 10 W/m
- Luminous flux: 900 lm/m
- LED density: 320 LEDs/m
- CRI: Ra ≥90
- Beam angle: 180°
- Width / thickness: 8 × 2 mm
- Energy class: F
- Warranty: 2 years
