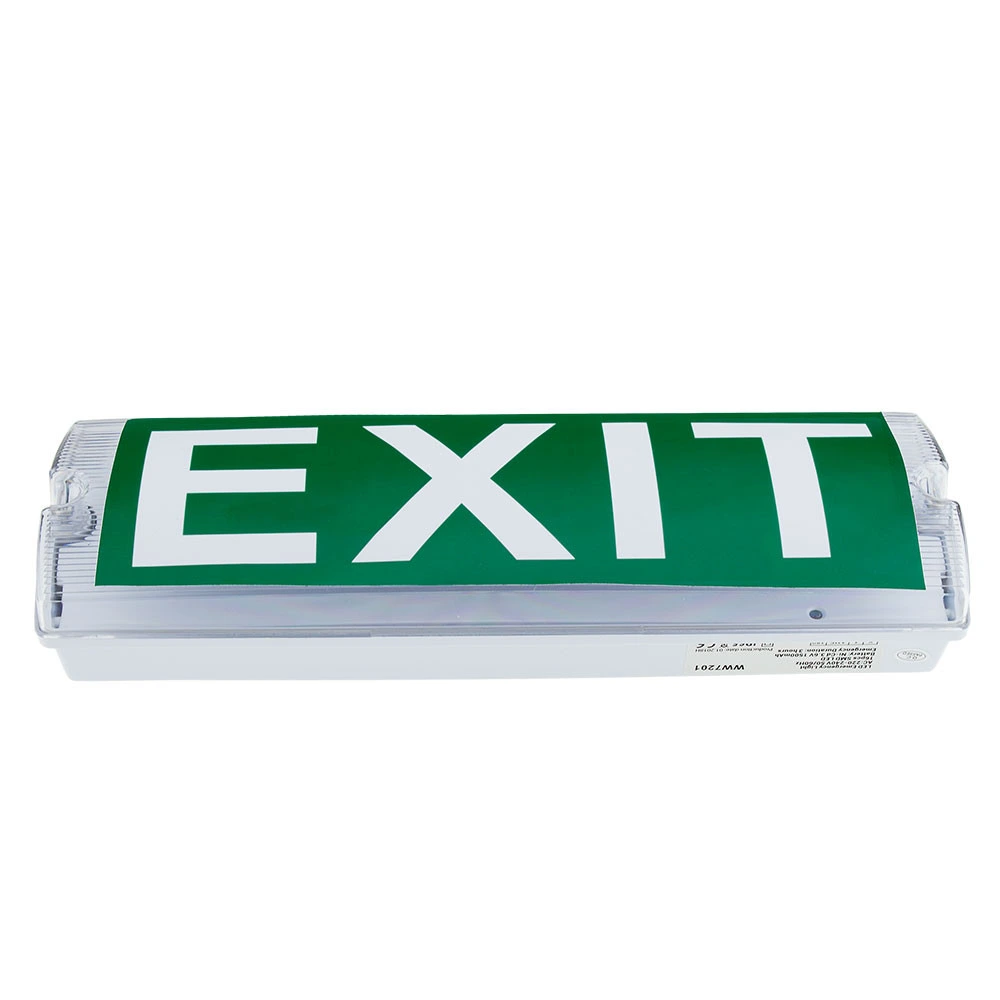

Surface LED emergency exit light, 4W, 140lm, IP65, 3h (Optonica 7201)

38.95€

Ex Tax: 32.19€

Enerģijas klase:

Datu lapa

Brand: OPTONICA

Product Code: 7201

Availability: Delivery time ~1 week

Viewed 107 times

Qty

Add to wishlist
Add to compare

Tags: Surface LED emergency exit light 4W 140lm IP65 3h (Optonica 7201)

Categories Cart Account Search Recent View Go to Top

Description

Item specifics

Voltage AC 220–240V
Housing material Aluminium + PC
Dimensions (L×W×H) 355 × 115 × 60 mm
Mounting type Surface mounted
IP rating IP65
Weight 605 g
Warranty 2 years
Wattage 4W
Luminous flux 140 lm
Energy class G
Rated Lifetime (hours) 25,000 h

Product Description

OPTONICA 7201 is a surface-mounted LED emergency exit light designed to illuminate escape routes, exits, stairways, corridors and other safety areas when the normal power supply fails. Its integrated 4W LED source delivers 140 lm and continues operating automatically from the 3.6V / 1500mAh Ni-Cd rechargeable battery.

Up to 3 hours of emergency operation

The luminaire is permanently connected to the AC 220–240V mains. If the supply fails, it switches automatically to emergency mode and can operate for up to 3 hours. It is suitable for shops, offices, warehouses, hotels, public buildings and technical areas.

Technical data

Power: 4W
Luminous flux: 140 lm
Supply: AC 220–240V, 50–60Hz
Battery: 3.6V / 1500mAh Ni-Cd
Emergency duration: 3 hours
IP rating: IP65
Material: Aluminium + PC
Installation: Surface mounted
Dimensions: 355 × 115 × 60 mm
Net weight: 605 g
Lifetime: 25,000 hours
Operating temperature: −20°C to +40°C
Warranty: 2 years

Installation and testing

Connection to the 230V mains must be carried out by a qualified person with the supply isolated. Fully charge the battery before first use and test the emergency function and battery duration periodically.
