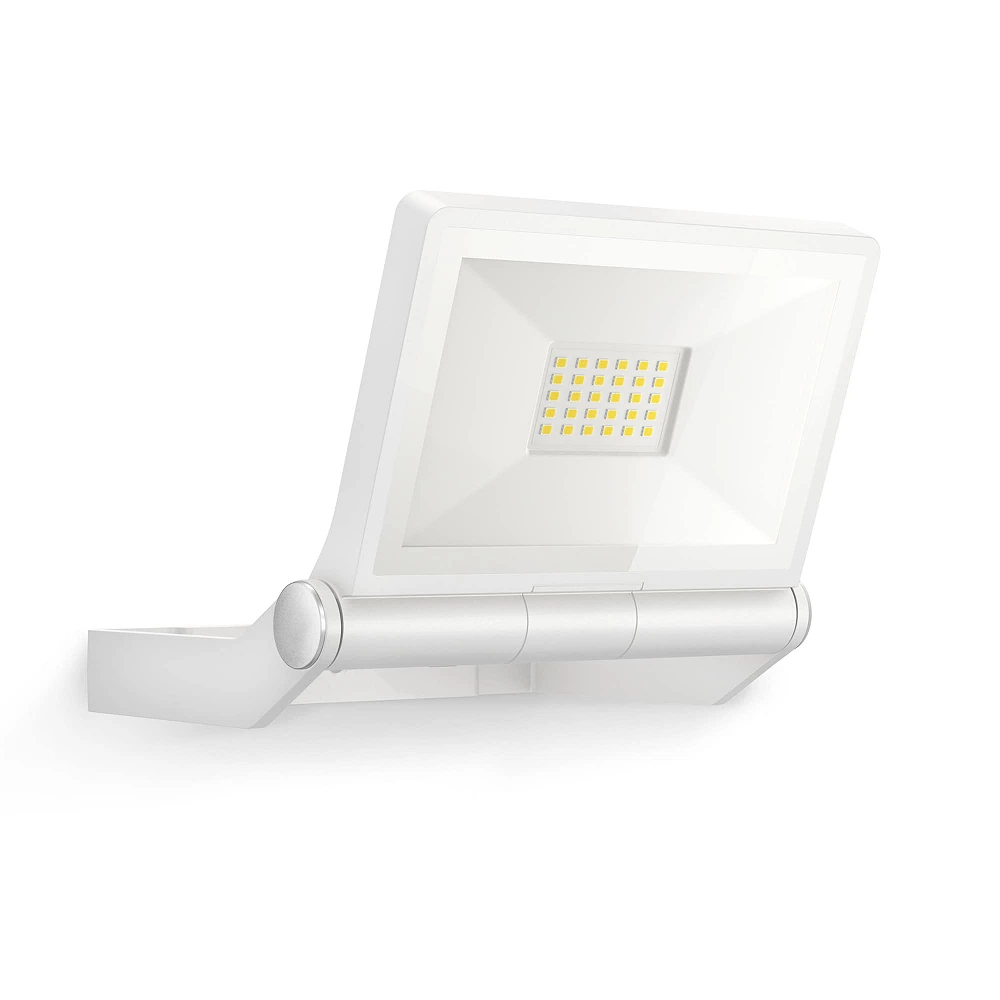

STEINEL XLED ONE outdoor LED floodlight, without sensor, 17.8 W, 2050 lm, 3000 K, white — 065218
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Light source type Integrated STEINEL LED system
- Replaceable light source No — integrated LED system is not replaceable
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour White
- Housing material Aluminium
- Light direction Adjustable by tilting LED panel
- Adjustable light direction Manual mechanical adjustment
- Diffuser material Transparent glass
- Dimensions (L×W×H) 173 × 229 × 195 mm (depth × width × height)
- Mounting type Wall or ceiling; surface mounting
- Adjustable head Yes — tilting LED panel
- Tilt angle (°) 180° vertically — LED panel
- IP rating IP44
- IK rating IK03
- Protection class (electrical) Class I — protective earth (PE) required
- Operating temperature (Ta) −20…+40 °C
- Cable length 1 m — per manufacturer drawing
- Control method External wall switch or separate controller
- Dimming method Not dimmable
- Remote control included No remote control included
- Light distribution Broad floodlight distribution
- Basic light No basic-light function
- Driver included Yes — built-in control gear
- Replaceable driver No — control gear is not replaceable
- Weight 1110 g — manufacturer net weight
- Warranty 3 years — manufacturer warranty subject to its terms
- Accessories Luminaire with LED, mounting accessories, instructions
- Wattage 17.8 W — total luminaire input at full output
- Luminous flux 2050 lm — complete luminaire
- Luminous efficacy (lm/W) 115 lm/W
- Colour temperature (CCT) 3000 K — warm white
- Colour rendering index (CRI/Ra) CRI / Ra 80
- Colour consistency (SDCM) SDCM 3
- Power factor (PF) 0.7
- Dimmable No
- Smart control No Bluetooth or smart control
- Energy class E — LED light source contained in the luminaire
- Energy consumption (kWh/1000 h) 18 kWh/1000 h — light-source energy label
- Rated Lifetime (hours) Up to 50,000 h; L70B50 >36,000 h at 25°C
- SKU 065218
- EAN 4007841065218
- Included Yes — integrated STEINEL LED system, 3000 K
Product Description
STEINEL XLED ONE in white is an outdoor LED floodlight for a courtyard, driveway, garage or the area around a home. This version has no motion sensor: operate it from an external wall switch or a separately installed control arrangement. Mount it on a wall or ceiling and aim the adjustable panel at the area you want to illuminate.
2050 lm of warm white light with adjustable direction
The integrated STEINEL LED system delivers 2050 lm at 3000 K warm white. Total luminaire input at full output is 17.8 W, with an efficacy of 115 lm/W. Its broad light distribution illuminates the surroundings; the actual lit area depends on mounting height, aiming and distance.
The LED panel tilts 180° vertically to direct the light towards a path, courtyard or another selected area. CRI 80 describes colour rendering, while SDCM 3 describes colour consistency. This model has no brightness adjustment or dimmed basic-light function.
Without a sensor — external switch control
This floodlight has no motion sensor or automatic twilight control. It illuminates when powered through an external switch or a suitable separate controller. This suits locations where manual switching or an existing control arrangement is preferred. It has no Bluetooth or built-in interconnection control between lights.
Aluminium housing, glass cover and IP44 protection
The aluminium housing and transparent glass cover are intended for outdoor use in the mounting position specified by STEINEL. IP44 means protection against splashing water and solid foreign objects larger than 1 mm; IK03 identifies the tested impact-resistance level. The operating temperature range is −20 to +40°C.
Supply: 220–240 V AC, 50–60 Hz. Electrical Class I requires protective earth (PE). Dimensions: 173 × 229 × 195 mm (depth × width × height). The supplied connection cable is 1 m long. Manufacturer net weight: 1110 g. Follow the manual diagrams for wall or ceiling installation and have the mains connection made by a qualified installer.
LEDs are included — no separate bulb is needed
The integrated STEINEL LED system is already fitted. The LED light source and control gear are not replaceable. STEINEL specifies LED life of up to 50,000 hours and a separate L70B50 value above 36,000 hours at 25°C. This describes lumen maintenance under defined test conditions, rather than guaranteeing the same operating life in every installation. Passive cooling carries heat away from the LEDs without a fan.
The luminaire contains an energy-class E light source. Its manufacturer energy label states 18 kWh/1000 h, EPREL 1030083. These figures apply to the contained light source; the 17.8 W figure above describes the complete luminaire input.
Package contents and care
Included: luminaire with LED system, mounting accessories and instructions. Clean with a damp cloth without detergents. A 3-year manufacturer warranty applies subject to its terms. Download the drilling-template PDF and print it at actual 100% size.
