Item specifics
- Warranty 3 Years
- Wattage RC: 5-300W RL: 5-150W
- Voltage 220–240 V AC, 50 Hz
- Dimensions (H×W×L) Manufacturer's technical table (L×W×H): 76 × 76 × 51 mm; outer frame dimensions in the manual drawing: 84 × 84 mm
- IP rating IP20
Product Description

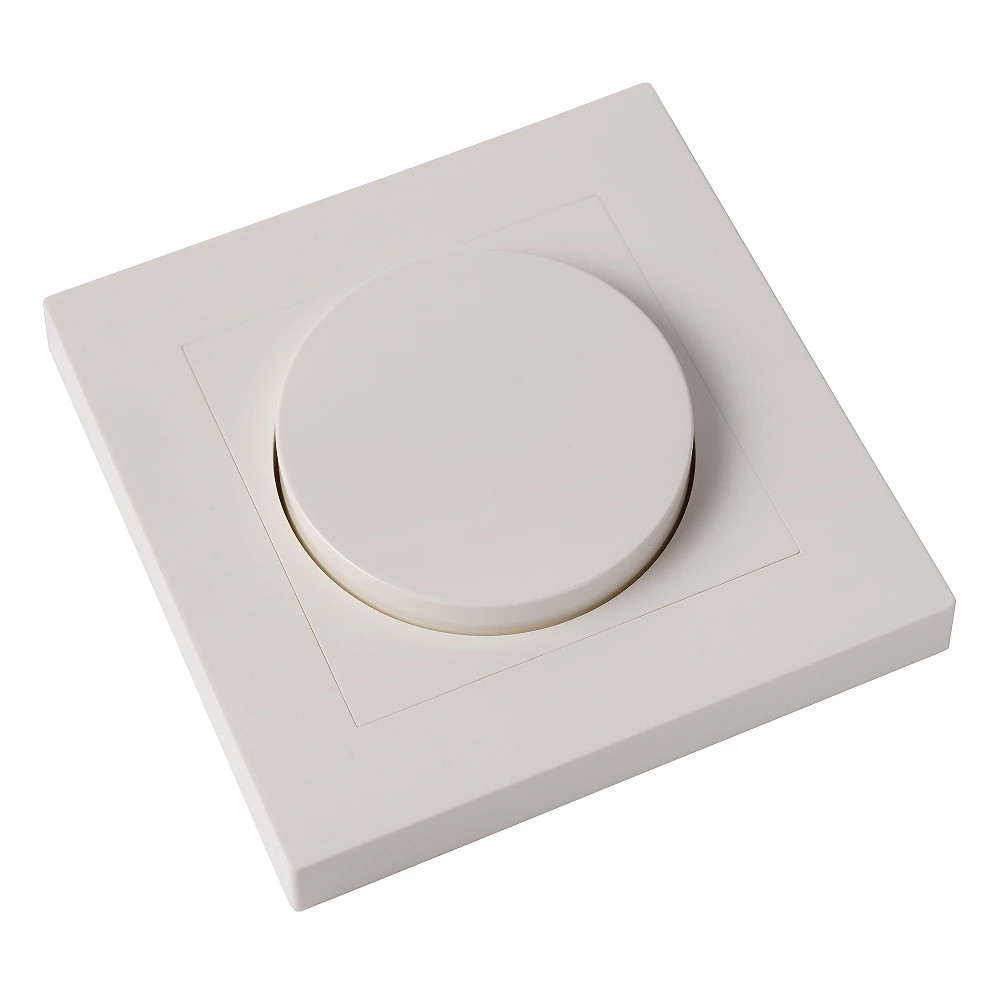

Lucide RECESSED WALL DIMMER NL is a recessed LED dimmer for adjusting light brightness indoors. It comes with a white cover frame. Use it with compatible dimmable light sources and select the control mode required by those sources.
Control and compatibility
The dimmer has two selectable modes: RL (leading edge) for a 5–150 W load and RC (trailing edge) for a 5–300 W load. These ranges refer to the combined load of the connected light sources. Choose the mode to suit the bulb or LED driver and test compatibility with the intended lighting before final installation. A trim screw allows the dimming range to be adjusted.
Specifications at a glance
- Type: recessed LED dimmer
- RL mode load: 5–150 W
- RC mode load: 5–300 W
- Supply: 220–240 V AC, 50 Hz
- IP rating: IP20, for indoor use
- Colour: white
- Dimensions in the manufacturer's technical table (L×W×H): 76 × 76 × 51 mm
- Outer frame dimensions in the manual drawing: 84 × 84 mm
- Weight: 90 g
- Warranty: 3 years
- SKU: 50000/00/31
- EAN: 5411212931252
Installation
The dimmer is designed for a recessed wall box with screw fixing points. Check the box and selected cover frame against the Lucide instructions before installation. A qualified electrician should install it with the power isolated, following the manufacturer's connection instructions.
