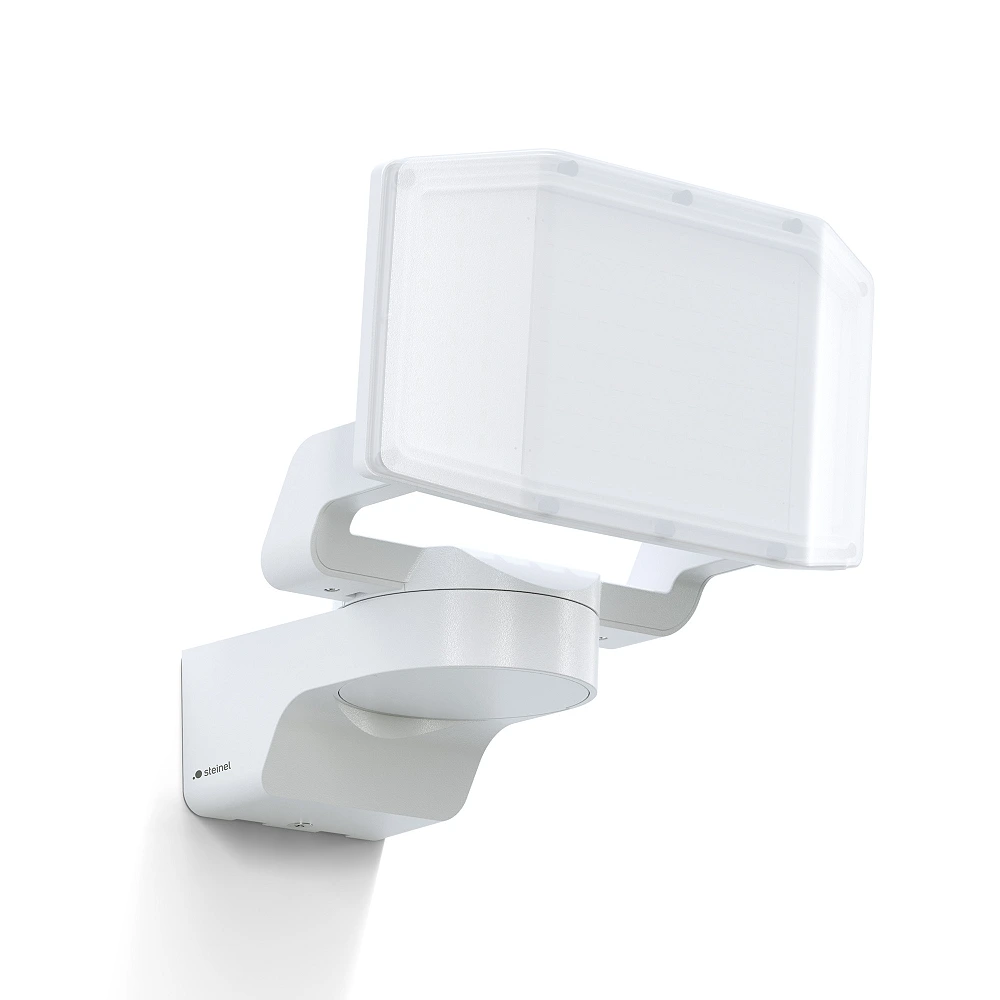

STEINEL XLED PRO Expanse outdoor LED floodlight without sensor, 13.6 W, 1642 lm, 3000 K, IP54, white — 091231
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Light source type Integrated LED system with three light surfaces
- Replaceable light source No — the integrated LED light source cannot be replaced
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour White
- Housing material Polycarbonate (PC)
- Adjustable light direction Manual swivelling, tilting and locking of the floodlight head
- Dimensions (L×W×H) 195 × 195 × 174 mm (depth × width × height)
- Mounting type Wall mounting; surface-mounted or concealed supply cable; corner installation requires separately purchased bracket 055615
- Adjustable head Yes — the head with three light surfaces can be swivelled, tilted and locked
- Rotation angle (°) LED head 180° horizontally
- Tilt angle (°) LED head 180° vertically
- IP rating IP54
- IK rating IK03
- Protection class (electrical) Class II — double or reinforced insulation
- Operating temperature (Ta) −20…+40 °C
- Control method External wall switch or a compatible sensor-switched wired supply; no built-in sensor or Bluetooth
- Dimming method Not dimmable; an external dimmer must not be used
- Basic light No basic-light mode
- Soft light start No — no soft light start
- Driver included Yes — integrated LED control gear
- Replaceable driver No — the integrated LED control gear cannot be replaced
- Weight 520 g — net weight
- Warranty Manufacturer warranty: 5 years, subject to STEINEL warranty terms
- Accessories Luminaire with integrated LED and control gear, wall mount, cable seals; corner bracket 055615 is not included and is purchased separately
- Wattage 13.6 W — total luminaire input at full light output
- Luminous flux 1642 lm — total luminaire light output
- Luminous efficacy (lm/W) 121 lm/W — complete luminaire
- Colour temperature (CCT) 3000 K — warm white
- Colour rendering index (CRI/Ra) CRI / Ra 82; red colour rendering index R9 = 18
- Colour consistency (SDCM) SDCM 3 — initial colour consistency
- Power factor (PF) 0.8 — according to manufacturer instructions
- Dimmable No
- Energy class E — integrated light-source class
- Energy consumption (kWh/1000 h) 14 kWh/1000 h — light-source energy-label value
- Rated Lifetime (hours) L70B50 >60,000 h at 25°C
- SKU 091231
- EAN 4007841091231
- Included Yes — integrated LED light source; no separate bulb required
Product Description
The STEINEL XLED PRO Expanse is a Professional Line outdoor LED floodlight without sensor for courtyards, driveways, entrances and areas around buildings. Three LED light surfaces in one adjustable head provide broad panoramic illumination. It delivers 1642 lm of warm white 3000 K light with 13.6 W input. Housing colour: white; article number: 091231.
Wide illumination with adjustable direction
- Three light surfaces distribute light across the surrounding area. This also suits gardens, terraces, balconies and warehouse approaches.
- The LED head swivels through 180° horizontally and tilts through 180° vertically. It can be locked in the chosen position. The complete head with its three light surfaces is adjusted to direct illumination where it is needed.
- 1642 lm and 121 lm/W describe the output and efficacy of the complete fitting. Its 3000 K light has a warm white colour.
- CRI/Ra 82 describes colour rendering, R9 = 18 describes saturated red rendering and SDCM 3 indicates initial light-colour consistency.
Key technical specifications
| Wattage | 13.6 W — total luminaire input at full light output |
|---|---|
| Luminous flux | 1642 lm — total luminaire light output |
| Colour temperature (CCT) | 3000 K — warm white |
| Dimensions (L×W×H) | 195 × 195 × 174 mm (depth × width × height) |
| IP rating | IP54 |
| IK rating | IK03 |
| Weight | 520 g — net weight |
| Warranty | Manufacturer warranty: 5 years, subject to STEINEL warranty terms |
Without a sensor — use an external switch or sensor
This model has no built-in motion or twilight sensor. It lights up when power is supplied, for example through a wall switch. It also supports a wired sensor/slave connection: a compatible sensor-switched supply turns this floodlight on with other connected fittings. The electrician must follow the manufacturer wiring diagram and the control device's load limits.
There is no Bluetooth or app control. This fitting is not a wireless receiver for an SC version. Choose XLED PRO Expanse S for independent motion detection, or XLED PRO Expanse SC for a sensor combined with Bluetooth control.
The fitting cannot be dimmed and an external dimmer must not be used. Basic-light and soft-start modes are not provided.
Installation, protection and supplied components
The floodlight is designed for outdoor wall mounting and a 220–240 V, 50–60 Hz mains supply. The supply cable may be concealed or surface-mounted. IP54 provides protection against harmful dust ingress and splashing water. IK03 describes housing impact resistance; electrical protection class II means double or reinforced insulation. The manufacturer specifies a supply current of 80 mA. The housing is polycarbonate, with an operating temperature range of −20…+40°C.
The LED light source and control gear are integrated and included — no separate bulb is required. The package includes the wall mount and cable seals. Corner bracket 055615 is not included; it is purchased separately for installation on an outside corner. Disconnect the power before installation; a qualified professional should make the electrical connection and follow the manufacturer instructions. Adjust the head only once the fitting has cooled down.
Service life, energy and warranty
L70B50 >60,000 h at 25°C describes LED life: under these conditions, at least half of the LEDs are expected to retain at least 70% of their initial light output after the stated operating period. This is separate from the warranty period. The integrated light source has energy class E; the energy-label value is 14 kWh/1000 h. Actual energy use depends on operating duration.
The LED light source and control gear cannot be replaced. The manufacturer specifies a 5-year warranty subject to STEINEL warranty terms.
