STEINEL IS 345 PIR corridor motion detector, 360°, up to 23 × 6 m, white
Please confirm product availability and sourcing time to our Riga store with the shop.
Delivery to your address is counted from dispatch; for products on order, add it to the sourcing time. The carrier time is shown with the delivery method at checkout.
The selected option and quantity can affect availability and sourcing time. Check the information in your cart.
For collection, wait for confirmation that your order is ready.
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Sensor technology Passive infrared (PIR)
- Sensor type PIR
- Installation Ceiling; surface, concealed wiring or in-ceiling according to article; approved location depends on version
- Reach Tangential up to 23×6 m; radial up to 12×6 m
- Detection angle 360°
- Optimal mounting height Depends on article; COM1/PF/DALI APC reference 2.8 m
- Maximum mounting height 5 m
- Twilight setting COM1/PF/DALI APC reference: 2–1000 lx; bus versions depend on article/application
- Segment masking Yes
- Output COM1 reference only: resistive load up to 2000 W; DALI/KNX are control interfaces
- LED load (W) COM1 reference only: LED <2 W: 100 W; 2 W<LED<8 W: 300 W; LED>8 W: 600 W; max. 8 LEDs/fluorescent lamps; 176 µF; not DALI/KNX bus ratings
- Settings COM1/PF/DALI APC: potentiometers or compatible optional remote; KNX: ETS/bus/compatible remote; depends on article
- Voltage COM1/PF/DALI APC: 220–240 V AC, 50–60 Hz; KNX: KNX bus, never 230 V; DALI IPD: DALI bus
- Ambient temperature −20…+50 °C
- IP rating AP/surface: IP54; UP/concealed and in-ceiling: IP20; depends on article
- Dimensions (W×H×D) Examples: AP round Ø126×65 mm; AP square 95×95×65 mm; UP round Ø124×78 mm; UP square 94×94×78 mm; in-ceiling versions differ
- Warranty 5 years
- Colour / RAL White / RAL 9003
- Time setting COM1/PF/DALI APC reference: 5 s–15 min; KNX/bus versions depend on application
Product Description
STEINEL IS 345 is a PIR motion-detector series for lighting control in corridors, passageways and elongated rooms. Its corridor-shaped detection area follows the route people walk. White round and square housings provide a choice of appearance.
Corridor detection
360° PIR detection covers up to 23 × 6 m tangentially and 12 × 6 m radially. The detector is intended for ceiling installation at 2.5–5 m. Individual detection segments can be masked to adapt the area to the room. Actual performance depends on installation height, direction of movement and surrounding obstacles.
Select the interface for the system
COM1 switches lighting through a relay; PF provides a potential-free switching contact. DALI versions work with compatible DALI lighting control, while KNX versions connect to a KNX building-control system. A DALI application controller and a DALI input device are different versions. Their functions and wiring are determined by the complete manufacturer article number.
Power supply depends on the interface: COM1, PF and DALI application-controller versions use a 220–240 V mains supply; KNX versions are powered by the KNX bus. Never connect a KNX detector to 230 V mains. DALI input devices are powered by the DALI bus. COM1 switching-load limits do not apply to KNX or DALI bus control.
Housing and installation

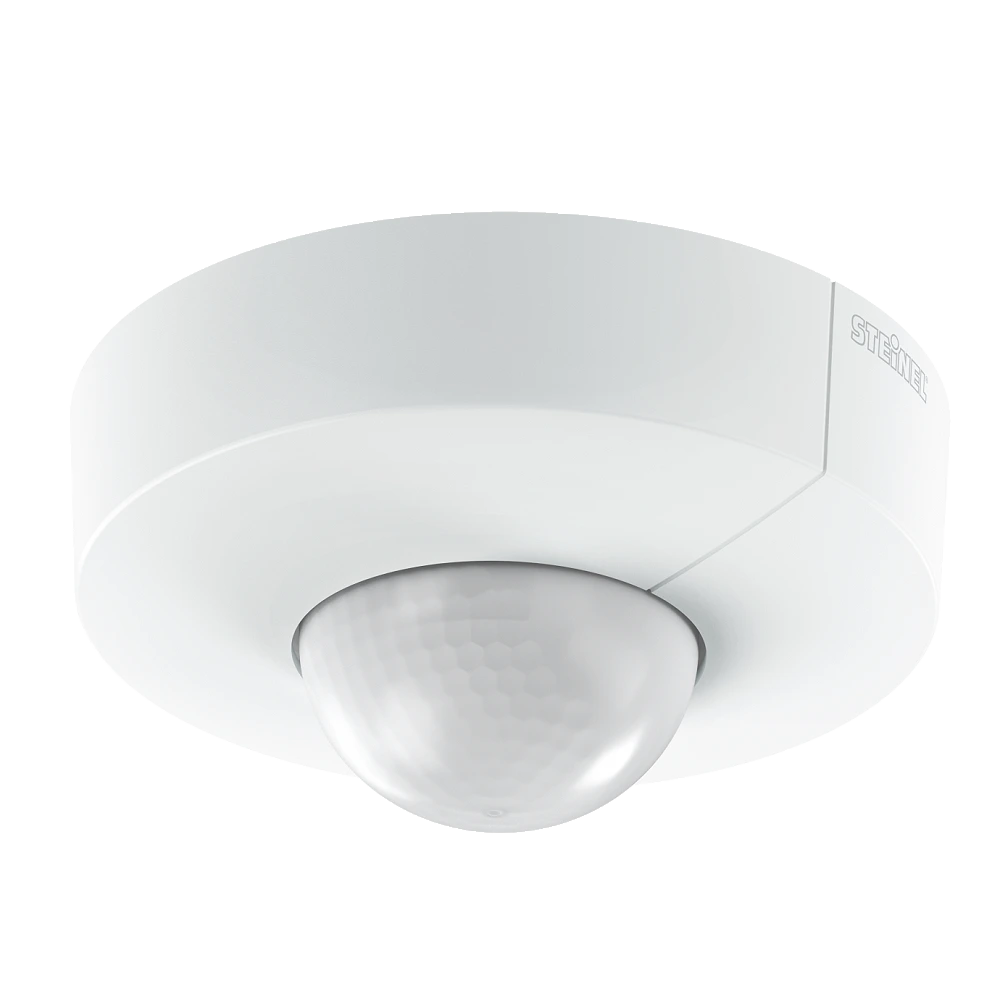

Housing shape does not determine the mounting type. The series includes surface-mounted, concealed-wiring and separate in-ceiling versions. Surface-mounted versions are rated IP54; concealed and in-ceiling versions are rated IP20. Check the mounting dimensions, approved location and protection rating against the exact article. The round housing shown in the product image does not establish the dimensions or electrical connection of other versions.
