Steinel

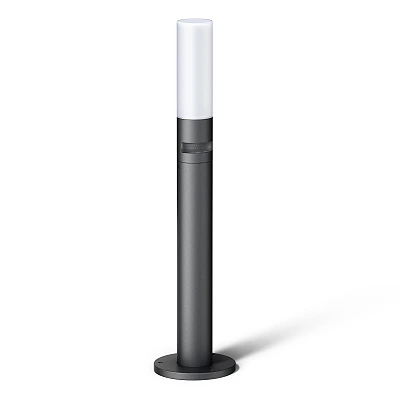

STEINEL GL 65 S LED garden bollard with sensor, 8.7 W, 575 lm, 3000 K, IP44, anthracite — 069476
189.90€Bez PVN: 156.94€

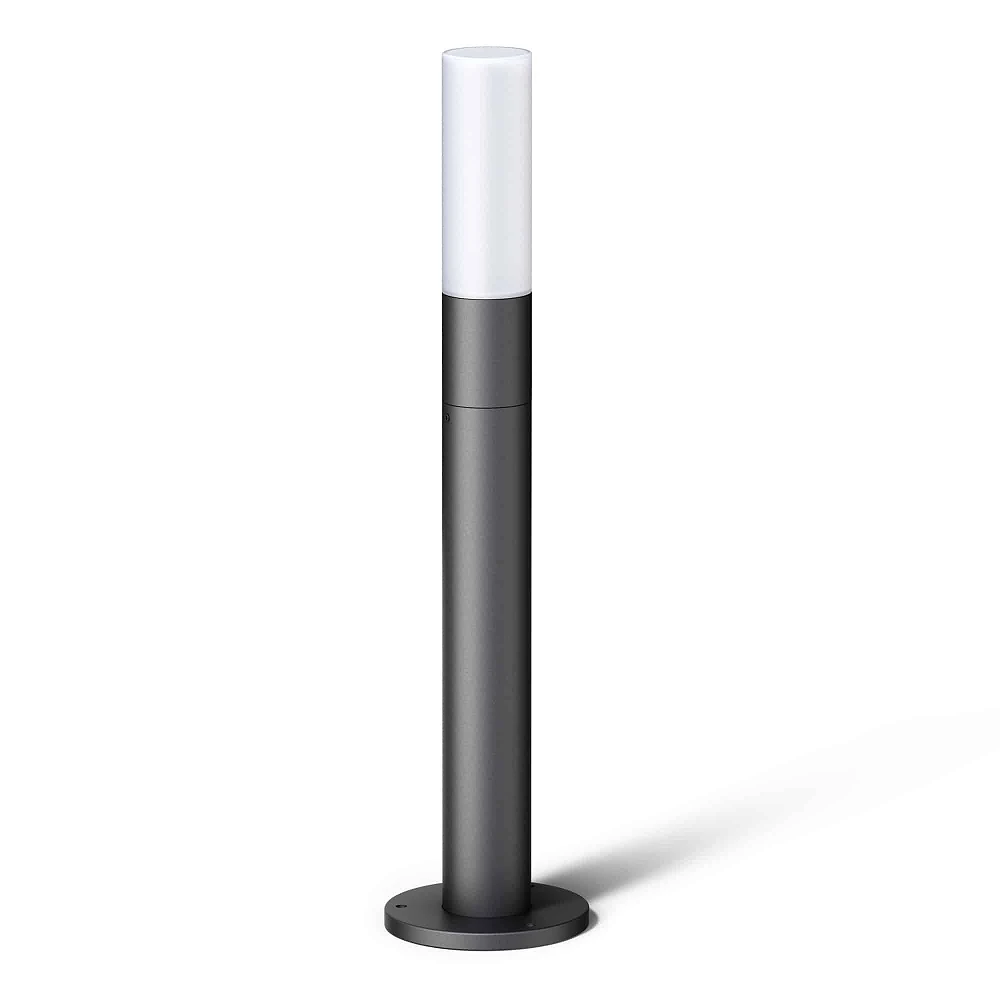

STEINEL GL 65 LED garden bollard without sensor, 8.5 W, 575 lm, 3000 K, IP44, anthracite — 069469
181.50€
Ex Tax: 150.00€
Enerģijas klase:
Viewed 3 times
Categories
Cart
Account
Search
Recent View
Go to Top
All Categories
×
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Shopping Cart
×
Your shopping cart is empty!
Search
×
Recent View Products
×
Item specifics
- Light source type Integrated LED
- Replaceable light source No — LED is not user-replaceable
- Voltage 220–240 V AC
- Housing colour Anthracite
- Housing material Aluminium
- Diffuser material Opal glass
- Dimensions (L×W×H) 180 × 180 × 770 mm; Ø180 mm
- Mounting type On a firm outdoor base; bollard luminaire
- IP rating IP44
- IK rating IK03
- Protection class (electrical) Class I — protective earth (PE) required
- Operating temperature (Ta) −20…+40 °C
- Control method External on/off switch
- Soft light start Yes — soft light start
- Driver included Yes — power supply built into the luminaire
- Weight 1948 g
- Warranty 3-year manufacturer warranty, subject to STEINEL terms
- Wattage 8.5 W
- Luminous flux 575 lm
- Luminous efficacy (lm/W) 68 lm/W
- Colour temperature (CCT) 3000 K
- Light colour Warm white
- Colour rendering index (CRI/Ra) Ra 80
- Colour consistency (SDCM) SDCM 6
- Mains frequency 50–60 Hz
- Dimmable No — not suitable for an external dimmer
- Energy class E — label for the built-in light source LS-0129
- Energy consumption (kWh/1000 h) 9 kWh/1000 h — light-source energy label
- Rated Lifetime (hours) >36 000 h (L70B50, 25 °C)
- SKU 069469
- EAN 4007841069469
Product Description
STEINEL GL 65 is a anthracite LED garden bollard without sensor for paths, gardens and driveways. Its integrated LED delivers 575 lm at 8.5 W, with a fixed 3000 K warm-white light colour. Article 069469; EAN 4007841069469.
Key specifications
| Version | Without motion sensor |
|---|---|
| Power / luminous flux | 8.5 W / 575 lm |
| Light colour | 3000 K — warm white |
| Dimensions | 770 mm high; Ø180 mm |
| Protection | IP44 / IK03 |
| Supply | 220–240 V AC, 50–60 Hz |
| Materials | Aluminium housing and opal-glass diffuser |
Control without a built-in sensor
This article has no motion sensor. Use an external switch or suitable external controller. Automatic motion and twilight control belongs to the separate GL 65 S version. Soft light start is provided, but the luminaire is not designed for an external dimmer. Basic light, motion timing and Nightmatic are features of the separate GL 65 S sensor model.
Light quality and service life
575 lm is the complete luminaire’s luminous flux; 68 lm/W is its efficacy. CRI / Ra 80 describes colour rendering. The opal glass spreads the light evenly. LED cooling uses the passive Passive Thermo Control system.
The manufacturer specifies more than 36,000 h (L70B50, 25°C) for the LED. This is a statistical lumen-maintenance figure, not a fixed time at which the LED stops working. These figures are not warranty periods.
The built-in LS-0129 light source carries energy class E and a label value of 9 kWh/1000 h; EPREL reference 1236568. The energy label applies to the light source. The LED is included and is not a user-replaceable bulb.
Installation and package contents
Mount the bollard on a firm outdoor base beside a path or in a courtyard. Height is 770 mm and maximum base/luminaire diameter is 180 mm. The aluminium body and opal glass provide even, soft light. Supply: 220–240 V, 50–60 Hz; Class I requires protective earth (PE).
IP44 protects against solid objects larger than 1 mm and splashing water. The light must not be submerged or installed where water collects. IK03 indicates impact resistance; operating range is −20…+40°C.
The package contains one bollard luminaire with integrated LED and mounting accessories. No separate bulb is required. Prepare a suitable base and mains connection for the installation site.
3-year manufacturer warranty, subject to STEINEL terms. Mains connection must be carried out by a qualified electrician. Manufacturer: STEINEL GmbH, Dieselstraße 80–84, 33442 Herzebrock-Clarholz, Germany; product@steinel.de.
The gallery contains manufacturer product photos, detail views and application illustrations. Other lights shown in series photographs are not included with this article.
Initial light-colour consistency: SDCM 6.
Other versions in this family
Manufacturer documents and video
- Data sheet (PDF) (EN)
- Operating and installation manual (PDF, multilingual)
- Wiring diagrams (PDF)
- Dimension drawing (PDF)
- Tender specification (DOCX) (EN)
- EU declaration of conformity (PDF)
- Built-in light source energy label (PDF)
- Manufacturer warranty terms (PDF, German)
- Mounting drilling template (PDF; print at actual size)
- Manufacturer series video
- STEINEL product page
