Item specifics
- Light source type One E27 bulb, sold separately
- Replaceable light source Yes — the E27 bulb can be replaced by the user
- Number of bulbs 1
- Max. power E27: max. 60 W incandescent or max. 20 W LED / energy-saving bulb
- Voltage 230–240 V AC, 50 Hz
- Housing colour Anthracite
- Housing material Aluminium
- Diffuser material Opal plastic
- Dimensions (L×W×H) 108 × 155 × 272 mm (depth × width × height)
- Mounting type Outdoor wall mounting
- IP rating IP44
- IK rating IK03
- Protection class (electrical) II — double or reinforced insulation
- Operating temperature (Ta) −20 to +40 °C
- Control method External on/off switch; no sensor
- Basic light None
- Soft light start No
- Weight 659 g (net)
- Warranty 3-year manufacturer warranty under its terms
- SKU 069155
- EAN 4007841069155
- Socket E27
- Included No — sold separately
Product Description

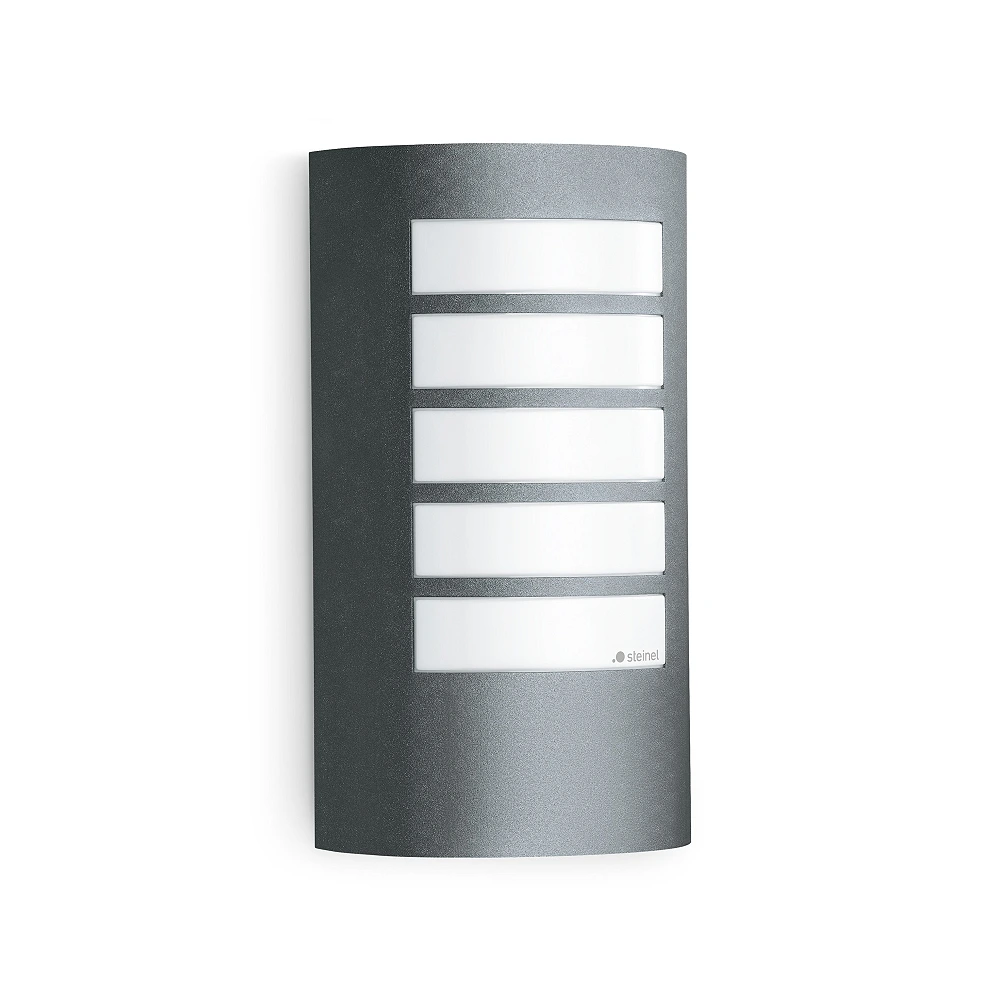

STEINEL L 12 is an anthracite outdoor wall light with an E27 socket and opal plastic diffuser. It suits entrances, terraces, balconies and paths alongside a building. This version has no sensor; operate it with an external wall switch or suitable separate lighting control.
Choose your own bulb and light colour
One E27 bulb is sold separately and can be replaced by the user. The manufacturer permits an incandescent bulb up to 60 W or an LED / energy-saving bulb up to 20 W. For an LED bulb, observe its actual wattage rather than the equivalent incandescent wattage printed on its packaging.
Luminous flux, colour temperature and colour rendering depend on the chosen bulb. You can therefore adapt brightness and light colour to an entrance or seating area. The fitting without a bulb has no fixed lumen or kelvin value, and replacing the bulb does not require replacing the luminaire.
Simple operation with an external switch
L 12 has no built-in motion sensor or twilight sensor. It suits locations where you prefer manual switching or already have separate switching control. This model has no Bluetooth. For the same design with automatic motion detection, choose the L 12 S version from this family.
Housing for an outdoor wall
The aluminium housing is combined with a UV-resistant opal plastic diffuser. IP44 provides protection against water splashes and solid objects of at least 1 mm, useful for a light mounted on an outdoor wall. IK03 describes tested resistance to mechanical impact.
Dimensions, installation and additional information
Dimensions and connection
Dimensions 108 × 155 × 272 mm (depth × width × height), net weight 659 g. Supply 230–240 V AC, 50 Hz. Electrical protection class II means double or reinforced insulation; mount on a wall following the instructions for this exact model. The supply lead can enter from the wall or run along the wall surface. Operating temperature −20 to +40 °C.
Package contents and care
One luminaire, mounting accessories and instructions. The E27 bulb is not included. Clean with a soft, slightly damp cloth without aggressive cleaning agents. 3-year manufacturer warranty under its terms.
Manufacturer documents and drawings
- Technical datasheet (DE, PDF)
- Manufacturer warranty conditions (DE, PDF)
- Installation and operating manual (LV/EN/DE, PDF)
- Dimension drawing (DE, PDF)
- A3 mounting drilling template (PDF)
- Tender specification (DE, DOCX)
- EU declaration of conformity (EN/DE, PDF)
- Quick start guide (EN/DE, PDF)
- Technical datasheet (EN, PDF)
- Dimension drawing (EN, PDF)
- Tender specification (EN, DOCX)
- Circuit diagram (DE, PDF)
- Circuit diagram (EN, PDF)
