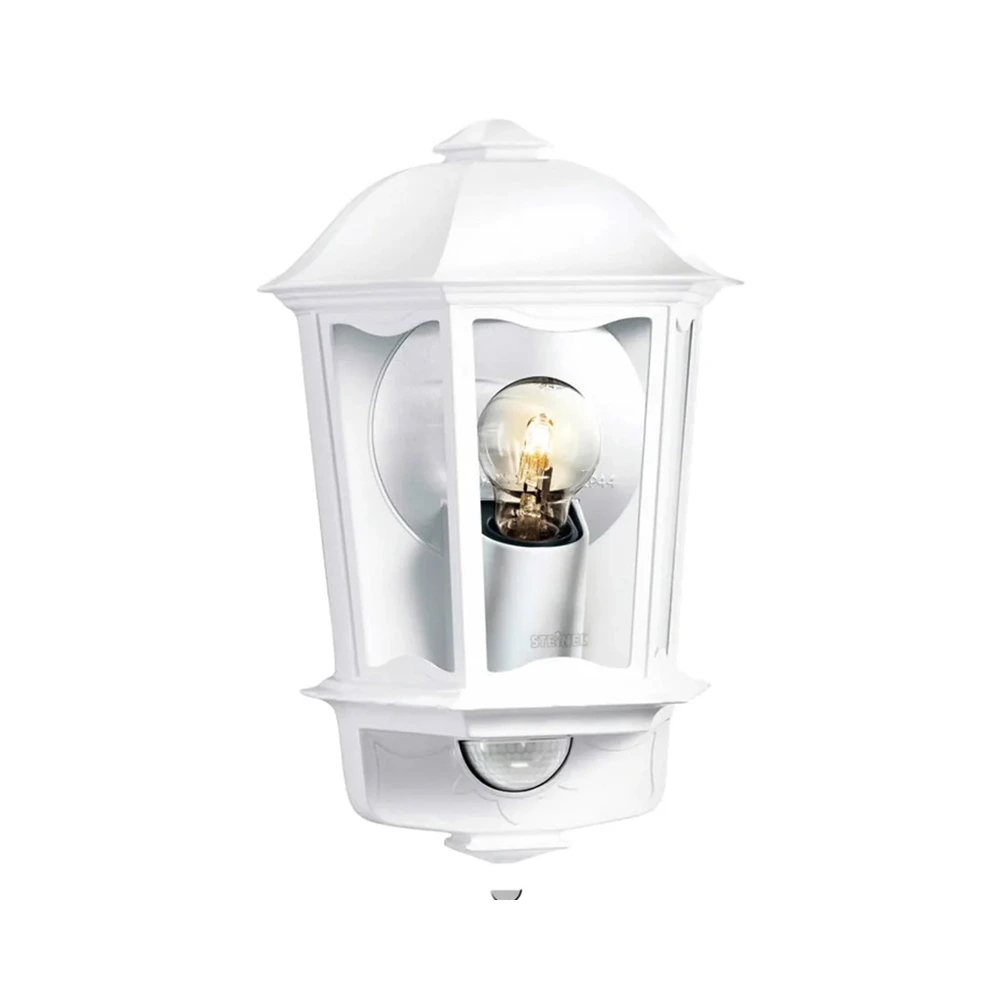

L 190 S outdoor sensor wall light, white, 1×E27, IP44 (Steinel)

124.95€

Ex Tax: 103.26€

Brand: Steinel

Product Code: 644512

Availability: In Stock

Viewed 91 times

Qty

Add to wishlist
Add to compare

Tags: Steinel 644512 L 190 S white outdoor sensor lantern E27 PIR 180° 12 m basic light IP44

Categories Cart Account Search Recent View Go to Top

Description

Item specifics

Number of bulbs 1
Max. power 100W
Voltage 230–240V, 50Hz
Housing colour White
Housing material Die-cast aluminium / transparent glass
Dimensions (L×W×H) 147 × 217 × 335 mm
Mounting type Wall mounting
IP rating IP44
Protection class (electrical) Class II
Basic light 0–50%
Soft light start Yes
Weight 1.612 kg
Warranty 3 years
Sensor type PIR infrared
Reach radial 5 m / tangential 12 m
Detection angle 180°
Twilight setting 2–200 lx
Manual override Selectable, 4 h
Soft light start Yes
Time setting 5 s–15 min

Product Description

Steinel L 190 S combines the character of a traditional outdoor lantern with modern automatic lighting control. The richly detailed white die-cast aluminium housing and clear glass panels suit classic façades, entrances and covered terraces, while the integrated infrared sensor ensures that light is available exactly when it is needed.

Key advantages

Classic, durable construction: ornamented die-cast aluminium body with transparent glass panels.
Automatic light: 180° infrared sensor with up to 12 m tangential and 5 m radial reach.
Comfort functions: adjustable 0–50% basic light, soft light start and selectable 4-hour continuous light.
Replaceable E27 lamp: choose the required light colour, brightness and decorative bulb shape.
Outdoor-ready: IP44 protection, class II and operation from −20 to +40 °C.

Design and application

The white lantern-style design is ideal for front doors, façades, courtyards, terraces, balconies and paths around the building. Clear glass leaves the bulb visible, so a decorative filament LED lamp can become part of the design. The basic-light function can keep the luminaire gently illuminated after dark and raise it to full brightness when motion is detected.

Sensor and operating settings

Detection angle: 180°
Reach: up to 12 m tangential / 5 m radial
Twilight threshold: 2–200 lx
Time setting: 5 seconds to 15 minutes
Basic light: adjustable from 0 to 50%
Continuous light: selectable for 4 hours
Optimum mounting height: approximately 2 m

Technical data

Article: 644512
Socket: E27
Maximum load: 100 W
Dimensions: 147 × 217 × 335 mm
Material: die-cast aluminium and transparent glass
Supply: 230–240 V, 50 Hz
Weight: 1.612 kg
Manufacturer warranty: 3 years

Installation notes

The luminaire is intended for vertical surface mounting on an outdoor wall. The E27 bulb is not included. For lower power consumption and reduced heat, a suitable LED bulb is recommended; the bulb must fit safely inside the glass enclosure. Installation on the 230 V mains must be carried out with the circuit disconnected.
