Steinel
STEINEL L 830 SC Cubo outdoor wall sensor light, Bluetooth, 9.1 W, 493 lm, 3000 K, anthracite — 055493
184.50€Bez PVN: 152.48€

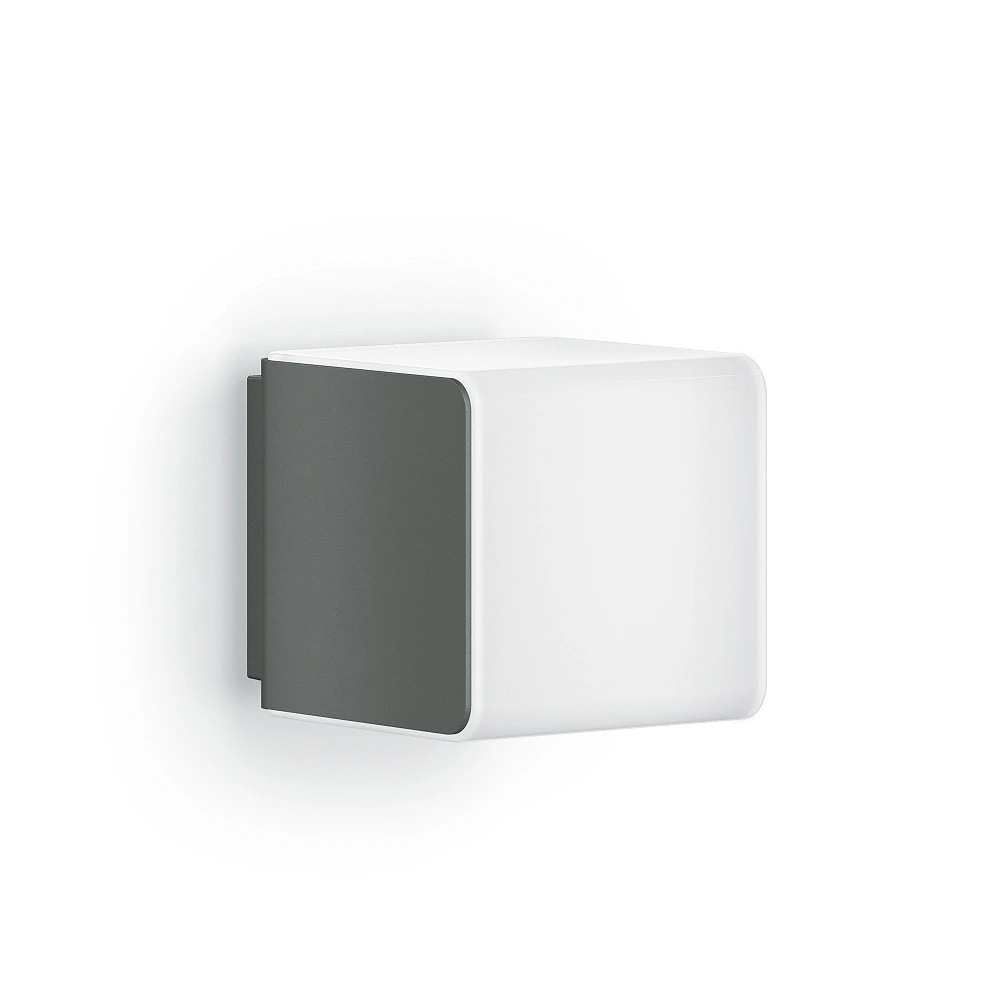

STEINEL L 830 C Cubo outdoor wall light without sensor, Bluetooth, 9.1 W, 493 lm, 3000 K, anthracite — 079253
151.00€
Ex Tax: 124.79€
Enerģijas klase:
Viewed 5 times
Categories
Cart
Account
Search
Recent View
Go to Top
All Categories
×
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Shopping Cart
×
Your shopping cart is empty!
Search
×
Recent View Products
×
Item specifics
- Light source type Integrated STEINEL LED system
- Replaceable light source No — the integrated LED light source cannot be replaced
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour Anthracite
- Housing material UV-resistant plastic
- Light direction Upwards and downwards — Up & Down
- Diffuser material Opal plastic
- Diffuser colour Opal white
- Dimensions (L×W×H) 132 × 110 × 110 mm (depth × width × height)
- Mounting type Outdoor wall mounting; surface-mounted supply cable
- IP rating IP44 — protection against solid objects of 1 mm or larger and splashing water
- IK rating IK03 — enclosure impact-resistance rating
- Protection class (electrical) Class II — double or reinforced insulation
- Operating temperature (Ta) −20…+40°C
- Control method STEINEL Connect app, Bluetooth Mesh groups, lighting scenes and schedules; no built-in motion or twilight sensor
- Dimming method Built-in Bluetooth control; main-light brightness 10–100% and off
- Remote control included No — remote control is not included
- Basic light Automatic basic light only in combination with a compatible Bluetooth sensor light
- Driver included Yes — integrated LED control gear
- Replaceable driver No — the integrated LED control gear cannot be replaced
- Weight 460 g — net weight
- Warranty Manufacturer warranty: 3 years, subject to STEINEL warranty terms
- Accessories Light with integrated LED and control gear; 3 screws, 3 wall plugs and 3 spacers; no remote control or house-number stickers
- Wattage 9.1 W — complete luminaire input at full brightness
- Luminous flux 493 lm — total luminaire light output
- Luminous efficacy (lm/W) 54 lm/W — complete luminaire
- Colour temperature (CCT) 3000 K — warm white
- Colour rendering index (CRI/Ra) CRI / Ra 82 — colour rendering index
- Colour consistency (SDCM) SDCM 3 — initial light-colour consistency
- Dimmable Yes — brightness is adjusted in the STEINEL app
- Control protocol Bluetooth Mesh; 2.4–2.48 GHz, 5 dBm / 3 mW
- Energy class F — integrated light-source energy class
- Energy consumption (kWh/1000 h) 10 kWh/1000 h — light-source energy-label value
- Rated Lifetime (hours) L70B50 >60,000 h at 25°C; 50,000 h at maximum operating temperature
- SKU 079253
- EAN 4007841079253
- Included Yes — integrated LED light source; no separate bulb required
Product Description
STEINEL L 830 C Cubo is a compact anthracite outdoor wall light without sensor with a cube-shaped housing and opal diffuser. Up & Down light emission highlights the façade above and below the fitting. It suits entrances, façades, terraces and circulation areas around a building. Its integrated LED system produces 493 lm at 9.1 W, with 3000 K warm-white light. Bluetooth Mesh and the STEINEL Connect app provide control and grouping with compatible lights. Article number: 079253.
Key technical specifications
| Power consumption | 9.1 W |
|---|---|
| Light output | 493 lm |
| Light colour | 3000 K — warm white |
| Colour rendering | CRI / Ra 82 |
| Control | Bluetooth Mesh and the STEINEL Connect app |
| Sensor | No built-in motion or twilight sensor |
| Protection | IP44, IK03, electrical protection class II |
| Dimensions | 132 × 110 × 110 mm — depth × width × height |
| Net weight | 460 g |
| Warranty | 3 years, subject to manufacturer warranty terms |
C version: Bluetooth control without its own sensor
L 830 C has no built-in motion sensor or photocell. It can be controlled and dimmed in the app and included in a Bluetooth group. Automatic response to movement and sensor-controlled basic light require a compatible STEINEL Bluetooth sensor light in the group, such as L 830 SC.
This is useful for a row of matching wall lights: a sensor version detects people approaching at the chosen location, while the C version lights another part of the façade in response to the group command. The C light itself has no detection angle or reach. Motion, twilight and basic-light automation depend on the sensor selected for the group.
Lighting settings and grouping
- Adjustable main light: choose 10–100% brightness or switch the light off.
- Bluetooth Mesh: combine compatible lights into groups and control them from a smartphone or tablet.
- Scenes and schedules: configure lighting for everyday routines in the app.
- Continuous light: a permanent-light mode can be selected.
- Sensor-controlled basic light: available with a compatible Bluetooth sensor light; the C model has no photocell of its own.
The light still needs a mains supply: Bluetooth carries control signals, not electrical power. Brightness is adjusted through the light’s built-in app control.
Light quality and LED lifetime ratings
493 lm is the complete luminaire’s light output, while 54 lm/W is its luminous efficacy. 3000 K means warm-white light. CRI / Ra 82 describes colour rendering and SDCM 3 the initial consistency of the light colour. LEDs are cooled using the passive Passive Thermo Control system.
The manufacturer specifies L70B50 lifetime above 60,000 hours at 25°C and 50,000 hours at the maximum operating temperature. L70B50 is a statistical lumen-maintenance rating: at the end of the stated period, at least half the evaluated light sources retain at least 70% of their initial output. It is not a guarantee of every light’s operating life or a warranty period.
The integrated light source has energy-efficiency class F and a label value of 10 kWh/1000 h (LS-0021, EPREL 804393). The luminaire’s 9.1 W input and the energy-label value are different manufacturer-specified ratings.
Installation, protection and contents
Mount the light on an outdoor wall and connect it to a 220–240 V, 50–60 Hz mains supply. A surface-mounted supply cable can be used. The housing is UV-resistant plastic and the diffuser is opal plastic. IP44 provides protection against solid objects of 1 mm or larger and splashing water; IK03 is the impact-resistance rating. Electrical protection class II means double or reinforced insulation. Operating temperature is −20…+40°C.
Dimensions are 132 × 110 × 110 mm (depth × width × height); the technical drawing gives the exact depth as 131.5 mm. The package contains one light with an integrated LED system and control gear, 3 screws, 3 wall plugs and 3 spacers. No separate bulb is needed. The LED light source and control gear cannot be replaced. A remote control and house-number stickers are not included. The manufacturer warranty is 3 years, subject to STEINEL terms.
The instructions require at least 3 m clearance from a Wi-Fi router or access point. This C model has no iHF sensor of its own and can be grouped with a suitably positioned SC sensor light.
L 830 Cubo versions and matching products
L 830 SC 055493: anthracite, iHF sensor, 493 lm; L 830 SC 055509: silver, iHF sensor, 523 lm; L 830 C 079253: anthracite, no built-in sensor, 493 lm.
This product is L 830 C Cubo, anthracite, article 079253, EAN 4007841079253. Related products show sensor and non-sensor versions of the same design, helping you choose another colour or assemble a compatible lighting group.
