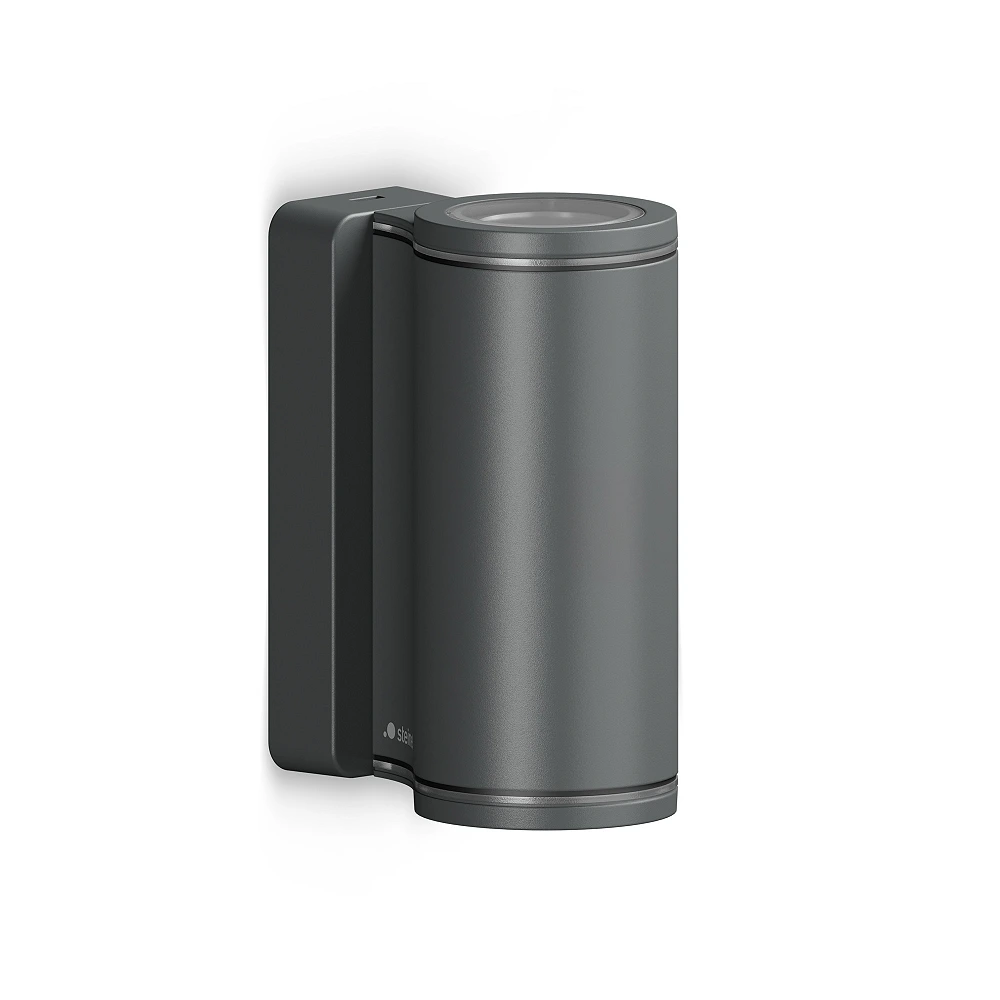

STEINEL L 940 outdoor wall light without sensor, 14.5 W, 1240 lm, 3000 K, anthracite — 087753
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Light source type 2 replaceable GU10 LED bulbs
- Replaceable light source Yes — GU10 bulbs can be replaced by the user
- Number of bulbs 2
- Max. power GU10 bulbs max. 2 × 7 W; stated total system power 14.5 W
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour Anthracite
- Housing material Aluminium
- Light direction Up and down; narrow illuminated strips along the upper and lower housing edges
- Diffuser material Structured plastic
- Dimensions (L×W×H) 115 × 70 × 160 mm (depth × width × height)
- Mounting type Outdoor wall mounting
- IP rating IP44
- Protection class (electrical) I — protective earth (PE) required
- Operating temperature (Ta) −20 to +40 °C
- Control method External on/off switch; no sensor or Bluetooth
- Dimming method None — main light brightness is not adjustable
- Basic light None
- Soft light start No
- Replaceable driver No
- Weight 560 g (net)
- Warranty 3-year manufacturer warranty under its terms
- Wattage 14.5 W — total luminaire power
- Luminous flux 1240 lm total — 2 × 620 lm
- Luminous efficacy (lm/W) 85.1 lm/W
- Colour temperature (CCT) 3000 K — warm white
- Beam angle 38° — for the included GU10 bulbs
- Colour rendering index (CRI/Ra) Ra 81
- Colour consistency (SDCM) 3 — initial value
- Energy class F — for the included GU10 bulbs
- Rated Lifetime (hours) > 20,000 h; L70B50 at 25 °C
- SKU 087753
- EAN 4007841087753
- Socket GU10
- Included Yes — 2 LED bulbs, each 6.7 W / 620 lm / 3000 K
Product Description
STEINEL L 940 is an anthracite outdoor wall light without a motion sensor for entrances, facades, terraces and balconies. Its compact aluminium body provides upward and downward light, with decorative illuminated strips along the upper and lower edges. The two included GU10 LED bulbs deliver a combined 1240 lm with warm white 3000 K light. This version is operated by an external switch; it has no sensor or Bluetooth.
Main benefits
- 1240 lm and 14.5 W: both GU10 LED bulbs are included and replaceable; 14.5 W is the stated total luminaire power.
- Warm white 3000 K light: welcoming illumination at the entrance or seating area, with a consistent light colour along the facade.
- IP44 and an aluminium housing: suitable for an outdoor wall and protected against water splashes.
Light and light source
The light includes two GU10 LED bulbs, each rated at 6.7 W, 620 lm and 3000 K. The stated combined output is 1240 lm, with total luminaire power of 14.5 W. Colour rendering is Ra 81; initial colour consistency of SDCM 3 helps keep the light colour similar across matching fittings.
The GU10 bulbs can be replaced by the user. Replacement GU10 LED bulbs must be rated at no more than 7 W each. After replacement, brightness, colour temperature and consumption depend on the new bulbs. The included light sources have energy class F and a rated lifetime of more than 20,000 hours, L70B50 at 25 °C. L70B50 describes lumen maintenance under defined test conditions, rather than the warranty period. The control gear cannot be replaced. Main light brightness is not adjustable.
The CRI/Ra colour-rendering index describes how naturally object colours appear under the light. Values closer to 100 indicate more faithful colour rendering.
Simple switch control
The basic L 940 is switched on and off using a separate wall switch or suitable external switching control. It has no motion sensor, Bluetooth, basic light or brightness adjustment. The L 940 C adds app control, while the L 940 SC adds automatic motion detection.
Complete technical specifications, installation and package contents
| Light source type | 2 replaceable GU10 LED bulbs |
|---|---|
| Replaceable light source | Yes — GU10 bulbs can be replaced by the user |
| Replaceable driver | No |
| Wattage | 14.5 W — total luminaire power |
| Luminous flux | 1240 lm total — 2 × 620 lm |
| Colour temperature (CCT) | 3000 K — warm white |
| Colour rendering index (CRI/Ra) | Ra 81 |
| Rated Lifetime (hours) | > 20,000 h; L70B50 at 25 °C |
| Luminous efficacy (lm/W) | 85.1 lm/W |
| Beam angle | 38° — for the included GU10 bulbs |
| Colour consistency (SDCM) | 3 — initial value |
| Energy class | F — for the included GU10 bulbs |
| Number of bulbs | 2 |
| Socket | GU10 |
| Included | Yes — 2 LED bulbs, each 6.7 W / 620 lm / 3000 K |
| Max. power | GU10 bulbs max. 2 × 7 W; stated total system power 14.5 W |
| Light direction | Up and down; narrow illuminated strips along the upper and lower housing edges |
| Voltage | 220–240 V AC, 50–60 Hz |
| Housing colour | Anthracite |
| Housing material | Aluminium |
| Diffuser material | Structured plastic |
| Dimensions (L×W×H) | 115 × 70 × 160 mm (depth × width × height) |
| Weight | 560 g (net) |
| Mounting type | Outdoor wall mounting |
| IP rating | IP44 |
| Protection class (electrical) | I — protective earth (PE) required |
| Operating temperature (Ta) | −20 to +40 °C |
| Control method | External on/off switch; no sensor or Bluetooth |
| Dimming method | None — main light brightness is not adjustable |
| Basic light | None |
| Soft light start | No |
| Warranty | 3-year manufacturer warranty under its terms |
| SKU | 087753 |
| EAN | 4007841087753 |
Connection and installation
Designed for secure installation on an outdoor wall. Dimensions 115 × 70 × 160 mm (depth × width × height); net weight 560 g. The housing is aluminium, with structured plastic light covers. Supply 220–240 V AC, 50–60 Hz; electrical protection class I requires a protective earth connection. Follow the manufacturer’s wiring diagram with the power disconnected. Operating temperature −20 to +40 °C.
The included GU10 light sources have a 38° beam angle and an additional colour-rendering value of R9 −0.4. These figures describe the supplied bulbs.
Package contents and care
Supplied with one light, wall mount and mounting accessories, two GU10 LED bulbs, two screws and two wall plugs. A separate remote control and self-adhesive house-number set are not included. Clean the housing with a soft damp cloth, without aggressive cleaning agents. 3-year manufacturer warranty under its terms.
Some application images show installation examples from the L 940 family.
Manufacturer documents, drawings and photometric data
- Technical datasheet (EN, PDF)
- Installation and operating instructions (PDF, EN/LV)
- Wiring diagrams (PDF)
- Dimension drawing (PDF)
- Photometric data (LDT)
- Tendering specification (EN, DOCX)
- EU declaration of conformity (PDF)
- Quick start guide (PDF)
- Included GU10 bulb energy label (PDF)
- A4 drilling template (PDF; print at100%)
- L940 family brochure (DE, PDF)
