STEINEL MD IR N360 COM1 DE recessed ceiling motion detector, PIR, 360°, tangential coverage up to Ø26 m, Bluetooth Mesh, IP54, anthracite — 087432
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Housing material Plastic
- Protection class (electrical) II
- Weight 200 g net
- Number of detection zones 1179 switching zones
- Sensor technology Passive infrared (PIR); mixed-light measurement
- Sensor type Motion detector
- Installation Recessed ceiling; indoors and outdoors; Ø68 mm opening; connection box in a protected location
- Reach Tangential up to Ø26 m at 2.5 m height; radial Ø6 m in manual at 2.5 m, nominal Ø7 m in current specification; Eagle Eye up to 6 m in selected direction at 2.5 m
- Detection angle 360°
- Optimal mounting height 2 m in current data sheet; 2.5 m in shared manual
- Maximum mounting height 6 m; range 1.8–6 m
- Time setting 5 s–60 min; pulse 2 s / dead time 8 s
- Twilight setting 2–2000 lx; Teach-IN and daytime mode
- Sensor system Four PIR sensors; individual sensitivity adjustable 1–100%
- Sneak-by guard Yes
- Segment masking Yes; masking cover clips included, adjustable Eagle Eye window orientation
- Watt-o-matic No; COM1 switching version
- Soft light start No; COM1 switching version
- Output Own consumption 0.3 W in current specification
- Relay load Resistive incandescent/halogen 2000 W; LED/ECG 350 W, max. 10 lamps, C <132 µF
- LED load (W) LED/ECG up to 350 W; max. 10 LED/fluorescent lamps; total C <132 µF
- Parallel connection Bluetooth Mesh groups; shared manual also lists wired interconnection
- Output type COM1; one ON/OFF switched-live relay
- Interface & control COM1; Bluetooth Mesh; groups and neighbouring groups
- Settings STEINEL Connect app; Bluetooth smartphone or tablet; test mode
- Voltage 220–240 V AC, 50–60 Hz
- Operating temperature −20…+40 °C
- IP rating IP54 sensor unit; separate connection box IP20
- Dimensions (W×H×D) Ø83 × 74 mm (diameter × height); connection box 109 × 63 × 30 mm; connection cable 500 mm
- Warranty 5 years
- Colour / RAL Anthracite; RAL 7016
- In the box Sensor unit with springs, connection box with cable, masking cover clips, design ring
- Manufacturer SKU 087432
- EAN 4007841087432
- Standby power consumption (W) <0.55 W (shared N360 manual)
Product Description
All-round motion detection from the ceiling
STEINEL MD IR N360 COM1 DE is a standalone nexx.IS PRO motion detector in anthracite RAL 7016, manufacturer article 087432. This is the recessed ceiling version with 360° passive infrared detection, intended to control separately selected entrance, passage or approach lighting. It detects changes in heat radiation from moving people and takes the surrounding light level into account. The ceiling format suits places requiring an all-round field below the mounting point, while its settings allow the lighting response to follow the way that people use the approach.
The manufacturer specifies a tangential zone of up to Ø26 m. In the shared manual, this diameter is illustrated at a mounting height of 2.5 m, with a conventional radial detection radius of 3 m. The current specification separately lists a nominal radial zone of Ø7 m. Head-on movement and movement across the field produce different detection results, so the zones should be assessed for the actual walking direction and installation height. Walls, glazing and other obstacles interrupt the detector’s infrared view.
Eagle Eye and four adjustable sensing sectors
The Eagle Eye window in the lens improves approach detection in a selected direction. At 2.5 m height, the manual gives this area a reach of up to 6 m from the detector. Align the window with the entrance or path, then use the supplied cover clips to mask unwanted segments. This is useful where a public footpath or another frequently used area sits beside the intended approach and should not determine the response of the connected lighting.
MD IR N360 has four PIR sensors with individually adjustable sensitivity between 1 and 100 percent. Configure the settings in the app and check movement along the intended route and at the edges of the field. Test mode works independently of ambient brightness and also allows the response to be assessed through the status indicator without a connected load. Install the unit on a stable base so that movement or vibration of the housing does not cause unwanted triggering.
App settings, twilight and lighting groups
STEINEL Connect and Bluetooth Mesh provide configuration from a compatible smartphone or tablet and wireless organisation into lighting groups. Group members follow shared control parameters while individual sensitivity can still be set for each sensor. The neighbouring-light function coordinates connected approaches. The detector can also operate on its own. When another mobile device needs configuration access, the network key is shared through the app, allowing the existing lighting network to be managed from that device.
The stay-on time after movement can be chosen from 5 seconds to 60 minutes, with a twilight threshold between 2 and 2000 lux. Teach-IN saves the brightness measured on site, making it practical to choose the desired switching condition at dusk. Daytime mode allows movement-based operation or testing independently of natural light. These settings help the response suit the actual entrance, while the test mode makes it easier to check the final placement and masking.
One relay for lighting switching
COM1 provides one ON/OFF relay output with a switched live. It suits lighting requiring automatic switching in response to movement and the selected brightness threshold. Pulse mode activates the output for two seconds and then observes an eight-second dead time, for example when controlling a compatible staircase-lighting timer. COM1 is the switching version; brightness adjustment and a basic-light level belong to the separate uDIM interface. Choose the output type to match the lighting task and its electrical installation.
The resistive incandescent or halogen load limit is 2000 W. LED and electronic-ballast loads must respect 350 W, no more than 10 LED/fluorescent lamps, and a total capacitance below 132 µF. This combines the N360 manual’s power and capacitance limits with the stricter lamp-count limit in the current exact data sheet. Distinguishing these load categories ensures that the larger resistive-load figure is not applied to connected LED drivers.
Recessed installation and the gallery example
The DE sensor unit measures Ø83 × 74 mm and is held by springs in a Ø68 mm ceiling opening. Its separate connection box above the ceiling measures 109 × 63 × 30 mm and connects through a 500 mm cable. IP54 applies to the sensor unit, while the manual rates the connection box IP20; the box therefore needs a protected location. The detector is intended for indoor and outdoor ceiling installation with this distinction and the manufacturer’s installation conditions observed.

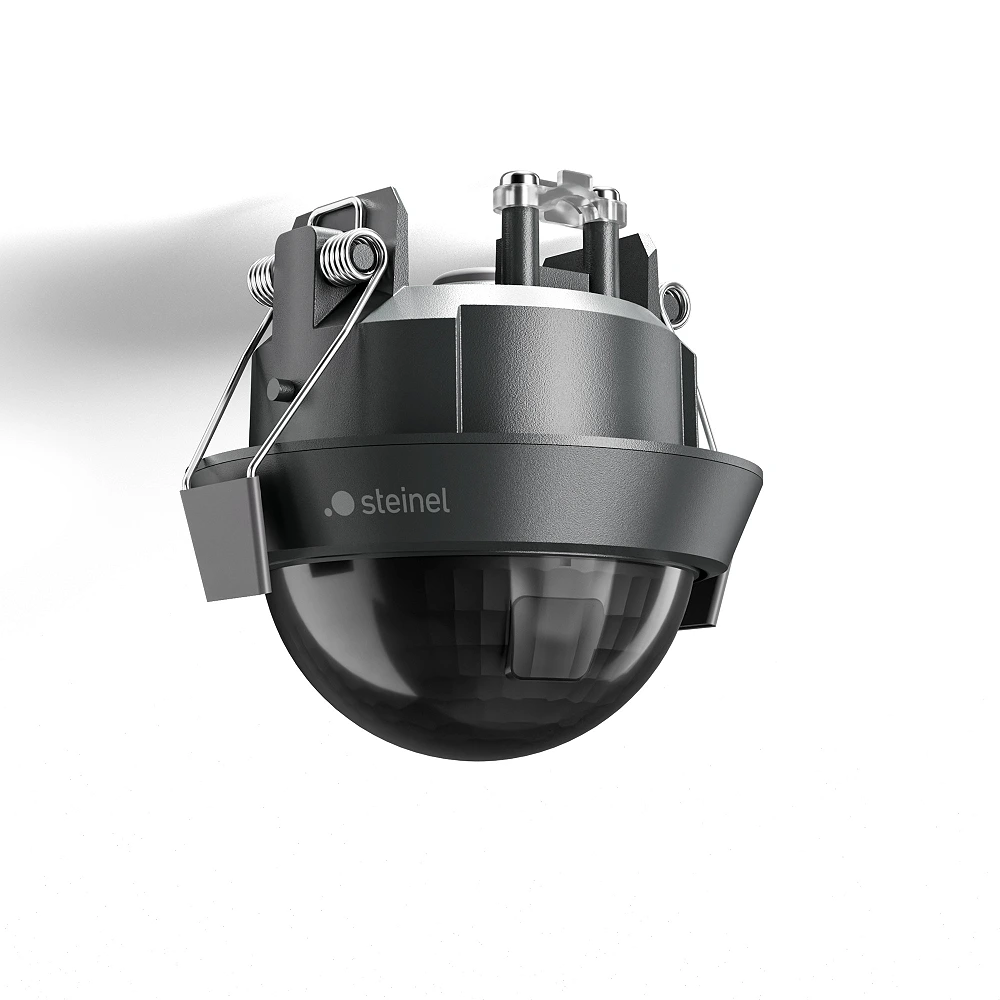

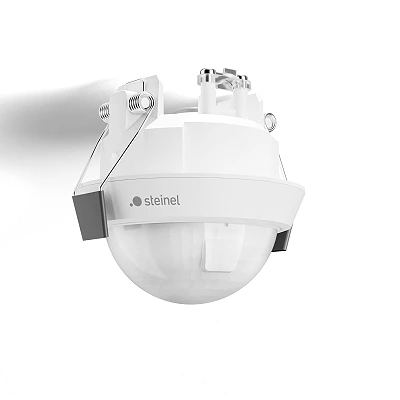

The permitted mounting range is 1.8–6 m. The current COM1 data sheet identifies an optimum height of 2 m, while the shared manual specifies 2.5 m; its detection examples must be read with their stated height. The first gallery photograph shows the offered anthracite RAL 7016 DE version with spring fittings. The manufacturer’s night entrance photograph is a family application example, whose installed article colour and COM1 interface are not confirmed. The luminaires, bicycles and other equipment shown are not included.
