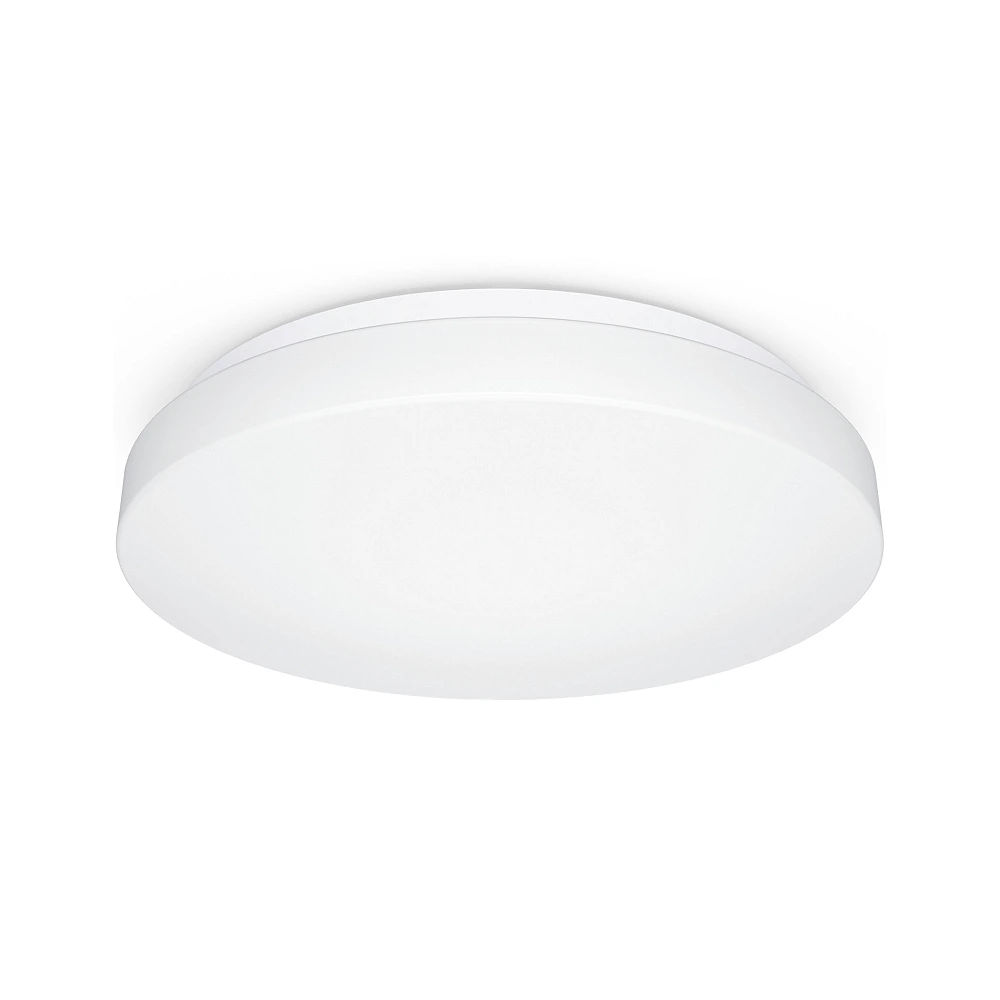

STEINEL RS PRO P1 flat indoor LED ceiling light without sensor, 8.2 W, 922 lm, 3000 K, IP54, white — 069704
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Light source type Integrated LED
- Replaceable light source No — LED is not user-replaceable
- Voltage 220–240 V AC
- Housing colour White
- Housing material Plastic
- Diffuser material Opal plastic
- Dimensions (L×W×H) 272 × 272 × 64 mm; Ø272 mm
- Mounting type Surface mounting on wall or ceiling
- IP rating IP54
- IK rating IK03
- Protection class (electrical) Class II — double insulation
- Operating temperature (Ta) −10…+40 °C
- Control method External on/off switch; can be wired to a compatible sensor version
- Soft light start Yes — soft light start
- Driver included Yes — power supply built into the luminaire
- Replaceable driver No
- Weight 355 g
- Warranty 5-year manufacturer warranty, subject to STEINEL terms
- Wattage 8.2 W
- Luminous flux 922 lm
- Luminous efficacy (lm/W) 112 lm/W
- Colour temperature (CCT) 3000 K
- Light colour Warm white
- Colour rendering index (CRI/Ra) Ra 82
- Colour consistency (SDCM) SDCM 3
- Mains frequency 50–60 Hz
- Dimmable No — not suitable for an external dimmer
- Energy class D — label for the built-in light source LS-0099
- Energy consumption (kWh/1000 h) 9 kWh/1000 h — light-source energy label
- Rated Lifetime (hours) IEC 62717: L70 100 000 h, L80 73 000 h; IES TM-21: L70/L80 >60 000 h
- Photobiological risk group RG1
- SKU 069704
- EAN 4007841069704
Product Description
STEINEL RS PRO P1 flat is a white indoor LED ceiling light without sensor for corridors, stairwells and indoor circulation areas. Its integrated LED delivers 922 lm at 8.2 W, with a fixed 3000 K warm-white light colour. Article 069704; EAN 4007841069704.
Key specifications
| Version | Without motion sensor |
|---|---|
| Power / luminous flux | 8.2 W / 922 lm |
| Light colour | 3000 K — warm white |
| Dimensions | Ø272 × 64 mm |
| Protection | IP54 / IK03 |
| Supply | 220–240 V AC, 50–60 Hz |
| Materials | Plastic housing and opal-plastic diffuser |
Control without a built-in sensor
This article has no motion sensor. Use an external switch or suitable external controller. It can also be wired to the switched circuit of a compatible RS PRO P1 sensor version, subject to the wiring diagram and load limits. Soft light start is provided, but the luminaire is not designed for an external dimmer. 3000 K and 4000 K are separate fixed-colour articles, not selectable settings on this unit.
Light quality and service life
922 lm is the complete luminaire’s luminous flux; 112 lm/W is its efficacy. CRI / Ra 82 describes colour rendering. SDCM 3 indicates initial light-colour consistency. LED cooling uses the passive Passive Thermo Control system.
Manufacturer lifetime figures: IEC 62717 L70 — 100,000 h; L80 — 73,000 h; IES TM-21 L70 and L80 — more than 60,000 h. L70 and L80 indicate retention of 70% and 80% of initial light output. These figures are not warranty periods.
The built-in LS-0099 light source carries energy class D and a label value of 9 kWh/1000 h; EPREL reference 882499. The energy label applies to the light source. The LED is included and is not a user-replaceable bulb.
Installation and package contents
Surface mounting on a wall or ceiling. Dimensions Ø272 × 64 mm follow the current article-specific data sheet and drawing; the older flat dimensions in the shared installation manual differ. This luminaire is intended for indoor use. The manual does not permit ceiling installation with a surface-mounted supply cable; plan a rear cable entry.
IP54 provides protection against harmful dust ingress and splashing water; bathroom placement must comply with applicable installation requirements. IK03 describes impact resistance. Class II means double insulation. Ambient operating range: −10…+40°C.
Included: one LED luminaire and three mounting spacers. The LED and driver are built in; no separate bulb is needed. This P1 version is not a battery-backed emergency luminaire.
Maximum stated inrush current is 13 A. The data sheet gives the following luminaire counts per circuit breaker: B10 — 54, B16 — 87, C10 — 90, C16 — 145. These are supply-circuit figures, not sensor-controlled group sizes. Cable capacity, total load and the wiring diagram also apply.
5-year manufacturer warranty, subject to STEINEL terms. Mains connection must be carried out by a qualified electrician. Manufacturer: STEINEL GmbH, Dieselstraße 80–84, 33442 Herzebrock-Clarholz, Germany; product@steinel.de.
The gallery contains manufacturer product photos, detail views and application illustrations. Other lights shown in series photographs are not included with this article.
