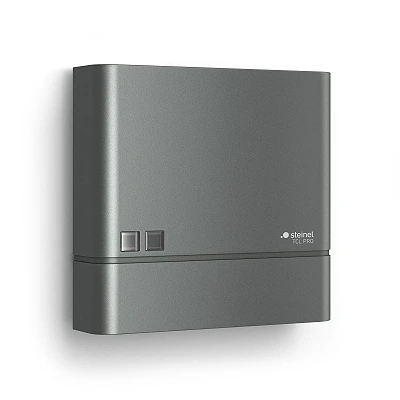

TCL PRO Bluetooth time and light sensor without relay, anthracite, IP54 (Steinel)
63.51€Bez PVN: 52.49€

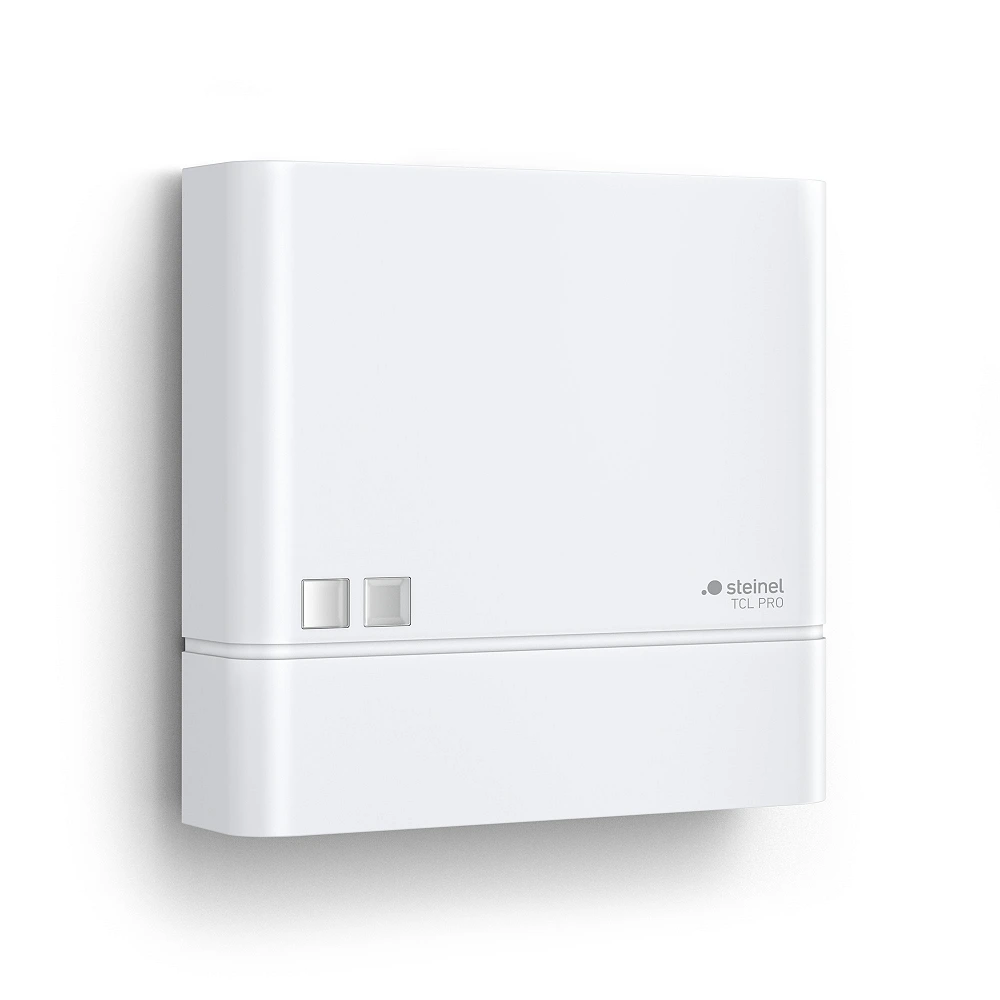

TCL PRO Bluetooth time and light sensor without relay, white, IP54 (Steinel)
63.51€
Ex Tax: 52.49€
Viewed 4 times
Categories
Cart
Account
Search
Recent View
Go to Top
All Categories
×
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Shopping Cart
×
Your shopping cart is empty!
Search
×
Recent View Products
×
Item specifics
- Type Bluetooth Mesh time and light sensor; no relay
- Output Not applicable; no switched load output
- Voltage 220–240 V AC / 50–60 Hz
- Night economy mode Yes; set in STEINEL Connect app
- Morning setting Controlled by brightness and app time settings
- IP rating IP54
- Dimensions (W×H×D) 95 × 95 × 38 mm (W × H × D)
- Ambient temperature −20 … +40 °C
- Wattage 0.5 W
- Relay load No relay; Bluetooth Mesh output
- LED load No direct LED load connection
- Setup STEINEL Connect / Bluetooth Mesh; Teach-in; real-time clock, 7-day backup
- Installation Surface wall mounting
- Colour white
- Material UV-resistant plastic
- Weight 125 g (manufacturer net weight)
- Warranty 5-year manufacturer warranty; manufacturer terms apply
- SKU 089146
- EAN 4007841089146
Product Description
STEINEL TCL PRO is a Bluetooth Mesh light and time sensor for controlling compatible STEINEL Connect luminaires. It supplies ambient-brightness and timing information to the network, allowing lighting to follow dusk levels and operating schedules. Configuration is through the STEINEL Connect app. This is the white version (089146).
No load relay: a luminaire cannot be connected to TCL PRO as to a conventional twilight switch. It requires a compatible STEINEL Bluetooth Mesh luminaire or control device. The 220–240 V connection supplies the sensor itself.
Practical features
- Ambient-brightness detection: the sensor supplies light-level data so a compatible STEINEL network can adapt lighting to daylight and dusk.
- Schedules and night economy mode: adapt compatible lighting to the required days and times, such as business opening hours.
- Real-time clock with a 7-day backup: the clock continues during a temporary power failure. The reserve does not supply power to the luminaires.
- Bluetooth Mesh connection: control is intended for compatible STEINEL Connect devices. Bluetooth support on another luminaire alone does not establish compatibility.
- IP54 and UV-resistant plastic: the splash-protected housing is suitable for outdoor installation. Compact dimensions: 95 × 95 × 38 mm (width × height × depth).
To directly connect and switch a conventional 230 V lighting circuit, choose TTS PRO with a COM1 relay. TCL PRO does not replace a wired load-switching photoelectric controller.
Installation: surface mounting on a wall, with a 220–240 V / 50–60 Hz supply. Choose a position where the sensor can detect ambient daylight without direct illumination from the light it controls. Operating temperature: −20 to +40 °C; own consumption: 0.5 W. 5-year manufacturer warranty, subject to STEINEL’s terms.
Delivery: 2 weeks.
Also available in anthracite.
