STEINEL XLED home 2 SC outdoor LED sensor floodlight, Bluetooth, 13.8 W, 1550 lm, 3000 K, IP44, black — 065447
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Light source type Integrated STEINEL LED system
- Replaceable light source No — integrated LED light source cannot be replaced
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour Black
- Housing material HCMC — high-conductivity magnesium composite
- Adjustable light direction Manual swivelling and tilting of LED panel
- Diffuser material Opal plastic
- Dimensions (L×W×H) 161 × 180 × 218 mm (depth × width × height)
- Mounting type Wall; outside corner with separately purchased bracket 055875
- Adjustable head Yes — adjustable LED panel independent of sensor
- Rotation angle (°) LED panel 180° horizontally; sensor 180° horizontally
- Tilt angle (°) LED panel 180° vertically; sensor 90° vertically
- IP rating IP44
- IK rating IK03
- Protection class (electrical) Class II — double or reinforced insulation
- Operating temperature (Ta) −20…+40 °C
- Control method Motion and twilight sensor; Bluetooth configuration and manual control
- Dimming method Not dimmable; no external dimmer
- Soft light start No — no soft light start
- Driver included Yes — integrated LED control gear
- Replaceable driver No — integrated LED control gear cannot be replaced
- Weight 576 g — manufacturer net weight
- Warranty Manufacturer-specified warranty: 5 years, subject to manufacturer warranty terms
- Accessories Luminaire with LED and wall mount, mounting materials, sensor masking stickers and instructions; corner bracket not included; optional TapDuo C Bluetooth wireless pushbutton 088620 (purchased separately)
- Wattage 13.8 W — total luminaire input at full output
- Luminous flux 1550 lm — complete luminaire
- Colour temperature (CCT) 3000 K — warm white
- Colour rendering index (CRI/Ra) CRI / Ra 82
- Colour consistency (SDCM) SDCM 3
- Power factor (PF) 0.78 — according to manufacturer instructions
- Dimmable No
- Smart control STEINEL Connect app on a Bluetooth-enabled smartphone or tablet
- Energy class E — integrated light-source class
- Energy consumption (kWh/1000 h) 14 kWh/1000 h — light-source energy label
- Rated Lifetime (hours) L70B50 >60,000 h at 25°C — according to manufacturer instructions
- SKU 065447
- EAN 4007841065447
- Included Yes — integrated STEINEL LED light source
- Sensor type Passive infrared (PIR)
- Reach Up to 10 m across the zone (157 m²); up to 5 m on direct approach (39 m²)
- Detection angle 180°
- Optimal mounting height 2 m
- Maximum mounting height 4 m
- Twilight setting 2–1000 lx; set in STEINEL Connect app or with Teach-in
- Segment masking Yes — with supplied masking stickers
- Manual override Selectable in app; can be scheduled for a specific time
- Manual control On/off control in app; group override
- Watt-o-matic No basic-light mode
- Output 0.35 W sensor standby; 0.35 W network standby — separate modes, from instructions
- Interface & control Bluetooth Mesh; master/master and master/slave; group settings and neighbouring-group function; 2.4–2.48 GHz; transmitter power 5 dBm / 3 mW
- Settings STEINEL Connect app: time, twilight threshold, Teach-in, groups, night mode and schedule
- Time setting 5 s–60 min after last detected movement
Product Description

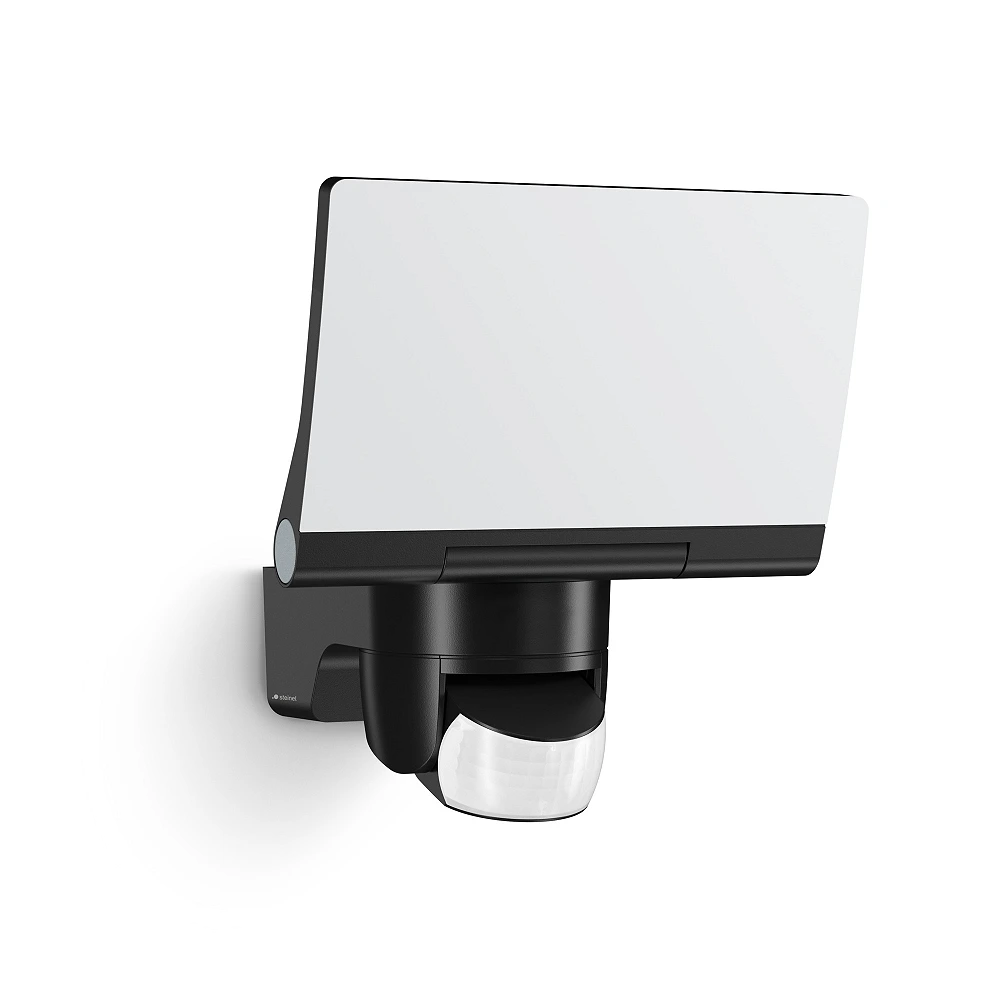

The STEINEL XLED home 2 SC is an outdoor LED floodlight with a motion sensor and Bluetooth control for courtyards, driveways, patios and entrances. Its integrated 13.8 W LED module delivers 1550 lm of warm white light at 3000 K. Housing colour: black; manufacturer article number: 065447.
Adjustable lighting around the home
- The LED panel swivels through 180° horizontally and 180° vertically to direct light towards an entrance, driveway or patio.
- Warm white 3000 K light and an opal diffuser provide even light distribution. CRI 82 describes colour rendering, while SDCM 3 indicates consistency of the LED light colour.
- The HCMC magnesium composite helps dissipate heat from the LED module. IK03 is the housing's mechanical impact-resistance rating.
Key technical specifications
| Wattage | 13.8 W — total luminaire input at full output |
|---|---|
| Luminous flux | 1550 lm — complete luminaire |
| Colour temperature (CCT) | 3000 K — warm white |
| Dimensions (L×W×H) | 161 × 180 × 218 mm (depth × width × height) |
| IP rating | IP44 |
| IK rating | IK03 |
| Warranty | Manufacturer-specified warranty: 5 years, subject to manufacturer warranty terms |
| Detection angle | 180° |
| Reach | Up to 10 m across the zone (157 m²); up to 5 m on direct approach (39 m²) |
| Time setting | 5 s–60 min after last detected movement |
| Twilight setting | 2–1000 lx; set in STEINEL Connect app or with Teach-in |
How the motion sensor works
The 180° passive infrared sensor (PIR) detects movement at up to 10 m when crossing the detection zone and up to 5 m on direct approach. The manufacturer's corresponding areas of 157 m² and 39 m² describe sensor coverage, not the illuminated ground area. Positioning the sensor so that people cross its zone helps achieve better detection.
The sensor swivels through 180° horizontally and 90° vertically, independently of the light panel. Supplied masking stickers help exclude unwanted detection sectors, such as pedestrians passing beyond the property.
Bluetooth control and lighting groups
Use the STEINEL Connect app on a Bluetooth-enabled smartphone or tablet to set the light-on time from 5 seconds to 60 minutes and the twilight threshold from 2 to 1000 lx. Teach-in saves the current ambient-light level as the switching threshold. Each detected movement restarts the timer.
- Bluetooth Mesh groups. Compatible STEINEL Connect lights can be grouped and configured together. In master/master mode, several sensors can trigger the group; in master/slave mode, grouped lights follow the selected sensor.
- The neighbouring-group function coordinates compatible lighting groups. Manual on/off control and group override are available in the app.
- Night mode and a time schedule adapt operation to daily needs. Continuous lighting can be activated for specified times.
After a power interruption, reconnect the fitting to the STEINEL Connect app to synchronise its internal clock and restore correct operation of timed functions. Bluetooth linking requires compatible devices; the XLED home 2 S and standard sensor-free version do not themselves join a Bluetooth network.
There is no basic-light or soft-start mode, and the light is not dimmable. Bluetooth settings on this model control sensor, group and time functions.
Installation and supplied components
The floodlight is designed for mounting on an outside wall and a 220–240 V, 50–60 Hz mains supply. The optimum sensor mounting height is 2 m, with a maximum of 4 m. IP44 provides protection against splashing water and solid objects of 1 mm or larger; electrical protection class II means double or reinforced insulation. The specified ambient temperature range is −20…+40°C.
The LED light source and control gear are built in and included — no separate bulb is required. A wall mount and installation materials are supplied, together with sensor masking stickers. For mounting on an outside corner, matching bracket 055875 is available separately.
The STEINEL TapDuo C Bluetooth wireless pushbutton 088620 is available as an optional control accessory, purchased separately.
Service life, energy consumption and warranty
The manufacturer instructions state L70B50 >60,000 h at 25°C: under those conditions, at least half of the LEDs are expected to retain at least 70% of their initial light output at the stated lifetime. The lifetime rating is separate from the warranty period.
The integrated light source has energy class E and a label value of 14 kWh per 1000 operating hours. Actual consumption depends on operating duration and sensor standby time. The LED light source and control gear cannot be replaced. The manufacturer specifies a 5-year warranty subject to STEINEL warranty terms.
Manufacturer documents
- Technical datasheet (DE)
- Manufacturer warranty terms for Germany/Austria (DE)
- Installation and operating instructions, including English
- Wiring diagram (DE)
- Dimension drawing (DE)
- Drilling template — print at 100%
- Photometric data — EULUMDAT (LDT)
- Tender specification (DE)
- EU declaration of conformity
- Quick installation guide
- Light-source energy label
- Technical datasheet (EN)
- Wiring diagram (EN)
- Dimension drawing (EN)
- Tender specification (EN)
- EPREL 1002980
The shared manufacturer instructions cover several Home 2 versions. Adjustment ranges on this page follow the current datasheet for this exact article. Follow the supplied instructions and product markings during installation.
Manufacturer XLED home 2 series video — functions shown vary by version
