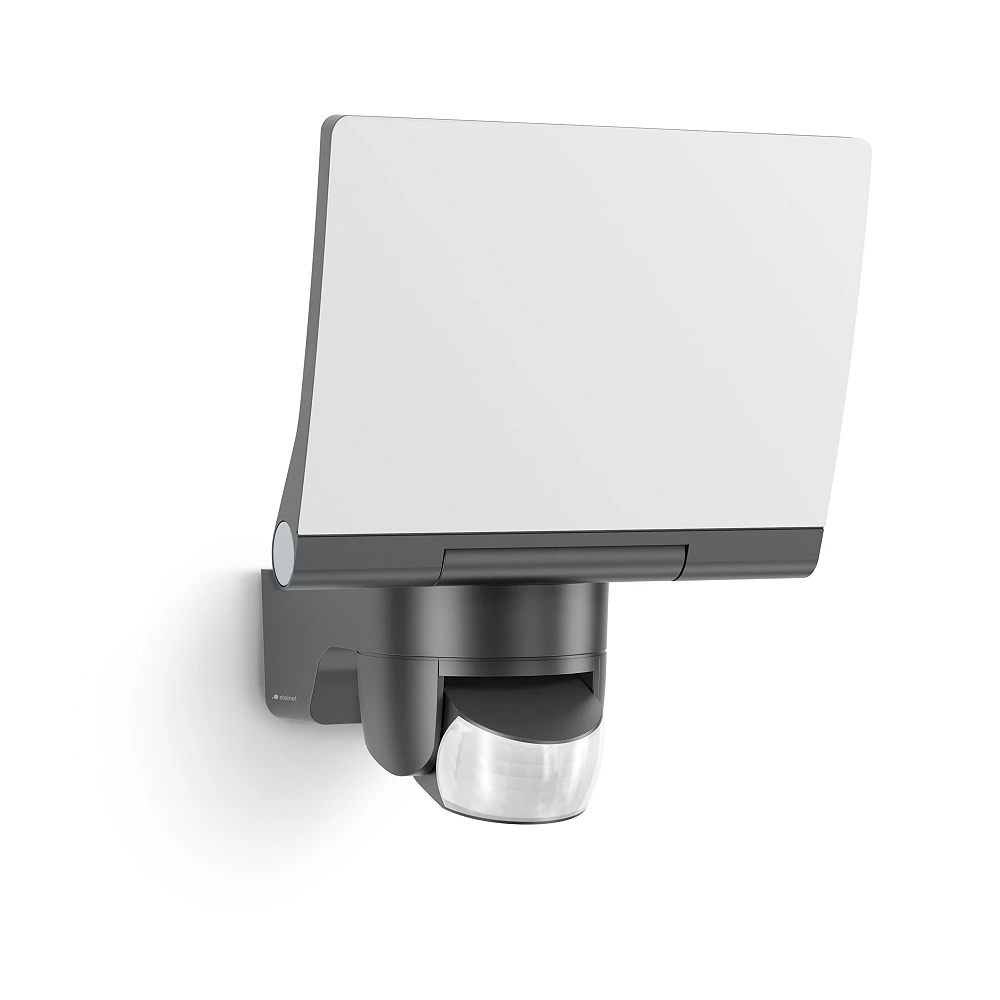

STEINEL XLED home 2 XL S LED sensor floodlight, 19.3 W, 2124 lm, 3000 K, anthracite — 030056
182.00€
Ex Tax: 150.41€
Enerģijas klase:
Viewed 2 times
Categories
Cart
Account
Search
Recent View
Go to Top
All Categories
×
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Shopping Cart
×
Your shopping cart is empty!
Search
×
Recent View Products
×
Item specifics
- Light source type Integrated STEINEL LED system
- Replaceable light source No — integrated LED light source cannot be replaced
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour Anthracite
- Housing material Plastic; HCMC magnesium-composite cooling system
- Adjustable light direction Manual swivelling and tilting of LED panel
- Diffuser material Opal plastic
- Dimensions (L×W×H) 161 × 180 × 240 mm (depth × width × height)
- Mounting type Wall; outside corner with separately purchased bracket 053086
- Adjustable head Yes — LED panel adjusts independently of sensor
- Rotation angle (°) LED panel 180° horizontally; sensor 180° horizontally
- Tilt angle (°) LED panel 180° vertically; sensor 90° vertically
- IP rating IP44
- Protection class (electrical) Class II — double or reinforced insulation
- Operating temperature (Ta) −20…+40 °C
- Control method Motion and twilight sensor
- Dimming method Not dimmable; no external dimmer
- Driver included Yes — integrated LED control gear
- Replaceable driver No — integrated LED control gear cannot be replaced
- Weight 614 g — manufacturer net weight
- Warranty Manufacturer-specified warranty: 5 years, subject to manufacturer warranty terms
- Accessories Luminaire with LED and wall mount, mounting materials, sensor masking stickers and instructions; corner bracket not included
- Wattage 19.3 W — total luminaire input at full output
- Luminous flux 2124 lm — complete luminaire
- Luminous efficacy (lm/W) 110 lm/W — complete luminaire
- Colour temperature (CCT) 3000 K — warm white
- Colour rendering index (CRI/Ra) CRI / Ra 82
- Colour consistency (SDCM) SDCM 3
- Dimmable No
- Energy class E — integrated light-source class
- Energy consumption (kWh/1000 h) 20 kWh/1000 h — light-source energy label
- Rated Lifetime (hours) 50,000 h at maximum ambient temperature; instructions specify >60,000 h L70B50 at 25°C
- SKU 030056
- EAN 4007841030056
- Included Yes — integrated STEINEL LED light source
- Sensor type Passive infrared (PIR)
- Reach Up to 10 m across the zone; up to 5 m on direct approach
- Detection angle 180°
- Optimal mounting height 2 m
- Maximum mounting height 4 m
- Twilight setting 2–1000 lx; set using control on fitting
- Sneak-by guard Yes — detection directly beneath the sensor
- Segment masking Yes — with supplied masking stickers
- Watt-o-matic No basic-light mode
- Output 0.50 W — standby input with light off, from XL S instructions
- Interface & control Local controls; no Bluetooth or shared wired sensor control
- Settings Time and twilight controls; sensor aiming and masking stickers; no Teach-in
- Time setting 5 s–35 min after last detected movement
Product Description
The STEINEL XLED home 2 XL S is an outdoor LED floodlight with a motion sensor for courtyards, driveways, patios and entrances. Its integrated 19.3 W LED module delivers 2124 lm of warm white light at 3000 K. The adjustable light panel directs the light where it is needed, while the sensor switches it on when movement is detected. Housing colour: anthracite; manufacturer article number: 030056.
Direct the light where it is needed
- Independently adjustable panel and sensor. The LED panel swivels through 180° horizontally and 180° vertically; the sensor adjusts through 180° horizontally and 90° vertically. This helps match both lighting and motion detection to the installation site.
- Warm white light with an opal diffuser. The 3000 K colour temperature suits residential outdoor areas, while the opal plastic cover diffuses the LED light.
- LED cooling. The HCMC cooling system uses a magnesium composite material to help dissipate heat from the LED module.
Key technical specifications
| Dimensions (L×W×H) | 161 × 180 × 240 mm (depth × width × height) |
|---|---|
| IP rating | IP44 |
| Warranty | Manufacturer-specified warranty: 5 years, subject to manufacturer warranty terms |
| Colour temperature (CCT) | 3000 K — warm white |
| Luminous flux | 2124 lm — complete luminaire |
| Wattage | 19.3 W — total luminaire input at full output |
| Detection angle | 180° |
| Reach | Up to 10 m across the zone; up to 5 m on direct approach |
| Time setting | 5 s–35 min after last detected movement |
| Twilight setting | 2–1000 lx; set using control on fitting |
How the motion sensor works
The 180° passive infrared sensor (PIR) detects movement at up to 10 m when crossing the detection zone and up to 5 m when approaching the sensor directly. The corresponding detection areas specified by STEINEL are 157 m² and 39 m². These figures describe the sensor's coverage, not the illuminated area. Positioning the light so that people cross the detection zone helps achieve better detection.
Local controls set the ambient-light threshold from 2 to 1000 lx and the light-on time from 5 seconds to 35 minutes. A lower lux setting allows activation in darker surroundings. Supplied masking stickers let you exclude unwanted detection sectors. There is no Bluetooth or linked sensor control between lights; settings are adjusted directly on the floodlight.
Installation and supplied items
The floodlight is designed for outdoor wall mounting and a 220–240 V, 50–60 Hz mains supply. The optimum sensor mounting height is 2 m, with a maximum mounting height of 4 m. IP44 provides protection against splashing water and solid objects of 1 mm or larger; electrical protection class II uses double or reinforced insulation. The housing is made of plastic.
The LED light source is integrated and included, so no separate bulb is required. Mounting accessories and sensor masking stickers are supplied. For installation on a building corner, the matching STEINEL corner bracket 053086 is available separately and is not included.
Service life, energy efficiency and warranty
STEINEL specifies an LED service life of 50,000 hours at the maximum rated ambient temperature. This describes the LED's operating life, rather than the warranty period. The manufacturer specifies a 5-year warranty for this model, subject to STEINEL's warranty terms. The integrated LED light source and driver are not replaceable.
The integrated light source has energy efficiency class E, with an energy-label consumption of 20 kWh per 1000 operating hours. Total electricity use depends on how long the floodlight operates.
Manufacturer documents
- Technical datasheet (DE)
- Manufacturer warranty terms for Germany/Austria (DE)
- Installation and operating instructions, including English
- Wiring diagram (DE)
- Dimension drawing (DE)
- Drilling template — print at 100%
- Tender specification (DE)
- EU declaration of conformity
- Quick installation guide
- Light-source energy label
- Technical datasheet (EN)
- Wiring diagram (EN)
- Dimension drawing (EN)
- Tender specification (EN)
- EPREL 1002985
The instructions cover several Home 2 versions. Use the XL S section for this fitting; control ranges here follow the current manufacturer datasheet. Follow the actual product marking and supplied instructions when wiring.
