Steinel
STEINEL XSolar GL-S solar sensor bollard, 150 lm, 3000 K, IP44, silver — 671211
382.50€Bez PVN: 316.12€

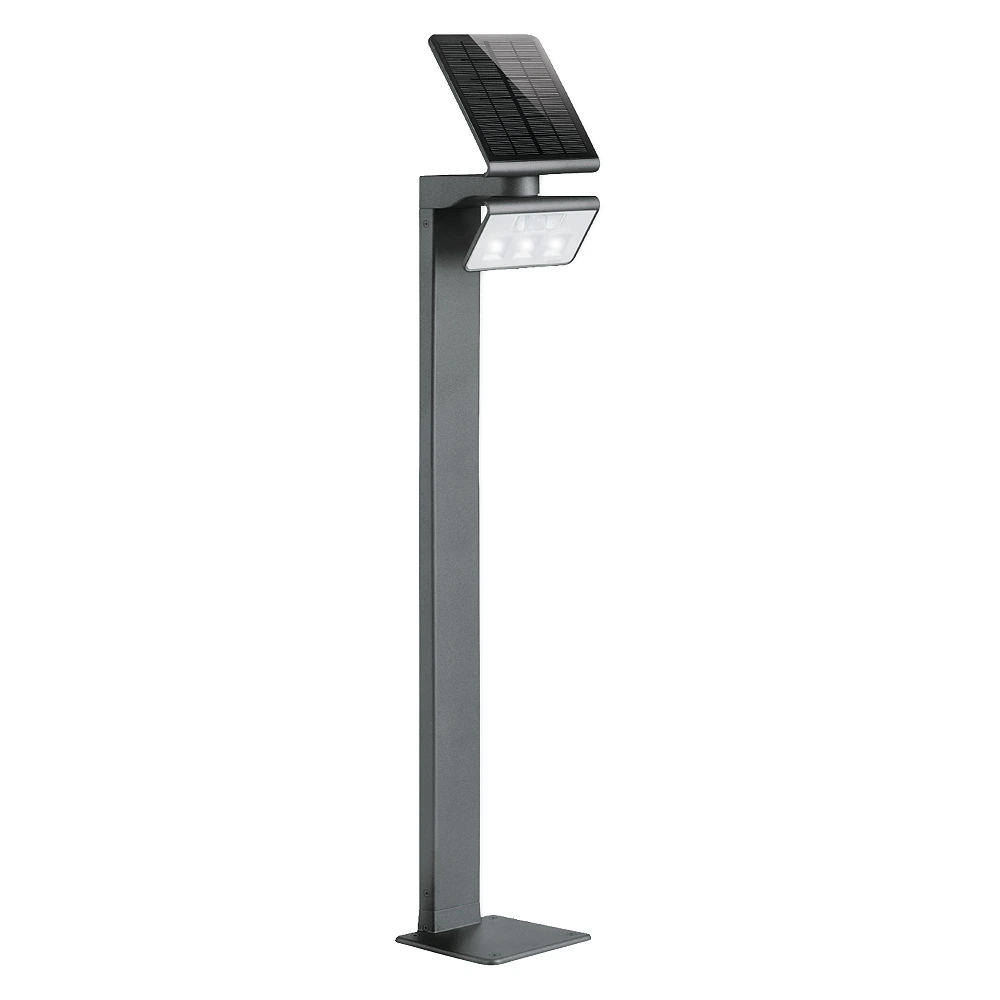

STEINEL XSolar GL-S solar sensor bollard, 150 lm, 3000 K, IP44, anthracite — 085681
349.00€
Ex Tax: 288.43€
Viewed 3 times
Categories
Cart
Account
Search
Recent View
Go to Top
All Categories
×
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Shopping Cart
×
Your shopping cart is empty!
Search
×
Recent View Products
×
Item specifics
- Light source type Integrated STEINEL LED system
- Replaceable light source No — integrated LED system
- Voltage Solar and built-in rechargeable battery; no 230 V mains connection
- Housing colour Anthracite
- Housing material Aluminium
- Diffuser material Plastic
- Diffuser colour Transparent
- Dimensions (L×W×H) 188 × 194 × 1178 mm (depth × width × height)
- Mounting type Bollard with screw-fixed base plate
- Adjustable head Yes — independently adjustable LED head and solar panel
- Height adjustable No — 1178 mm for this version
- Height adjustment range 1178 mm
- Rotation angle (°) LED head ±60°; solar panel +180°/−150°
- Tilt angle (°) LED head 55°; solar panel 55°
- IP rating IP44
- IK rating IK03
- Protection class (electrical) III — safety extra-low-voltage battery supply
- Operating temperature (Ta) −20…+40 °C
- Lamp has a switch Yes — P0/P1/P2 programme selector
- Control method Motion and photo-cell control; P0/P1/P2 selector
- Remote control included No remote control included
- Weight 2846 g — manufacturer net weight
- Warranty 5-year manufacturer warranty subject to its terms
- Accessories Base plate, 1 tall pole profile, connectors, screws and plugs; solar panel, battery and LED system integrated
- Number of diodes 6
- Wattage 1.2 W — maximum complete-luminaire input
- Luminous flux 150 lm
- Colour temperature (CCT) 3000 K — warm white
- Colour rendering index (CRI/Ra) CRI / Ra 82
- Dimmable No user dimming; automatic 3% basic level in P2
- Rated Lifetime (hours) 50 000 h L70B10; also >60 000 h L70B50 at 25°C
- SKU 085681
- EAN 4007841085681
- Sensor type Passive infrared (PIR)
- Reach Up to 5 m across the zone; up to 1.5 m direct approach (at 1 m height)
- Detection angle 140°
- Optimal mounting height 1 m — sensor test height
- Twilight setting 2 lx — fixed threshold
- Sneak-by guard Yes — detection zone also directly below sensor
- Segment masking Not provided
- Watt-o-matic P2: approximately 3%; duration adapts to available energy
- Soft light start No
- Parallel connection Not provided; each light operates independently
- Settings P0 off / P1 motion / P2 motion and 3% basic light; factory P0
- Time setting 10–30 s — automatically selected by software
- Power source Solar panel and built-in rechargeable battery
- Battery technology LiFePO₄ — lithium iron phosphate
- Battery capacity (mAh) 2500 mAh — current manufacturer product information
- Number of batteries 1
- Battery included Yes — built-in LiFePO₄ battery
- Replaceable battery Yes — replacement by manufacturer or qualified electrician
- Charging method Automatic solar charging; auxiliary micro USB charging in a dry room
- Charging port Micro USB
- Charging voltage (V) 5 V DC — micro USB charging
- Charging current (A) Up to 1 A — micro USB charging
- Charging time (h) Up to 6 h with micro USB adapter; solar charging depends on weather
- Runtime (h) Manufacturer maximum up to 60 days at 20 activations/night; depends on mode and conditions
- Charge indicator Red LED: flashes while charging, steady when fully charged
- Charging cable included No micro USB charging cable included
- Charger included No micro USB charger included
- Solar panel configuration Integrated adjustable panel above light head
- Solar cell technology Monocrystalline
- Adjustable panel angle Yes — rotation +180°/−150°; tilt 55°
- Solar charge controller included Yes — integrated charging and energy management
Product Description
STEINEL XSolar GL-S in anthracite is a solar LED bollard with a motion sensor for garden paths, patios and driveway areas. Its solar panel charges the built-in battery during the day and the light responds automatically to movement after dark. No mains connection or buried power cable is required. This is the Professional Line anthracite version, article 085681, identified as ANT V2 in the manufacturer technical files.
Warm light for paths and entrance areas
The integrated 6-LED system provides 150 lm at 3000 K warm white with a maximum complete-luminaire input of 1.2 W. Aim it towards the required section of path or patio. The manufacturer indicates an illuminated area of up to approximately 20 m²; the result depends on mounting height, aiming and the surroundings.
A stable 1178 mm tall bollard
This anthracite version measures 188 × 194 × 1178 mm (depth × width × height). It comes with one tall pole profile, a base plate and connecting pieces. Bolt the base plate to a stable, level surface; this is not a push-in ground spike. The shorter 628 and 808 mm arrangements belong to the modular silver 671211 package.
Aim the solar panel and light head separately
A monocrystalline glass solar panel is integrated at the top. It rotates +180°/−150° and tilts 55°; the LED head rotates ±60° and tilts 55°. A built-in compass helps you face the panel south while directing the light and sensor where needed. Choose a sunny site away from tree or roof shadows. This package is not supplied with a separate remote solar panel or extension lead.
140° motion detection with automatic ON time
The passive infrared (PIR) sensor detects moving heat sources over 140°. At the manufacturer test height of 1 m, reach is up to 5 m across the detection area or 1.5 m on direct approach. Aim across the normal walking direction and keep the field of view clear; the sensor does not detect through glass or walls. A sneak-by detection zone covers the area below the sensor. Individual segment masking is not provided.
Automatic operation begins at an ambient level of approximately 2 lx. The light software chooses an ON time of 10–30 seconds according to operating conditions. This is not a separately user-adjustable timer; the user selects the operating programme.
P1 or P2: movement-only or a low basic-light level
Use the selector below the light head: P0 is OFF, P1 provides light on movement and P2 adds approximately 3% basic light. In P2, movement raises the output to full brightness; afterwards it returns to a low orientation light. Basic-light duration adapts to available energy and seasonal conditions, so brightness throughout the whole night is not fixed.
The factory setting is P0. A brief test mode runs after activation. During periods with little sunshine, P1 helps conserve stored energy. Bluetooth, app control and networking with other lights are not provided.
Battery, charging and winter operation
A 2500 mAh lithium iron phosphate battery (LiFePO₄) is included according to the current manufacturer product information. The solar panel charges it automatically. Charging takes substantially longer in winter, prolonged overcast weather or shade. Available light depends on sunshine, stored charge and the operating mode.
The manufacturer claim of up to 60 days of light reserve refers to a charged battery and the manual condition of 20 motion activations per night. It does not mean 60 days of continuous illumination. Basic lighting and frequent triggering consume the reserve more quickly; winter performance depends on the sunshine available at the actual site.
If stored energy is insufficient, recharge through micro USB: 5 V, 1 A maximum. The manual specifies up to 6 hours for adapter charging. A micro USB charger and charging cable are not included. Charge only in a dry room because the open socket is not protected against water. A flashing red LED indicates charging; a steady red LED indicates full charge. Battery replacement is for the manufacturer or a qualified electrician, using the correct replacement for this exact version.
Protection, care and package contents
IP44 provides protection against splashing water and solid objects larger than 1 mm. Class III electrical protection refers to its safety extra-low-voltage battery supply. Impact resistance is IK03 and the specified operating temperature is −20…+40 °C. The housing is aluminium with a transparent plastic LED cover. Keep the solar panel clean with a soft cloth and mild detergent. Switch off and recharge periodically during prolonged storage to prevent deep discharge.
Included: luminaire with LED system, solar panel and rechargeable battery, base plate, one tall pole profile, connectors, mounting screws and wall plugs, instructions. Net weight: 2846 g. The light source is integrated and is not a replaceable bulb. 5-year manufacturer warranty subject to its terms.
Manufacturer documents and downloads
- Technical datasheet (EN, PDF)
- Installation and operating instructions including Latvian (PDF)
- Dimension drawing (EN, PDF)
- Photometric data (EN, LDT)
- Tender specification (EN, DOCX)
- EU declaration of conformity (DE, PDF)
- Technical datasheet (DE, PDF)
- Manufacturer warranty terms (DE, PDF)
- Dimension drawing (DE, PDF)
- Tender specification (DE, DOCX)
Videos referenced by the manufacturer: Video 1
