Item specifics
- Light source type Replaceable E27 bulb; no integrated LED module
- Replaceable light source Yes — E27 bulb
- Number of bulbs 1
- Max. power 15 W — maximum fitted bulb wattage
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour anthracite
- Housing material UV-resistant plastic with aluminium trim panel
- Diffuser material Opal plastic
- Dimensions (L×W×H) 108 × 122 × 261 mm (depth × width × height)
- Mounting type Outdoor wall mounting
- IP rating IP44
- IK rating IK07
- Protection class (electrical) II — double insulation
- Operating temperature (Ta) −20 to +40 °C
- Control method Automatic switching on movement below the selected ambient-light level; controls on the light
- Dimming method None — do not connect the light to a dimmer
- Weight 619 g (net)
- Warranty 3-year manufacturer warranty under its terms
- Socket E27
- Included E27 bulb not included; purchase separately
- Sensor type Passive infrared motion sensor (PIR); detects heat radiation from moving bodies
- Reach Up to 6 m / 57 m² when crossing the detection zone; up to 3 m / 14 m² when approaching the sensor directly
- Detection angle 180°
- Optimal mounting height 2 m
- Maximum mounting height 3 m
- Twilight setting 2–1000 lx — ambient-light threshold for motion-triggered switching
- Sneak-by guard No separate detection zone directly beneath the sensor
- Segment masking With the supplied masking stickers
- Watt-o-matic None — there is no low-level orientation-light function
- Interface & control Mains connection and local controls; no Bluetooth or remote control
- Settings Time and twilight controls; sensor swivels 90° vertically; masking stickers
- Time setting 5 sec–35 min — light-on time after the last detected movement
Product Description

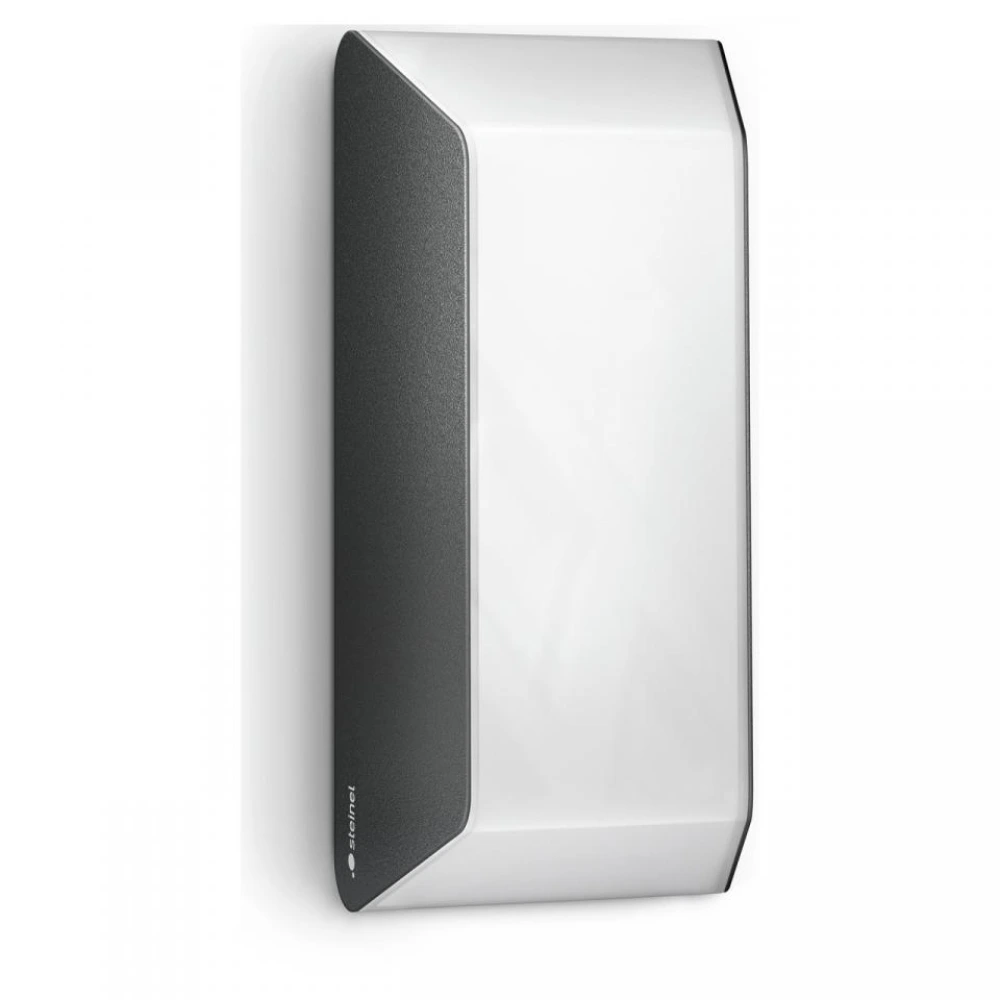

STEINEL L 30 S, anthracite, is an outdoor wall light with a motion sensor for entrances, facades, terraces and courtyards. Its slim housing combines an aluminium trim panel with an opal plastic diffuser for pleasant light around the house wall. An E27 lamp holder lets you choose and later replace the bulb. Article number 068899.
Main benefits
- 180° motion sensor: the light switches on automatically when movement is detected and ambient light is below the selected threshold.
- Up to 6 m reach: suitable for an entrance path, passage beside the house or terrace, with a detection zone that can be adapted to the site.
- 5 sec–35 min light-on time: choose a short period for passing through or a longer period for extra time at the entrance.
- 2–1000 lx twilight setting: select operation only in darkness or in brighter conditions as well.
- Replaceable E27 bulb up to 15 W: choose the brightness and light colour to suit the location; bulb sold separately.
- IP44 and a UV-resistant housing: designed for outdoor wall mounting with protection against water splashes.
- Anthracite housing with an aluminium panel: a compact, contemporary solution for different facades.
Choosing the bulb
The light takes one E27 bulb rated at a maximum of 15 W. Suitable for E27 LED or energy-saving bulbs. Luminous flux, colour temperature and actual power consumption depend on the fitted bulb. The bulb is not included; this is not a light with an integrated 15 W LED module. Replacing a worn bulb or changing the light colour does not require replacing the entire fitting.
Do not connect this fitting to a dimmer. Use the intended on/off control.
Sensor operation and positioning
The passive infrared motion sensor (PIR) responds to heat radiation from moving bodies. Reach is up to 6 m (57 m²) across the detection zone and up to 3 m (14 m²) when approaching directly. For the best detection, position it to the side of the expected direction of movement. The optimum mounting height is 2 m; the maximum is 3 m. Walls and glass block the heat radiation detected by the sensor.
The sensor swivels 90° vertically, while the supplied masking stickers restrict the detection zone, for example to exclude an adjacent pavement from the detection zone. Set the light-on time and twilight threshold using the controls on the fitting.
Further technical information, installation and package contents
Construction and connection
Dimensions 108 × 122 × 261 mm (depth × width × height); net weight 619 g. The UV-resistant plastic housing has an aluminium trim panel and an opal plastic diffuser. Designed for outdoor wall mounting.
Supply 220–240 V AC, 50–60 Hz; electrical protection class II with double insulation. Protection IP44, impact resistance IK07 and operating temperature −20 to +40 °C. Connect according to the manufacturer’s instructions with the supply isolated.
Settings and everyday use
The lowest twilight setting enables switching in darkness; the highest setting can be used for a daylight test. The time setting determines how long the light remains on after the last detected movement. Each new detection restarts the timer; after switching off there is a pause of approximately one second before movement is detected again. Start with the shortest time when checking the detection zone. To reduce unwanted switching, avoid moving branches or heat sources within the coverage area, or mask the relevant zone.
This model has no standby basic light, adjustable main-light brightness, automatic storage of the twilight threshold (Teach-in), or remote control. It has no soft light start, separate detection directly beneath the sensor or interconnection function between fittings.
Package contents and warranty
Supplied with one light and mounting accessories (3 screws, 3 wall plugs and 3 spacers), plus sensor-zone masking stickers. The E27 bulb and self-adhesive house-number set are not included. 3-year manufacturer warranty under its terms. Clean the sensor lens and housing with a soft damp cloth; avoid aggressive cleaning agents.
Manufacturer documents
- Technical datasheet (EN, PDF)
- L30 / L30S operating instructions (PDF, includes EN and LV)
- Wiring diagram (PDF)
- Dimension drawing (PDF)
- EU declaration of conformity (PDF)
- L30 / L30S quick installation guide (PDF)
