Item specifics
- Light source type Replaceable E27 bulb; no integrated LED module
- Replaceable light source Yes — E27 bulb
- Number of bulbs 1
- Max. power 15 W — maximum fitted bulb wattage
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour anthracite
- Housing material UV-resistant plastic with aluminium trim panel
- Diffuser material Opal plastic
- Dimensions (L×W×H) 108 × 122 × 261 mm (depth × width × height)
- Mounting type Outdoor wall mounting
- IP rating IP44
- IK rating IK07
- Protection class (electrical) II — double insulation
- Operating temperature (Ta) −20 to +40 °C
- Control method On/off via external switch; no built-in sensor
- Dimming method None — do not connect the light to a dimmer
- Weight 572 g (net)
- Warranty 3-year manufacturer warranty under its terms
- Socket E27
- Included No — sold separately
Product Description

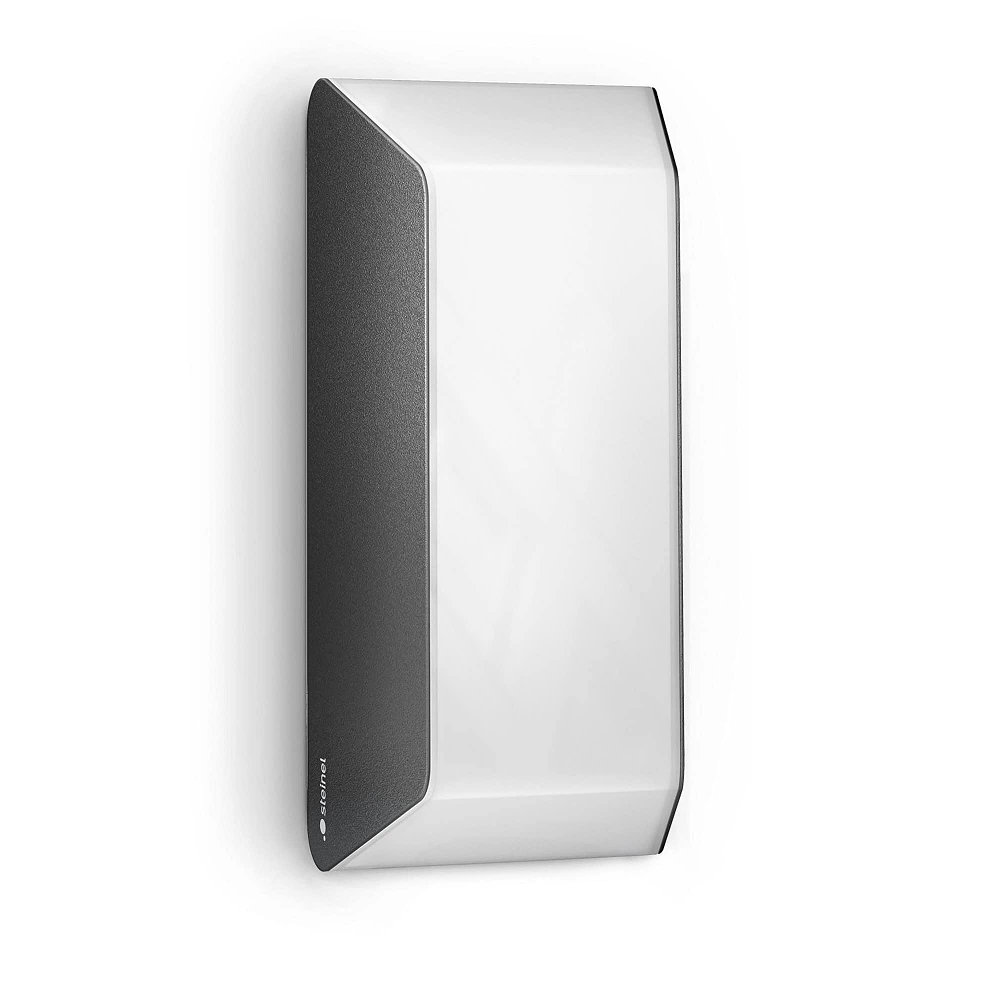

STEINEL L 30, anthracite, is an outdoor wall light without a sensor for entrances, facades, terraces and courtyards. Its slim housing combines an aluminium trim panel with an opal plastic diffuser for pleasant light around the house wall. An E27 lamp holder lets you choose and later replace the bulb. Article number 068882.
Main benefits
- External switch control: suitable where you want to choose when the light stays on. This version has no built-in motion or twilight sensor.
- Replaceable E27 bulb up to 15 W: choose the brightness and light colour to suit the location; bulb sold separately.
- IP44 and a UV-resistant housing: designed for outdoor wall mounting with protection against water splashes.
- Anthracite housing with an aluminium panel: a compact, contemporary solution for different facades.
Choosing the bulb
The light takes one E27 bulb rated at a maximum of 15 W. Suitable for E27 LED or energy-saving bulbs. Luminous flux, colour temperature and actual power consumption depend on the fitted bulb. The bulb is not included; this is not a light with an integrated 15 W LED module. Replacing a worn bulb or changing the light colour does not require replacing the entire fitting.
Do not connect this fitting to a dimmer. Use the intended on/off control.
Control and installation
This is the L 30 version without a sensor. It is switched on and off by a separate wall switch or another suitable external on/off control. It does not detect movement or twilight itself. For automatic switching, a separate L 30 S model with a motion sensor is available in the same family.
Further technical information, installation and package contents
Construction and connection
Dimensions 108 × 122 × 261 mm (depth × width × height); net weight 572 g. The UV-resistant plastic housing has an aluminium trim panel and an opal plastic diffuser. Designed for outdoor wall mounting.
Supply 220–240 V AC, 50–60 Hz; electrical protection class II with double insulation. Protection IP44, impact resistance IK07 and operating temperature −20 to +40 °C. Connect according to the manufacturer’s instructions with the supply isolated.
Package contents and warranty
Supplied with one light and mounting accessories (3 screws, 3 wall plugs and 3 spacers). The E27 bulb and self-adhesive house-number set are not included. 3-year manufacturer warranty under its terms. Clean the housing with a soft damp cloth; avoid aggressive cleaning agents.
Manufacturer documents
- Technical datasheet (EN, PDF)
- L30 / L30S operating instructions (PDF, includes EN and LV)
- Wiring diagram (PDF)
- Dimension drawing (PDF)
- EU declaration of conformity (PDF)
- L30 / L30S quick installation guide (PDF)
