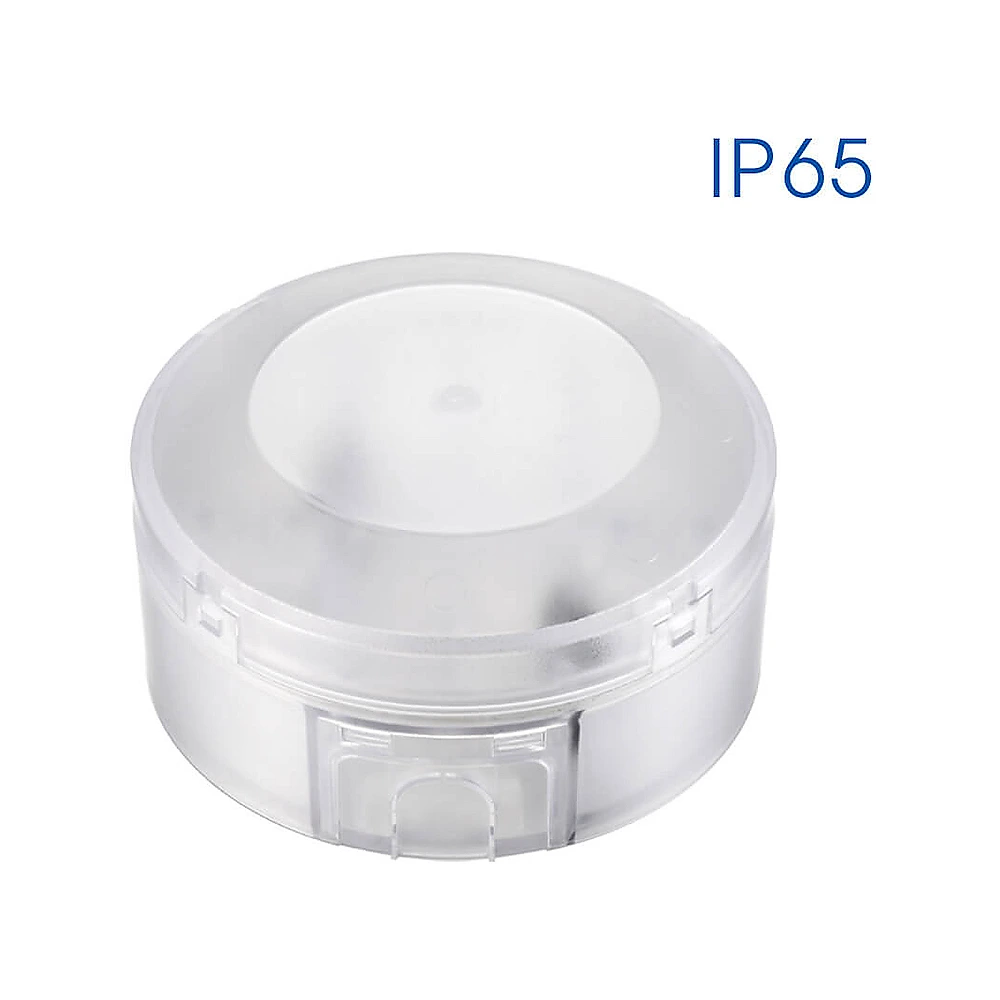

VIVALUX INDIRA VIV003885 is a transparent IP65 surface protective box for the compatible VIVALUX OSCAR MW18/IN-W motion sensor. It helps protect the sensor from dust, moisture and water jets where the standard sensor housing alone is not sufficient.

Benefits

• IP65 protection: suitable for more demanding environments and outdoor areas.
• UV-resistant material: polycarbonate is intended for prolonged exposure to light and weather.
• Flexible installation: the box can be mounted horizontally or vertically.
• Specific compatibility: designed for the OSCAR MW18/IN-W sensor.

Where is this model suitable?

Suitable for canopies, entrances, technical rooms, warehouses, covered outdoor areas and other locations where a compatible motion sensor requires additional mechanical and environmental protection.

What should be checked before purchase?

• Product type: this is a protective box, not a motion sensor.
• Package: the OSCAR MW18/IN-W sensor is not included.
• Compatibility: confirm the sensor model before purchase.
• Dimensions: the box is 134 mm in diameter and 65.5 mm high.

Installation and safety

Install the box on a flat and stable surface. To retain the IP65 rating, complete cable entries, seals and connections according to the manufacturer's instructions. Electrical work should be carried out by a qualified person.

Specification at a glance

• Type: sensor protective box
• IP rating: IP65
• Material: UV-resistant polycarbonate
• Colour: transparent / frosted
• Dimensions: Ø134 × 65.5 mm
• Installation: surface-mounted
• Orientation: horizontal or vertical
• Compatibility: OSCAR MW18/IN-W

Tip

Before installation, assess the sensor detection direction—the protective box must not unnecessarily obscure or restrict the required detection area.
