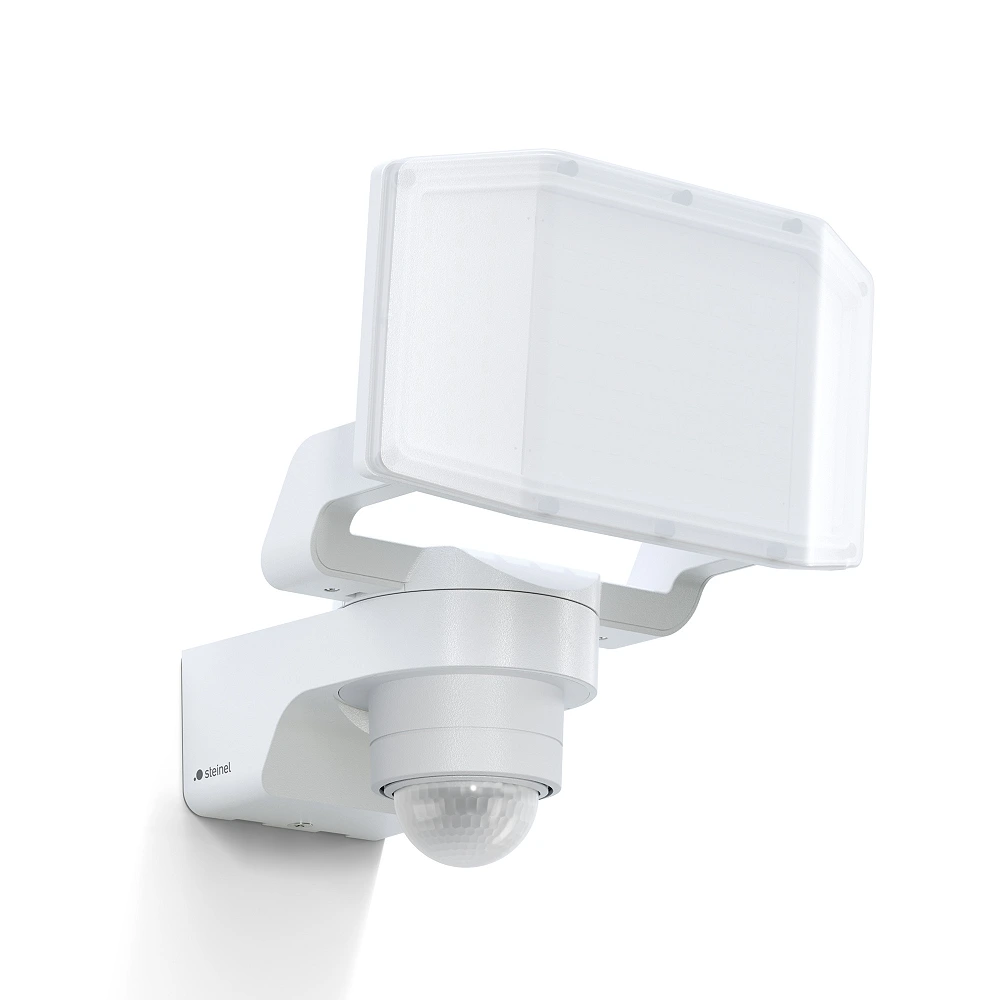

STEINEL XLED PRO Expanse S outdoor LED sensor floodlight, 14.3 W, 1642 lm, 3000 K, IP54, white — 091217
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Light source type Integrated LED system with three light surfaces
- Replaceable light source No — the integrated LED light source cannot be replaced
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour White
- Housing material Polycarbonate (PC)
- Adjustable light direction Manual swivelling, tilting and locking of the floodlight head
- Dimensions (L×W×H) 195 × 195 × 198 mm (depth × width × height)
- Mounting type Wall mounting; surface-mounted or concealed supply cable; corner installation requires separately purchased bracket 055615
- Adjustable head Yes — the head with three light surfaces can be swivelled, tilted and locked
- Rotation angle (°) LED head 180° horizontally; sensor unit 360°
- Tilt angle (°) LED head 180° vertically
- IP rating IP54
- IK rating IK03
- Protection class (electrical) Class II — double or reinforced insulation
- Operating temperature (Ta) −20…+40 °C
- Control method Motion and twilight sensor; time and twilight controls; wired interconnection
- Dimming method Not dimmable; an external dimmer must not be used
- Basic light No basic-light mode
- Soft light start No — no soft light start
- Driver included Yes — integrated LED control gear
- Replaceable driver No — the integrated LED control gear cannot be replaced
- Weight 600 g — net weight
- Warranty Manufacturer warranty: 5 years, subject to STEINEL warranty terms
- Accessories Luminaire with integrated LED and control gear, wall mount, cable seals, sensor masking pieces; corner bracket 055615 is not included and is purchased separately
- Wattage 14.3 W — total luminaire input at full light output
- Luminous flux 1642 lm — total luminaire light output
- Luminous efficacy (lm/W) 115 lm/W — complete luminaire
- Colour temperature (CCT) 3000 K — warm white
- Colour rendering index (CRI/Ra) CRI / Ra 82; red colour rendering index R9 = 18
- Colour consistency (SDCM) SDCM 3 — initial colour consistency
- Power factor (PF) 0.72 — according to manufacturer instructions
- Dimmable No
- Energy class E — integrated light-source class
- Energy consumption (kWh/1000 h) 15 kWh/1000 h — light-source energy-label value
- Rated Lifetime (hours) L70B50 >60,000 h at 25°C
- SKU 091217
- EAN 4007841091217
- Included Yes — integrated LED light source; no separate bulb required
- Sensor type Passive infrared (PIR)
- Reach Up to 12 m — maximum motion detection reach
- Detection angle 240°
- Optimal mounting height 2 m
- Maximum mounting height 6 m
- Twilight setting 2–2000 lx; set using the control on the sensor
- Sneak-by guard Yes — detection directly beneath the sensor
- Segment masking Yes — unwanted detection sectors can be masked
- Output 0.50 W — sensor standby input with the light off (Psb)
- Interface & control Wired connection: master/master and sensor/slave; no Bluetooth
- Settings Time and twilight controls; sensor aiming and segment masking; no electronic or mechanical reach adjustment and no Teach-in
- Time setting 10 s–15 min after the last detected movement
Product Description
The STEINEL XLED PRO Expanse S is a Professional Line outdoor LED sensor floodlight for courtyards, driveways, entrances and areas around buildings. Three LED light surfaces in one adjustable head provide broad panoramic illumination. It delivers 1642 lm of warm white 3000 K light with 14.3 W input. Housing colour: white; article number: 091217.
Wide illumination with adjustable direction
- Three light surfaces distribute light across the surrounding area. This also suits gardens, terraces, balconies and warehouse approaches.
- The LED head swivels through 180° horizontally and tilts through 180° vertically. It can be locked in the chosen position. The complete head with its three light surfaces is adjusted to direct illumination where it is needed.
- 1642 lm and 115 lm/W describe the output and efficacy of the complete fitting. Its 3000 K light has a warm white colour.
- CRI/Ra 82 describes colour rendering, R9 = 18 describes saturated red rendering and SDCM 3 indicates initial light-colour consistency.
Key technical specifications
| Wattage | 14.3 W — total luminaire input at full light output |
|---|---|
| Luminous flux | 1642 lm — total luminaire light output |
| Colour temperature (CCT) | 3000 K — warm white |
| Dimensions (L×W×H) | 195 × 195 × 198 mm (depth × width × height) |
| IP rating | IP54 |
| IK rating | IK03 |
| Weight | 600 g — net weight |
| Warranty | Manufacturer warranty: 5 years, subject to STEINEL warranty terms |
| Detection angle | 240° |
| Reach | Up to 12 m — maximum motion detection reach |
| Time setting | 10 s–15 min after the last detected movement |
| Twilight setting | 2–2000 lx; set using the control on the sensor |
240° motion sensing with controls on the fitting
The passive infrared sensor (PIR) detects changes caused by moving heat sources. Its detection angle is 240°, with a maximum reach of 12 m. These figures describe sensor detection, not the size of the illuminated area. Detection directly beneath the sensor is also provided.
Rotary controls set the light-on time from 10 seconds to 15 minutes and the twilight threshold from 2 to 2000 lx. A lower lux value allows activation in darker surroundings; daytime mode enables sensing in daylight. Each newly detected movement restarts the timer. Unwanted detection sectors can be masked. There is no separate electronic or mechanical reach control and no Teach-in function.
Shared wired control
In a master/master connection, the motion detectors of linked sensor versions can switch the shared lighting. In a sensor/slave connection, the sensor-switched supply also switches compatible floodlights without sensors. Wiring must follow the manufacturer diagram and the permitted electrical load.
This S version has no Bluetooth or app control. Choose the XLED PRO Expanse SC version for Bluetooth control and grouping. The luminaire cannot be dimmed and has no basic-light or soft-start mode.
The sensor unit rotates through 360°; this is its mechanical adjustment range, separate from the motion detection angle. Factory settings are 10 seconds and daytime mode (2000 lx). After the light switches off, it takes approximately one second before motion detection resumes.
Installation, protection and supplied components
The floodlight is designed for outdoor wall mounting and a 220–240 V, 50–60 Hz mains supply. The supply cable may be concealed or surface-mounted. IP54 provides protection against harmful dust ingress and splashing water. IK03 describes housing impact resistance; electrical protection class II means double or reinforced insulation. The manufacturer specifies a supply current of 80 mA. The housing is polycarbonate, with an operating temperature range of −20…+40°C.
The optimum sensor mounting height is 2 m, with a maximum of 6 m. Choose a position without walls, trees or other obstacles blocking detection; movement across the detection zone is generally detected more reliably.
The LED light source and control gear are integrated and included — no separate bulb is required. The package includes the wall mount, cable seals and sensor masking pieces. Corner bracket 055615 is not included; it is purchased separately for installation on an outside corner. Disconnect the power before installation; a qualified professional should make the electrical connection and follow the manufacturer instructions. Adjust the head only once the fitting has cooled down.
Service life, energy and warranty
L70B50 >60,000 h at 25°C describes LED life: under these conditions, at least half of the LEDs are expected to retain at least 70% of their initial light output after the stated operating period. This is separate from the warranty period. The integrated light source has energy class E; the energy-label value is 15 kWh/1000 h. Actual energy use depends on operating duration.
Sensor standby input with the light off is 0.50 W (Psb).
The LED light source and control gear cannot be replaced. The manufacturer specifies a 5-year warranty subject to STEINEL warranty terms.
Clean the sensor lens with a lightly dampened cloth without cleaning agents. Rapid temperature changes, wind or precipitation may cause unwanted switching, so careful positioning and detection-zone adjustment matter.
