STEINEL GL 80 C outdoor LED bollard without sensor, Bluetooth, 9.1 W, 650 lm, 3000 K, IP44, anthracite — 079284
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Light source type Integrated STEINEL LED system
- Replaceable light source No — the integrated LED light source cannot be replaced
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour Anthracite
- Housing material Aluminium column and base; UV-resistant plastic light head
- Diffuser material Opal plastic
- Diffuser colour Opal white
- Dimensions (L×W×H) 161 × 110 × 633 mm (depth × width × height) according to the manufacturer’s data table; mounting drawing height is 648 mm
- Mounting type Freestanding outdoor bollard; fix the base to a firm surface without burying it
- IP rating IP44 — protection against solid objects of 1 mm or larger and splashing water
- IK rating IK03 — enclosure impact-resistance rating
- Protection class (electrical) Class I — protective earth conductor (PE) must be connected
- Operating temperature (Ta) −20…+40°C
- Control method STEINEL Connect app, Bluetooth Mesh groups and weekly schedules; no built-in motion sensor or photocell
- Dimming method Built-in Bluetooth control; main-light brightness 10–100% and off
- Remote control included No — remote control is not included
- Basic light Basic light 10–100% only with a compatible Bluetooth sensor light; no photocell of its own
- Soft light start Yes — the light fades up and down gradually
- Driver included Yes — integrated LED control gear
- Replaceable driver No — the integrated LED control gear cannot be replaced
- Weight 1370 g — net weight
- Warranty Manufacturer warranty: 3 years, subject to STEINEL warranty terms
- Accessories Light with LED system and control gear, column profile, base plate, Allen key, 4 base-fixing screws and 4 plugs, 2 × 2 connecting screws
- Wattage 9.1 W — manufacturer-specified rated output
- Luminous flux 650 lm — total luminaire light output
- Luminous efficacy (lm/W) 71 lm/W — complete luminaire
- Colour temperature (CCT) 3000 K — warm white
- Colour rendering index (CRI/Ra) CRI / Ra 82 — colour rendering index
- Colour consistency (SDCM) SDCM 3 — initial light-colour consistency
- Dimmable Yes — brightness is adjusted in the STEINEL Connect app
- Control protocol Bluetooth Mesh; 2.4–2.48 GHz, 5 dBm / 3 mW
- Energy class F — integrated LS-0021 light-source energy class
- Energy consumption (kWh/1000 h) 10 kWh/1000 h — light-source energy-label value
- Rated Lifetime (hours) L70B50 >60,000 h at 25°C
- SKU 079284
- EAN 4007841079284
- Included Yes — integrated LED light source; no separate bulb required
- Manual override Yes — light can be switched on in the app or on a schedule without a motion command
- Standby power consumption (W) 0.45 W — network standby consumption (Pnet)
Product Description

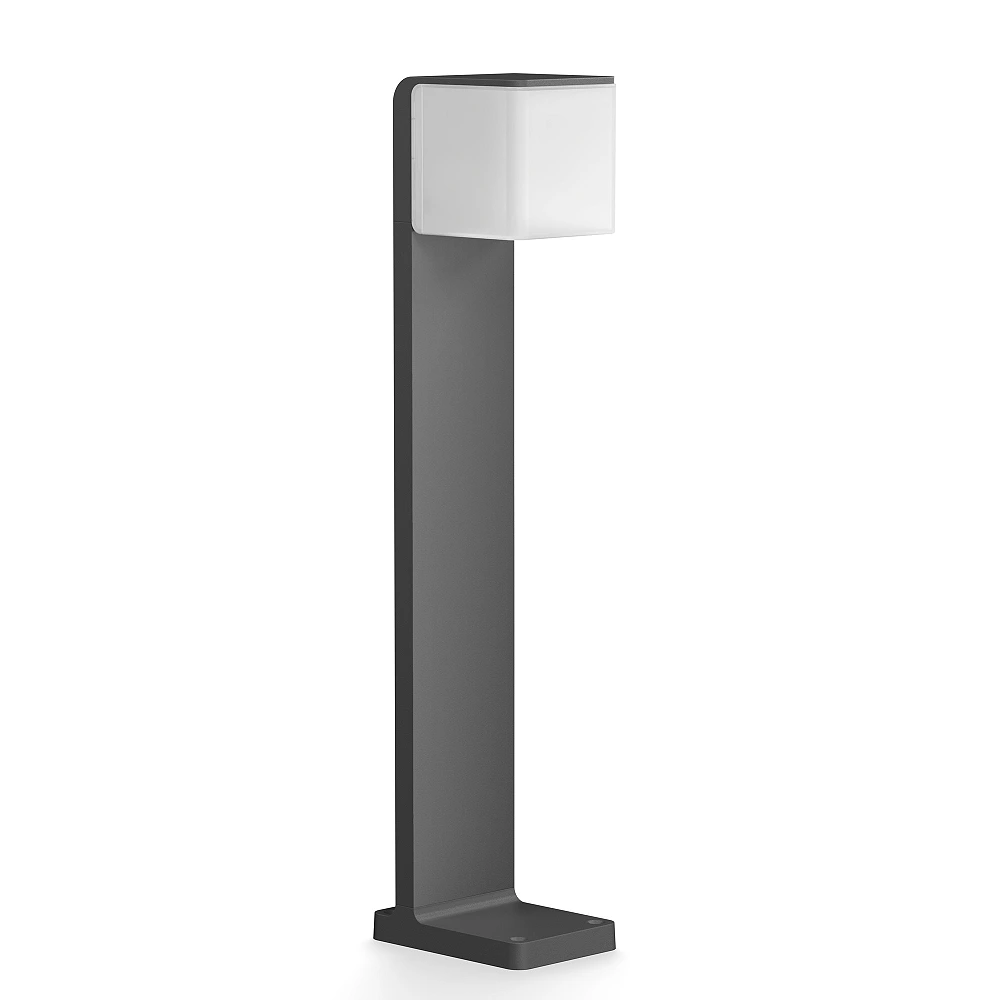

STEINEL GL 80 C is an anthracite outdoor LED bollard without sensor for paths, driveways, courtyards and gardens. A rectangular column and cube-shaped light head give it a clean, restrained design. Its integrated LED system provides 650 lm at 9.1 W with 3000 K warm-white light. Settings and groups are managed using Bluetooth Mesh and the STEINEL Connect app. Article number: 079284.
Key technical specifications
| LED output and luminous flux | 9.1 W / 650 lm |
|---|---|
| Light colour and colour rendering | 3000 K — warm white; CRI / Ra 82 |
| Control | Bluetooth Mesh and the STEINEL Connect app |
| Sensor | No built-in motion sensor or photocell |
| Brightness control | 10–100% and off |
| Soft light start | Yes |
| Protection | IP44, IK03, electrical protection class I — protective earth required |
| Dimensions | 161 × 110 × 633 mm — depth × width × height according to the manufacturer’s data table; mounting drawing height 648 mm |
| Net weight | 1370 g |
| Warranty | 3 years, subject to manufacturer warranty terms |
C version — Bluetooth control without its own sensor
GL 80 C has no built-in motion sensor or photocell. It can be switched, dimmed and operated on a weekly schedule in the app. Response to movement or automatic night-time basic light requires a compatible STEINEL sensor light in the Bluetooth group, such as GL 80 SC.
The C version works well in a row of matching bollards: an SC light detects people, while the C lights respond to the group command. A standalone GL 80 C has no detection angle, reach or twilight threshold of its own. This C version also has soft light start.
Settings and lighting groups
- Main light 10–100%: select the brightness you need or switch the light off.
- Soft light start and fade-out: brightness changes gradually.
- Bluetooth Mesh groups: control compatible lights together from a smartphone or tablet.
- Weekly schedule: set switching times for individual days of the week.
- Continuous light: the light can remain on without a motion command.
- Basic light 10–100%: available only with a compatible Bluetooth sensor light. Motion and twilight control come from the group sensor.
Bluetooth provides control, not electrical power. Each light needs a mains connection. Brightness is adjusted in the STEINEL Connect app; no separate remote control is required.
Understanding light output and energy ratings
650 lm is the complete luminaire’s light output; 71 lm/W is its luminous efficacy. 3000 K describes a warm-white colour, while CRI / Ra 82 describes colour rendering. SDCM 3 indicates initial light-colour consistency.
The integrated LS-0021 light source has energy class F and an energy-label value of 10 kWh/1000 h; its EPREL entry is 804393. The label applies to the light source. The luminaire’s specified rated output is 9.1 W, while network standby consumption Pnet is 0.45 W.
The manufacturer specifies L70B50 lifetime above 60,000 hours at 25°C. L70B50 is a statistical lumen-maintenance rating: at the end of the stated period, at least half the evaluated light sources retain at least 70% of their initial output. It is not a warranty period or a guarantee of every light’s operating life.
Installation, materials and protection
GL 80 is designed for mounting on a firm outdoor base, for example beside a path or driveway. Secure the base plate to the surface; do not bury the light in the ground. The column and base are aluminium, the light head is UV-resistant plastic and the diffuser is opal plastic. Dimensions are 161 × 110 × 633 mm (depth × width × height). The manufacturer’s data table gives a height of 633 mm, while the mounting drawing shows 648 mm; allow for the drawing when planning installation space.
Supply: 220–240 V, 50–60 Hz. Electrical protection class I requires connection of the protective earth conductor (PE). IP44 means protection against solid objects of 1 mm or larger and splashing water. IK03 is the enclosure impact-resistance rating. Permitted operating temperature is −20…+40°C.
The manufacturer’s instructions require at least 3 m clearance from a Wi-Fi router or access point. This C model has no iHF sensor of its own and can be grouped with a suitably positioned SC sensor light.
Package contents and care
The package contains one light with an integrated LED system and control gear, a column profile, base plate, Allen key, 4 base-fixing screws, 4 plugs and 2 × 2 connecting screws. The connecting screws join the column to the base and light head. No separate bulb is needed. The LED light source and control gear cannot be replaced. A remote control and house-number stickers are not included. The manufacturer warranty is 3 years, subject to STEINEL terms.
No regular technical maintenance is required. Clean the housing with a lightly damp cloth without detergents; disconnect the power first and keep water away from electrical parts. Mains installation should be carried out by a qualified installer.
The package-contents image is a manufacturer illustration; the model supplied for this listing is GL 80 C, article 079284.
GL 80 colour and sensor versions
GL 80 SC 055479: anthracite with iHF sensor; GL 80 SC 055486: silver with iHF sensor; GL 80 C 079284: anthracite without its own sensor. All three have Bluetooth Mesh, soft light start, 9.1 W, 650 lm and 3000 K light.
This product is GL 80 C, anthracite, article 079284, EAN 4007841079284. Related products show the other GL 80 versions, helping you choose a colour or create a matching group of sensor and non-sensor bollards.
