STEINEL Hallway DALI-2 APC AP corridor presence detector, HF, 25 × 3 m, IP54, white — 086299
STEINEL Hallway DALI-2 APC AP corridor presence detector, HF, 25 × 3 m, IP54, white — 086299
STEINEL Hallway DALI-2 APC AP corridor presence detector, HF, 25 × 3 m, IP54, white — 086299
STEINEL Hallway DALI-2 APC AP corridor presence detector, HF, 25 × 3 m, IP54, white — 086299
STEINEL Hallway DALI-2 APC AP corridor presence detector, HF, 25 × 3 m, IP54, white — 086299
STEINEL Hallway DALI-2 APC AP corridor presence detector, HF, 25 × 3 m, IP54, white — 086299

STEINEL Hallway DALI-2 APC AP corridor presence detector, HF, 25 × 3 m, IP54, white — 086299

232.50€
Ex Tax: 192.15€
Brand:
Product Code: 086299
Availability: Delivery time ~2 weeks
Viewed 6 times

Item specifics

  • Dimming method DALI dimming commands
  • Weight 284 g (net)
  • Detection angle 360°; elongated corridor pattern
  • Time setting 10 s–60 min; common range of current page and manual table
  • Twilight setting 2–2000 lx; separate brightness-dependent Nightmatic mode
  • Segment masking No; electronic reach and sensitivity adjustment in both directions
  • Manual control S button input and supported DALI buttons; configurable in addressed mode
  • Watt-o-matic Basic lighting 10–50%; time-based or brightness-based control
  • Output type DALI-2 APC controller; up to 64 control gears; no COM1 relay
  • Interface & control DALI-2 APC; broadcast or up to 4 addressed DALI groups; Bluetooth Mesh
  • Settings STEINEL Connect app
  • Colour / RAL White / RAL 9003
  • In the box Hallway DALI-2 APC AP 086299 detector; luminaires, additional external power supplies/actuators and separate buttons not included
  • Manufacturer SKU 086299
  • EAN 4007841086299
  • Sensor type High frequency (HF), 5.8 GHz; two corridor sensing elements
  • Motion detection 25 × 3 m at 2.8 m; radial and tangential; corridor pattern
  • Application Indoors; corridors and passageways
  • Installation Surface-mounted AP ceiling installation
  • Installation height 2–4 m; optimum 2.8 m
  • Light-level setting 2–2000 lx; Teach
  • Voltage 220–240 V, 50–60 Hz
  • Output Standby <0.5 W (Hallway)
  • Functions Fully/semi-automatic, constant-light control, Nightmatic, Light sensor mode, basic lighting, neighbouring groups, multizone
  • Housing UV-resistant plastic; white
  • IP rating IP54; intended for indoors
  • Dimensions 123 × 123 × 62 mm (length × width × overall height)
  • Temperature range −20 to +50 °C
  • Warranty 5 years subject to manufacturer terms

Product Description

Corridor sensing with a DALI lighting controller

STEINEL LuxMaster Hallway DALI-2 APC is a white surface-mounted AP presence detector for indoor ceiling installation. The manufacturer article offered here is 086299. APC identifies an application controller that uses the sensing information to control suitable DALI lighting control gear. It is not simply a DALI IPD input device that forwards measurements to a separate controller. Hallway uses two 5.8 GHz high-frequency sensing elements to create an elongated movement-detection area, making it suitable for corridors where people approach the sensor from either direction.

Coverage and positioning

The specified detection area is 25 × 3 m at a mounting height of 2.8 m; the installation range is 2–4 m. The stated 360° angle should not be interpreted as a circular area with a 25 m diameter. Reach and sensitivity can be set independently for the two corridor directions, with the STEINEL logo providing an orientation reference. HF sensing may also respond to movement through glass, wood or lightweight partitions. Commissioning therefore involves checking the actual boundaries and reducing the range electronically where necessary. This Hallway model does not provide TruePresence breathing-micro-movement detection, and the TruePresence-specific scenarios in the shared family manual must not be assumed to apply to it.

Supply, DALI capacity and grouping

The detector requires a 220–240 V, 50–60 Hz mains supply and controls the lighting through DALI commands rather than a COM1 load relay. The manufacturer specifies up to 64 DALI electronic control gears. Broadcast operation treats the connected luminaires as one group, while addressed operation supports up to four DALI groups and an additional multizone. The STEINEL Connect app assigns luminaires to groups corresponding to the actual corridor sections. The manual lists a manufacturer-guaranteed DALI supply current of 128 mA, a guaranteed value of 54 mA under IEC 62386-101, and a maximum supply current of 250 mA. Device count must therefore be checked against the current requirements of the actual line; the maximum figure is not a continuously guaranteed design budget.

Lighting modes and dimming

Constant-light control adjusts DALI dimming in response to the measured daylight contribution. Fully automatic operation switches the lighting on and off, while semi-automatic operation normally requires a user button to turn it on and then switches it off after the configured delay. The separate Light sensor mode regulates illumination with motion detection suspended. Nightmatic mode switches the lighting according to ambient brightness. The light-level setting is 2–2000 lx. Use the 10 s–60 min timing range supported by both the current article table and the manual technical specifications; another paragraph in the manual mentions a five-second minimum. Basic lighting can maintain a reduced level between movement events, and the neighbouring-group function can activate a defined adjacent zone in advance.

Buttons, networking and installation

A local S button input and suitable DALI buttons are supported, with addressed button functions assigned during configuration. Bluetooth Mesh provides supported wireless grouping, while DALI component compatibility and bus topology still require their own design checks. The manual restricts DALI-2 certification to single-master applications with control gear; installations with multiple controllers or additional input devices have separate manufacturer support conditions. The AP housing measures 123 × 123 × 62 mm, allowing the available ceiling space and surface cable entry to be checked before installation. The net weight is 284 g, the enclosure rating is IP54, and the ambient operating range is −20 to +50 °C. The enclosure rating does not change the intended indoor application. Luminaires, lighting control gear and separate buttons are not supplied with the detector. As a standalone sensor without a light source, it does not carry a luminaire energy-label or EPREL claim.

Image context

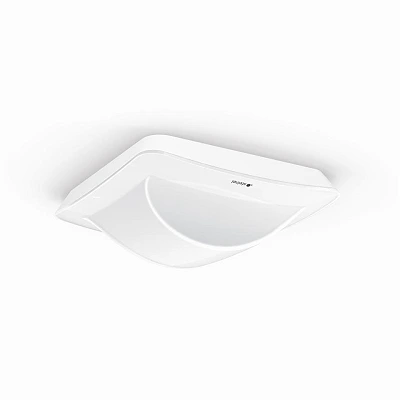

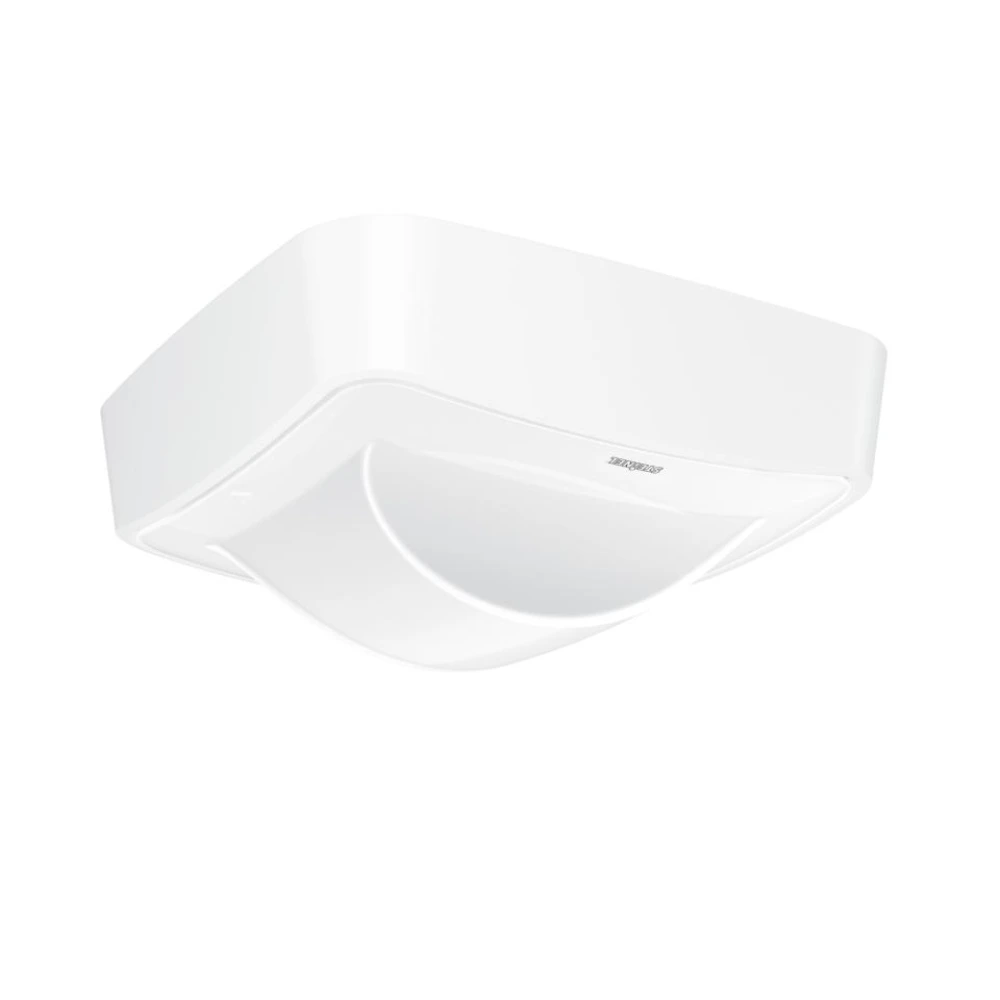

The main image shows the offered white Hallway DALI-2 APC AP, article 086299. The corridor photograph is a manufacturer application illustration: the exact installed model, interface and colour are not established, and room equipment is not included. The other images show the detection pattern and dimensions for the relevant mounting type.
