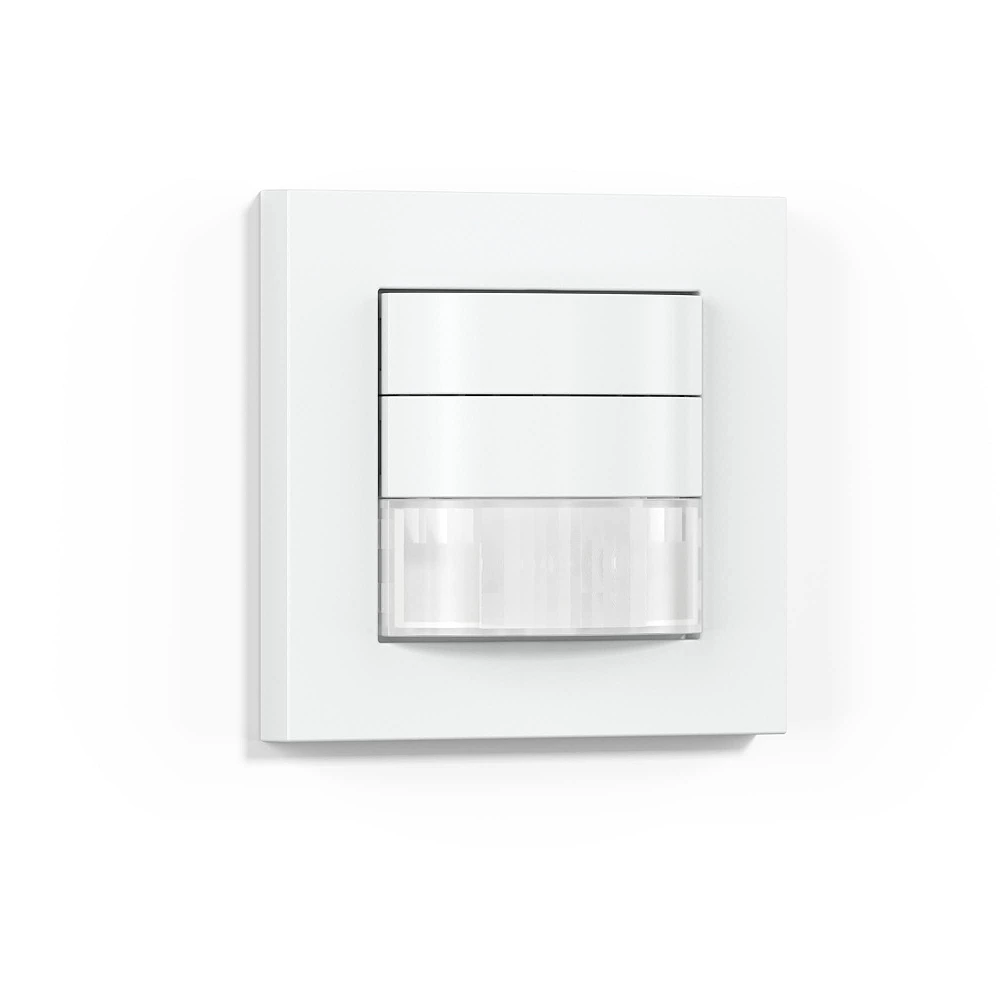

STEINEL IR 180 COM1 wall presence sensor with button, PIR, 180°, r 12 m, IP20, white — 029944
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Weight 119 g
- Mounting type Using concealed-box mounting screws
- Recessed depth Rear insertion 30 mm; total device depth 50 mm
- Number of detection zones 96
- Detection angle 180°; aperture 90°
- Time setting 30 s–30 min; IQ 5–20 min; pulse approximately 2 s / pause 8 s
- Sneak-by guard Yes
- Segment masking Not provided
- Manual override 4 h ON/OFF via compatible RC 5 remote
- Manual control Integrated button and S input; ON or ON/OFF configuration
- Relay load Resistive 2000 W; ECG 600 W per manual; fluorescent 1000/400/500 VA (uncorrected/series/parallel); LV halogen 2000 VA
- LED load (W) 100 W (LED<2 W); 300 W (2<LED<8 W); 600 W (LED>8 W); 176 µF; max. 8 LED/fluorescent lamps
- Output type COM 1: one switched-live relay, on/off
- Interface & control Wired COM 1; no onboard Bluetooth Mesh; Smart Remote is optional
- Settings DIP switches and potentiometers; optional RC 5, RC 8 or Smart Remote
- Accessories Optional RC 5 (592806), RC 8 (559410), Smart Remote (009151) and adapter frames
- Colour / RAL White, RAL 9010
- Manufacturer SKU 029944
- EAN 4007841029944
- Sensor type Passive infrared (PIR) presence detector
- Presence detection zone r = 4 m (25 m²), current data sheet
- Motion detection Tangential r = 12 m; radial r = 4 m (current data sheet)
- Sensor system Reach adjustable in stages, approximately 5–12 m
- Application Dry interiors
- Installation Concealed wall box
- Installation height 1.1–1.2 m; optimum 1.2 m
- Light-level setting 2–1000 lx; daylight mode; Teach via compatible remote
- Voltage 220–240 V AC, 50–60 Hz
- Parallel connections Wired master/master or master/slave; up to 10 sensors on the same phase
- Functions Automatic/semi-automatic, IQ, Teach, test and presentation mode
- Housing Plastic
- IP rating IP 20
- Dimensions 80 × 80 × 50 mm (width × height × total depth); rear section 30 mm
- Temperature range 0…+40 °C
- Warranty 5 years
Product Description
Presence control at a familiar wall-switch position
STEINEL IR 180 COM1 is a white wall-mounted presence switch with an integrated button and one relay output for switching lighting on and off. It suits offices, corridors and ancillary rooms where automatic operation should retain a straightforward manual control. The RAL 9010 housing has an 80 × 80 mm front frame and fits a concealed wall-box installation. This is the specific 029944 COM1 article, intended to switch lighting according to detected movement and the measured ambient light level.
180° passive infrared detection responds to changes in heat radiation caused by movement. The current exact data sheet gives a tangential radius of up to 12 m, with radial movement and presence coverage reaching a radius of up to 4 m. A person crossing the field can therefore be detected farther away than someone approaching the sensor directly. Positioning should reflect the actual route through the room and preserve a clear view. PIR sensing does not detect movement through walls or glass, so furniture and open doors must be considered when choosing the location.
Automatic operation, a button and adjustable settings
Potentiometers and DIP switches on the sensor module provide direct selection of settings and operating modes. Fully automatic operation switches the lighting on when movement and the ambient-light threshold call for it. In semi-automatic mode, the user switches the light on and the sensor handles subsequent automatic switching off. The integrated button can be enabled or disabled, with a choice between manual on-only and on/off operation. This allows the same detector to support the habits of an individual workspace or the simpler expectations of a shared area.
The stay-on period is adjustable from 30 seconds to 30 minutes, with a twilight threshold from 2 to 1000 lux. IQ mode adapts the delay to usage patterns within a 5–20 minute range. A separate pulse setting produces an approximately two-second output pulse followed by an eight-second pause, for example when triggering a compatible staircase lighting timer. Reach can be adjusted in stages from approximately 5 to 12 m. Test mode helps establish the useful detection area before everyday timing and light-level settings are selected.
RC5, RC8 and Smart Remote are optional control accessories that can provide further configuration or user functions. Teach with a compatible controller stores a suitable light threshold measured at the installation. A phone connection through Smart Remote does not mean that this detector contains Bluetooth Mesh hardware. Larger detection areas can instead use wired master/master or master/slave arrangements, following the manual’s same-phase and connection requirements. This provides a way to coordinate several detection points while keeping the switched lighting circuit and its controlling relay clearly defined.
Installation depth and connected loads
The detector fits a concealed wall box at a mounting height of 1.1–1.2 m. The drawing and manual establish an overall depth of 50 mm, including a 30 mm rear insertion section. The generic table’s 30 mm figure must therefore not be interpreted as the full product depth. A neutral conductor N is required; the functional lighting connection uses live L, neutral and switched live L′. Installation belongs with a qualified electrician. The manual also requires at least one metre from lights whose heat could affect infrared detection.
Permitted LED loading depends on individual lamp power: 100 W total for lamps below 2 W, 300 W for lamps above 2 and below 8 W, and 600 W for lamps above 8 W. The simultaneous limits of eight LED or fluorescent lamps and 176 µF capacitance must be respected. Resistive loading is rated up to 2000 W. For electronic ballasts, this listing uses the more conservative 600 W manual limit, although the product table lists 1000 W. IP20 protection and the 0…+40 °C operating range make this a detector for dry interiors.
- Automatic lighting retains a familiar manual wall button.
- Semi-automatic mode lets the user choose when lighting is needed.
- Adjustable reach and test mode help match detection to the room layout.
- Wired interconnection can extend the collectively monitored area.
Image context. The interior photograph is a manufacturer IR 180 family installation example; room furnishings are not included. The orange detection-zone visual is an explanatory illustration.
