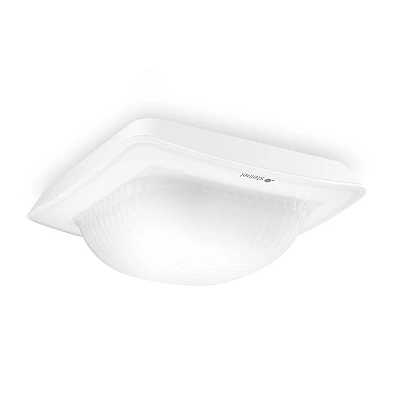

STEINEL IR Quattro HD-2 24m COM1 UP presence detector, 360°, 24 × 24 m, IP20, white — 064310
190.50€Bez PVN: 157.44€
STEINEL IR Quattro HD-2 24m COM1 UP presence detector, 360°, 24 × 24 m, IP20, black — 094508
208.50€
Ex Tax: 172.31€
Viewed 2 times
Categories
Cart
Account
Search
Recent View
Go to Top
All Categories
×
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Shopping Cart
×
Your shopping cart is empty!
Search
×
Recent View Products
×
Item specifics
- Weight 185 g (net)
- Number of detection zones 5200
- Reach At 2.8 m and potentiometer position 7: tangential 24 × 24 m; presence 9 × 9 m; radial 7.5 × 7.5 m (manual table)
- Detection angle 360°; square detection area
- Optimal mounting height 2.8 m
- Maximum mounting height 10 m; permitted 2.5–10 m
- Time setting 5 s–60 min per article page and manual function description; manual technical table gives a 10 s minimum; pulse 2 s ON / 8 s pause
- Twilight setting 2–2000 lx; Teach; daylight mode
- Sensor system Four PIR elements individually adjustable in STEINEL Connect
- Segment masking Individual PIR sensitivity adjustment/deactivation; reach potentiometer
- Manual control Push-button input S; cable <50 m; button function selectable in app; presentation mode
- Relay load Resistive load 2000 W; switched live; additional limits apply to LED loads
- LED load (W) Lamps <2 W: 100 W; >2 W and <8 W: 300 W; >8 W: 600 W; max. 8 LED/fluorescent lamps; C up to 176 µF
- Parallel connection Wireless groups and neighbouring groups through Bluetooth Mesh
- Output type One COM1 relay; switched live, non-floating contact; ON/OFF
- Interface & control COM1 relay; Bluetooth Mesh; fully automatic and semi-automatic modes
- Settings STEINEL Connect app; detection-area potentiometer
- Colour / RAL Black; RAL 9005
- In the box UP sensor and load modules; magnetic attachment; remote not included
- Manufacturer SKU 094508
- EAN 4007841094508
- Sensor type Passive infrared (PIR); four elements; presence detection from movement
- Application Indoors: offices, classrooms, meeting rooms and workspaces
- Installation Concealed-mounted UP; ceiling
- Voltage 220–240 V AC; 50/60 Hz
- Housing Plastic; black, RAL 9005
- IP rating IP20; indoors
- Dimensions 103 × 103 × 69 mm; technical table and manual; separate UP drawing shows 67 mm depth
- Temperature range −20 to +50 °C
- Warranty 5 years subject to manufacturer terms
- Standby power consumption (W) <0.5 W per manual; article table lists 0.3 W consumption
- RF frequency Bluetooth: 2.4–2.48 GHz
Product Description
Presence control for occupied workspaces
STEINEL IR Quattro HD-2 24m COM1 UP is a black ceiling presence detector for offices, classrooms and meeting rooms where lighting should follow actual room use. This is the COM1 version with one relay, switching connected lighting on and off by combining movement detection with measured ambient brightness. Electric lighting can therefore remain off when daylight already provides enough illumination, while a selected delay keeps the lights on briefly after the last movement. The black RAL 9005 housing can be coordinated with the ceiling finish and other visible fittings rather than chosen solely for its detection specification.
Square coverage with adjustable sensitivity
Detection uses passive infrared technology, or PIR, with four sensing elements. Their individual sensitivity can be adjusted in the STEINEL Connect app to suit the room layout. The 360° square detection area is useful in rectangular workspaces, but the mounting position must leave an unobstructed view of the occupied areas. Furniture and partitions can interrupt that view. PIR responds to changes in heat associated with movement; it does not identify a completely motionless person from breathing alone and is not a True Presence detector. Heat sources and movement outside the intended area should also be considered during commissioning.
At the manual’s reference mounting height of 2.8 m with potentiometer position 7, tangential movement can be detected across 24 × 24 m, the presence area is 9 × 9 m, and radial movement in that particular table row covers 7.5 × 7.5 m. These figures describe different movement patterns: the largest area must not be assumed to provide the same sensitivity to small actions at a desk. Permitted mounting heights are 2.5–10 m. For another height or potentiometer setting, use the corresponding manual table instead of scaling the largest figure by assumption. Digital sensitivity adjustment supplements the mechanical reach setting.
Brightness threshold, delay and push-button control
The 2–2000 lx brightness threshold lets automatic activation be matched to the desired lighting conditions. Teach stores the brightness measured in the room, while daylight mode responds to movement regardless of brightness. A delay determines how long lighting remains on after the final detected movement: the article page and manual function description give 5 seconds to 60 minutes, while the manual technical table gives a 10-second minimum. Check the available setting in the device app. Fully automatic mode switches lighting on and off automatically. In semi-automatic mode, a push-button requests lighting and subsequent switch-off remains automatic. The S input accepts a button connection with a cable shorter than 50 m; its function is selected in the app. Presentation mode helps keep manually extinguished lighting off while movement is still detected in the room.
Wireless groups and connected lighting loads
Bluetooth Mesh supports detector groups and a neighbouring-group function, useful when coordinating lighting across adjoining work areas. Configuration uses a Bluetooth-capable phone or tablet with STEINEL Connect. The detector operates from 220–240 V, 50/60 Hz and provides a switched-live relay output rather than a floating contact. The resistive-load limit is 2000 W. LED selection also depends on each lamp’s rating: the manufacturer lists 100 W for lamps below 2 W, 300 W for lamps above 2 W and below 8 W, and 600 W for lamps above 8 W, together with a maximum of eight LED or fluorescent lamps and 176 µF capacitive loading. COM1 provides on/off switching rather than a lighting dimmer output or constant-light regulation.
Concealed installation in indoor ceilings
The UP concealed-mounted housing is designed for a ceiling installation with hidden wiring. A magnetic attachment holds the sensor module to the load module and allows access during setup. This exact version is rated IP20, so it belongs in suitable indoor locations; its family name alone does not establish suitability for outdoor or wet environments. The manufacturer’s technical table and manual give 103 × 103 × 69 mm, while the separate drawing shows 67 mm overall depth. Installation space should therefore be checked against the complete drawing and the actual mounting box. Net weight is 185 g. A qualified installer should connect it using the COM1 wiring diagram. The manufacturer’s five-year warranty applies subject to its terms.

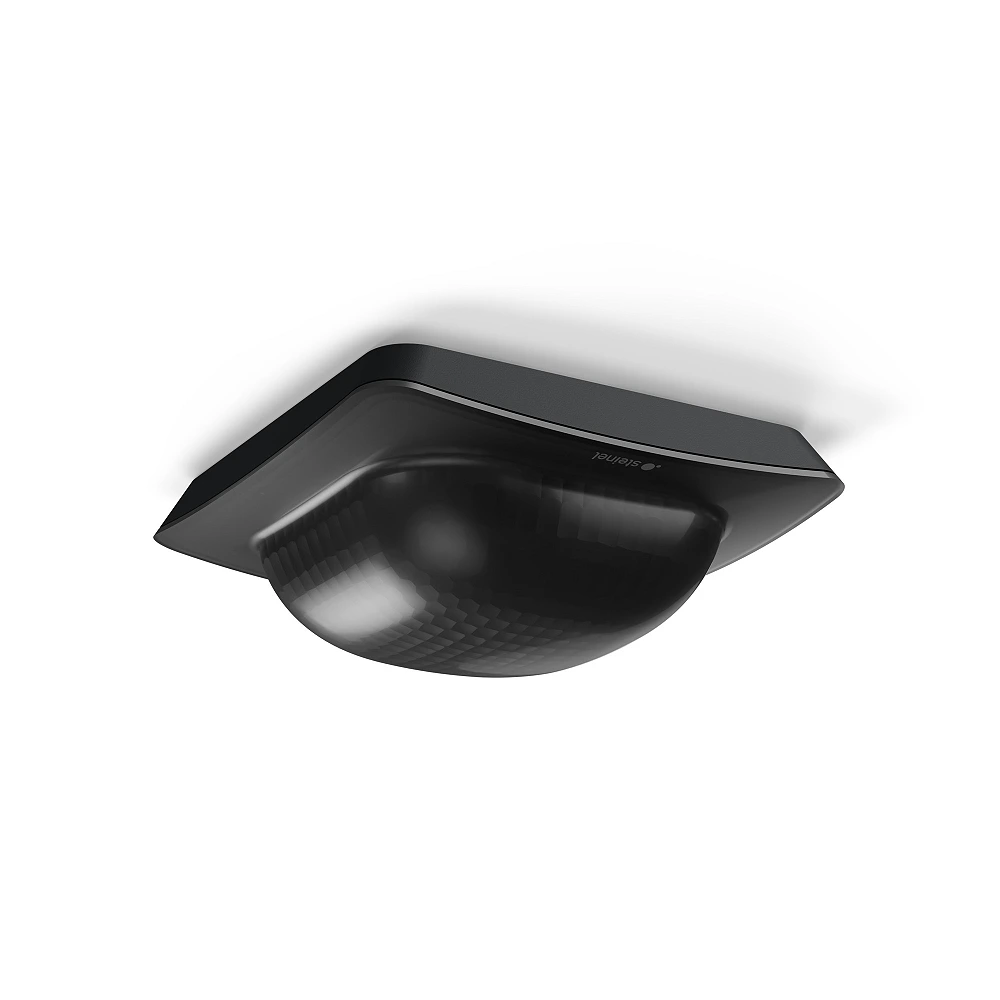

Image context. The main image shows the exact variant housing. The office photograph illustrates the manufacturer’s application context and does not verify the installed detector model, interface, colour or mounting variant. Equipment shown in the room is not included. Drawings and diagrams explain dimensions, detection and wiring.
