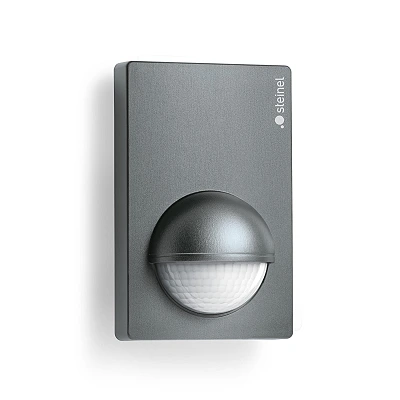

STEINEL IS 180-2 motion sensor, PIR, 180°, tangential r 5/12 m, IP54, anthracite — 034580
85.50€Bez PVN: 70.66€

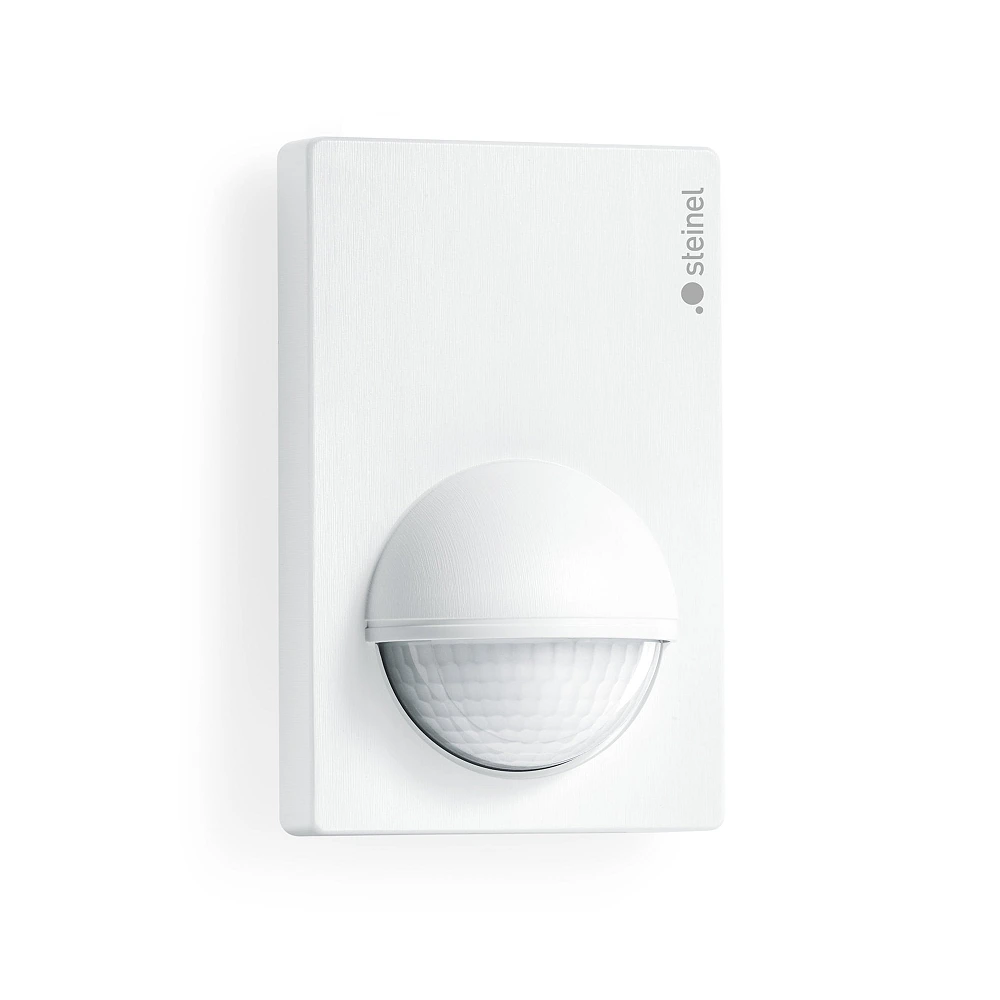

STEINEL IS 180-2 motion sensor, PIR, 180°, tangential r 5/12 m, IP54, white — 603212
73.00€
Ex Tax: 60.33€
Viewed 7 times
Categories
Cart
Account
Search
Recent View
Go to Top
All Categories
×
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Shopping Cart
×
Your shopping cart is empty!
Search
×
Recent View Products
×
Item specifics
- Housing material UV-resistant plastic
- Protection class (electrical) II
- Weight 130 g (net)
- Number of detection zones 504
- Sensor type Passive infrared sensor (PIR), 2 pyroelectric elements
- Installation Wall-mounted indoors or outdoors; surface or concealed cable entry; corner installation with separately purchased bracket
- Reach Tangential: r = 5 or 12 m (39 or 226 m²), at approx. 2 m mounting height; radial: r = 1.5 or 3 m (4 or 14 m²)
- Detection angle 180° horizontal / 90° vertical
- Optimal mounting height Approx.2 m
- Maximum mounting height 4 m (specified mounting range 1.8–4 m)
- Time setting 5 s–15 min
- Twilight setting 2–2000 lx
- Sensor system Reach selection using 5 m / 12 m lens positions; no electronic scaling
- Sneak-by guard Yes
- Segment masking Yes, with included shrouds
- Manual override Via external changeover switch selecting automatic or permanent lighting
- Manual control Via external switch/pushbutton according to wiring diagram
- Relay load Resistive/incandescent and halogen: 1000 W; low-voltage halogen: 1000 VA; fluorescent with electronic ballast: 350 W; uncorrected: 500 VA; series-corrected: 900 VA; parallel-corrected: 500 VA; total capacitance <132 µF
- LED load (W) Lamps <2 W: 100 W total; lamps >2 W and <8 W: 175 W total; lamps >8 W: 350 W total; max. 50 lamps, total capacitance <132 µF
- Parallel connection Yes, wired; Master/Master
- Output type Switched live L′; L and N supply required
- Interface & control Wired switching; local controls; no app or remote control
- Settings Time and twilight threshold via potentiometers behind front cover
- Voltage 230 V AC, 50 Hz
- Operating temperature −20…+50 °C
- IP rating IP54
- Dimensions (W×H×D) 56 × 76 × 120 mm (depth × width × height)
- Warranty 3 years
- Colour / RAL White / RAL 9010
- In the box Sensor, detection-zone shroud and mounting accessories; corner bracket not included
- Manufacturer SKU 603212
- EAN 4007841603212
Product Description
White motion sensor for entrances and outdoor routes
STEINEL IS 180-2, article 603212, is a wall-mounted motion sensor for automatic control of separate lighting indoors and outdoors. Its white RAL 9010 housing suits light-coloured facades, entrance areas, terraces and utility rooms. It brings lighting into use when someone moves through the selected area, with the ambient-light threshold determining when automatic switching is needed. It is also suitable for adding separate motion control to an existing group of compatible luminaires.
Set the detection area to suit the approach
Two passive infrared sensors respond to changes in heat emitted by moving people and animals. Together they provide a 180° horizontal detection angle, a 90° vertical aperture and 504 switching zones. Detection is most dependable when a person walks across the field of view. Beside an entrance or garage, a position to one side of the normal walking route therefore helps the sensor recognise movement. Walls, glass and other obstacles interrupt its infrared view, so the selected location should provide a clear line of sight to the area being monitored.
The removable lens can be reversed and refitted to select a maximum tangential detection radius of 5 m or 12 m. These values apply at an installation height of approximately 2 m with movement across the detection area. The supplied shrouds let you exclude individual sectors, such as a public pavement, a neighbouring driveway or moving shrubs. Start with the appropriate lens position, refine the coverage with the shrouds, and walk through the intended route to check the result. This makes it possible to focus operation on the part of the property where automatic lighting is useful.
For movement directly towards the sensor, the white version specifies a radial detection radius of 1.5 m or 3 m, depending on the selected lens position. Take this shorter approach distance into account when positioning the unit beside a route.
Time and twilight settings at the sensor
Two potentiometers behind the front cover provide the everyday adjustments. The switch-off delay is adjustable from 5 seconds to 15 minutes, while the twilight threshold covers 2–2000 lx. A short delay suits a brief passage; a longer setting gives more time at a doorway or in a utility area. The twilight setting determines how dark the surroundings must be before movement activates the lighting. For a daylight walk test, use the shortest time setting and the daylight threshold, then adjust both controls to suit normal use. Make these adjustments with the lens fitted. Configuration takes place directly on the device without an app or remote control.
Match the load to the lamps
The IS 180-2 operates from a 230 V, 50 Hz supply and switches connected lighting on and off. Its maximum resistive load is 1000 W. The permitted total LED load depends on individual lamp wattage: 100 W for lamps rated < 2 W; 175 W for lamps rated > 2 W and < 8 W; and 350 W for lamps rated > 8 W. When selecting a group of lights, observe the relevant wattage category, a maximum of 50 LED light sources and a combined capacitance of c < 132 µF. The sensor provides switching control rather than brightness adjustment.
Installation and everyday use
The specified installation height is 1.8–4 m, with 2 m recommended as the optimum. The sensor mounts on a wall; an optional corner wall bracket allows installation on an internal or external corner and is purchased separately. Position the sensor at least 50 cm from a light so that heat from the luminaire does not cause unwanted triggering. Select cable connections and any external switches using the manufacturer's wiring diagrams. A continuous-light arrangement is available through the external changeover switch shown in those diagrams. For a system with several sensors, the manufacturer specifies wired Master/Master interconnection.
The UV-resistant plastic housing has an IP54 rating and electrical protection class II. Its operating temperature range is −20 to +50 °C. The body measures 56 × 76 × 120 mm in depth × width × height and has a net weight of 130 g. Its compact proportions help when choosing a position beside a door frame or on a narrow section of wall. STEINEL specifies a three-year manufacturer's warranty. For routine care, wipe a dirty lens gently with a damp cloth without cleaning agents, keeping the view of the detection area clear.
