STEINEL IS 3360 MX Highbay COM1 AP surface ceiling motion sensor 360°, up to Ø36 m, IP54, white (033569)
139.00€Bez PVN: 114.88€
STEINEL IS 3360 MX Highbay PF AP surface ceiling motion sensor 360°, up to Ø36 m, IP54, white (033583)
147.50€
Ex Tax: 121.90€
Viewed 2 times
Categories
Cart
Account
Search
Recent View
Go to Top
All Categories
×
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Shopping Cart
×
Your shopping cart is empty!
Search
×
Recent View Products
×
Item specifics
- Housing material UV-resistant plastic
- Weight 179 g
- Number of detection zones 1416 switching zones; 11 detection levels
- Sensor technology Passive infrared (PIR); mixed-light metering
- Sensor type Motion detector for tall indoor spaces
- Installation Surface ceiling mounting (AP), indoors only; height 4–14 m
- Reach Tangential up to Ø36 m (1018 m²), radial up to Ø14 m (154 m²); manual gives 10 m tangential radius at 14 m height
- Detection angle 360°; 180° aperture
- Optimal mounting height 12 m
- Maximum mounting height 14 m
- Time setting 5 s–15 min via potentiometer; 5 s–60 min via optional Smart Remote; pulse 2 s with 8 s pause
- Twilight setting 2–1000 lx; Teach; daylight mode
- Sneak-by guard Yes, coverage below the detector
- Segment masking Yes, using lens segment shrouds
- Manual override 4 h, then automatic return to sensor operation
- Manual control ON/ON-OFF; test mode; suitable external mains switch or optional remote
- Relay load PF: max. 10 A, 240 V AC/24 V DC; min. 100 mA at 12 V AC/DC; NO SELV. Incandescent/halogen 2000 W; ECG 1500 W; LV halogen 2000 VA; fluorescent 1000 VA (uncorrected), 400 VA (series/parallel-corrected); 176 µF
- LED load (W) 100 W (lamps<2 W); 300 W (>2 W, <8 W); 600 W (>8 W); 176 µF; lamp quantity not specified
- Parallel connection Wired master/master; maximum PF quantity not specified
- Output type PF floating relay S1/S2; NO SELV
- Interface & control PF; relay switching; Smart Remote is a separate accessory, no onboard Bluetooth Mesh
- Settings Potentiometers; optional RC5, RC8 or Smart Remote accessory
- Voltage 220–240 V AC, 50–60 Hz
- Operating temperature −20…+50 °C
- IP rating IP54
- Dimensions (W×H×D) 95 × 95 mm face; 65 mm projection
- Accessories RC5 592806, RC8 559410, Smart Remote 009151 (separate accessories)
- Warranty 5 years (manufacturer terms)
- Colour / RAL White / RAL 9003
- In the box 1 detector and segment shrouds; remote control not included
- Manufacturer SKU 033583
- EAN 4007841033583
Product Description
Motion detection for high ceilings and open warehouse areas
STEINEL IS 3360 MX Highbay PF AP is a white surface-mounted ceiling motion detector designed for tall indoor spaces. Its MX optics suit locations where the mounting height of a conventional office or corridor detector is insufficient, including open warehouse areas, goods handling spaces and sports halls. The permitted installation height is 4–14 m, with 12 m listed as the optimum. Motion and ambient light can then determine when the connected circuit operates, helping lighting follow activity in the relevant part of a large building.
360° passive infrared detection responds to heat emitted by moving bodies. The optical system provides 1416 switching zones across 11 detection levels and includes coverage immediately below the detector. Direction of travel matters when choosing its position: the maximum tangential coverage, for movement across the detection sectors, is up to Ø36 m, while radial approach is listed at up to Ø14 m. These figures describe different movement patterns. The maximum 18 m radius does not apply equally at every installation height; the manual's height table specifies a 10 m tangential radius when the sensor is mounted at 14 m.
Shelves, partitions and glass can obstruct the infrared sensor's view of a heat source. Positioning should therefore follow actual walking routes and the room layout, rather than relying only on total floor area. The supplied shrouds allow unwanted lens segments to be masked, for example near the boundary with an adjacent working area. After installation, test mode helps establish where movement actually triggers the output. This high-ceiling model is intended to follow moving people and circulation through a space; a workplace where someone remains very still may call for a separate assessment of presence-detection requirements.
Settings that follow daylight and working patterns
The twilight threshold is adjustable from 2 to 1000 lx, and Teach stores the ambient light level measured at the time of setting. This is useful when commissioning the detector against the actual lighting conditions in the room instead of selecting a number in isolation. Daylight mode makes the sensor respond to motion regardless of ambient brightness. Settings are available through the detector's potentiometers, while optional remote controls make later adjustments possible without repeated access to every high mounting point.
The local control provides a 5-second to 15-minute stay-on time, and each new movement restarts the selected delay. The manual separately provides a range up to 60 minutes when using the optional Smart Remote accessory. Pulse mode activates the output for 2 seconds, followed by an 8-second pause, for example to trigger a compatible staircase timer. An appropriately installed switching arrangement also enables four hours of continuous lighting before an automatic return to sensor operation. RC5, RC8 and Smart Remote are separate accessories; the phone connection used by Smart Remote does not make the detector itself a Bluetooth Mesh product.
A floating PF contact with defined operating limits
The PF version provides floating relay terminals S1/S2, allowing the motion signal to switch a suitable load or compatible control input. The detector itself still requires a mains supply. Its exact PF wiring diagram specifies a maximum of 10 A at 240 V AC or 24 V DC and a minimum of 100 mA at 12 V AC/DC. The diagram also states NO SELV: this contact must not be assumed to provide a safely isolated SELV control output. Selection of an automation input must account for both this isolation requirement and the current actually drawn by that input.
The dedicated PF manual separately specifies lighting load limits: 100 W for LED lamps below 2 W, 300 W for lamps above 2 W and below 8 W, and 600 W for lamps above 8 W. The published capacitive load limit is 176 µF. Incandescent and halogen lamps are rated at 2000 W, while electronic ballasts are rated at 1500 W; these figures are not interchangeable. Parallel-corrected fluorescent lamps should follow the current data sheet's lower 400 VA limit. Choosing PF therefore depends on the required contact arrangement and the connected circuit's compatibility, as well as the total lighting power.
Surface housing and image context
The square AP housing has a 95 × 95 mm face and a 65 mm depth. Its white RAL 9003 plastic enclosure is intended for surface mounting on an indoor ceiling; the IP54 rating does not change that intended application. Supply is 220–240 V AC, 50–60 Hz. The mounting point should be stable, with at least 50 cm clearance from heat-emitting luminaires to help avoid unwanted triggering. A qualified electrician should check installation and load compatibility against the wiring diagram for this particular PF version.
- MX optics for tall indoor spaces and ceiling mounting up to 14 m.
- Separate coverage figures for tangential and radial movement.
- Teach, pulse operation and optional remote-control accessories.
- White square AP housing with IP54 protection.

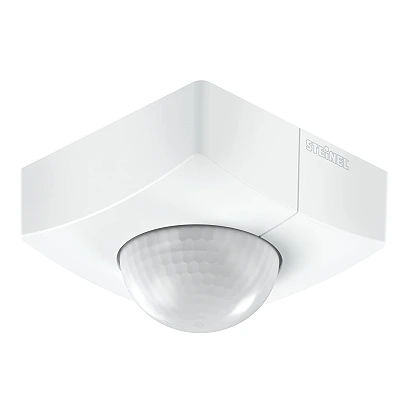

Image context. The main picture is the white square AP housing image published by the manufacturer for this article; COM1 and PF share the same exterior. The warehouse photograph is an IS 3360 MX Highbay family application example without an identifiable individual detector. The warehouse luminaires, shelving and other equipment are not included. The orange detection illustration explains the operating principle and does not guarantee an exact coverage pattern in a particular room.
