Item specifics
- Number of detection zones 972 optical switching zones
- Sensor type Passive infrared (PIR) motion detector with ambient-light measurement
- Installation Surface mounting on a ceiling; indoors and outdoors
- Reach Tangential Ø24 m (452 m²); radial Ø6 m (28 m²)
- Detection angle 360°; vertical aperture angle 90°
- Optimal mounting height 2.8 m
- Maximum mounting height 6 m; manufacturer-specified range 2.5–6 m
- Time setting 5 s–15 min — switch-off delay after the last movement
- Twilight setting 2–1000 lx; adjustable, no Teach-in
- Sensor system Detection field limited with shrouds; no electronic or mechanical reach adjustment
- Sneak-by guard Yes — detection also directly below the sensor
- Segment masking Using the supplied shrouds
- Manual override 4 h; activated by switching a connected mains switch off/on twice rapidly as instructed
- Watt-o-matic No low-level background light function
- Relay load Resistive: 2000 W; low-voltage halogen: 2000 VA
- LED load (W) LED <2 W: 100 W; LED >2 W and <8 W: 200 W; LED >8 W: 400 W; up to 50 LED lamps; total capacitance ≤176 µF
- Parallel connection wired Master/Master connection according to the manufacturer’s diagram
- Output type Relay; switched mains live to the light, not a potential-free contact
- Interface & control Relay on/off control of one lighting circuit; no Bluetooth or app
- Settings Two potentiometers: light threshold and switch-off delay; no remote control
- Voltage 220–240 V AC, 50/60 Hz; live L and neutral N required
- Operating temperature −20…+50°C
- IP rating IP54 — dust-protected and protected against splashing water
- Dimensions (W×H×D) Ø121 × 57 mm — overall dimensions
- Warranty 3-year manufacturer warranty, subject to STEINEL terms
- Colour / RAL White; RAL 9010
- In the box 1 sensor, shrouds and mounting parts; ceiling mounting base
- Manufacturer SKU 006532
- EAN 4007841006532
Product Description

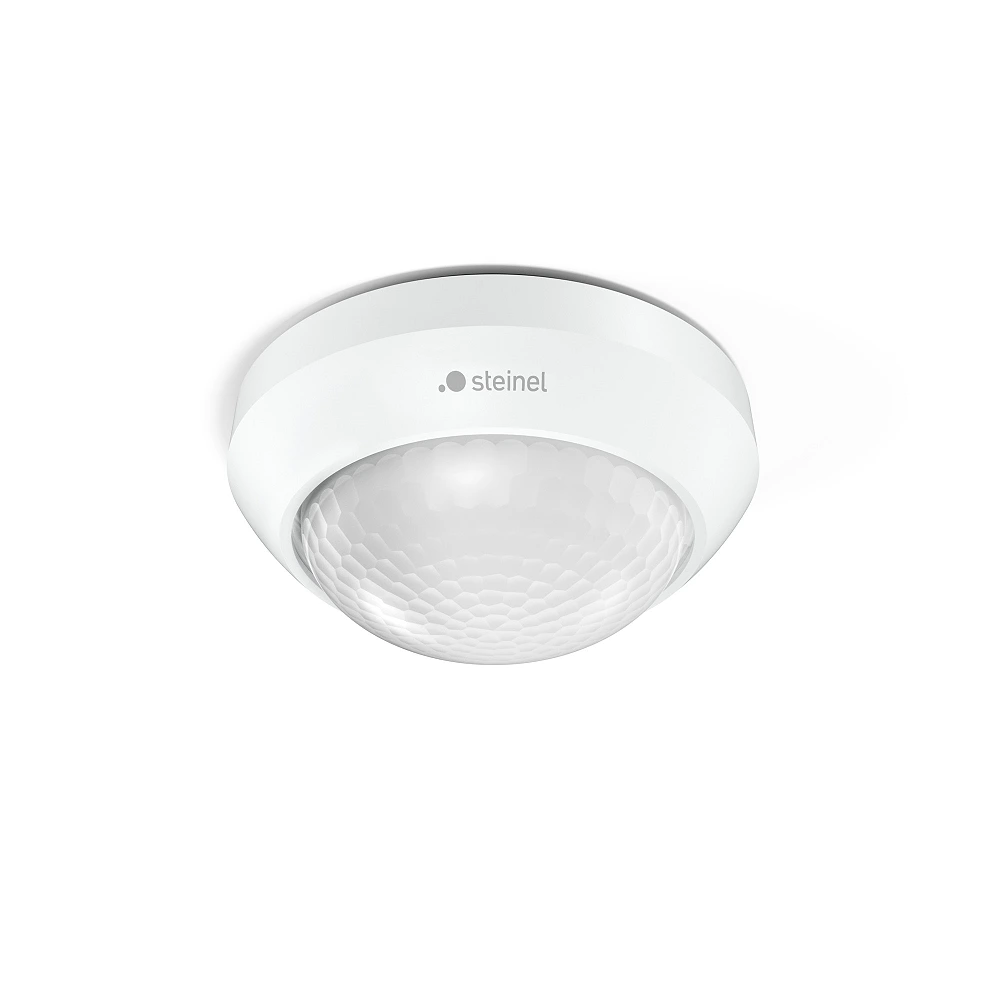

STEINEL IS 360-3 is a white surface-mounted ceiling motion detector for automatic lighting indoors and outdoors. Its 360° detection field covers up to Ø24 m when a person moves across the sensor field. Passive infrared technology responds to heat from moving bodies; the light sensor lets you set the ambient brightness at which the lighting may switch on. Article 006532, EAN 4007841006532.
Key technical specifications
| Installation | Surface ceiling mounting |
|---|---|
| Detection field | 360°; tangential Ø24 m; radial Ø6 m |
| Mounting height | Optimum 2.8 m; specified range 2.5–6 m |
| Protection | IP54; electrical protection class II |
| Switch-off delay | 5 s–15 min |
| Light threshold | 2–1000 lx |
| Dimensions | Ø121 × 57 mm |
| Colour | White, RAL 9010 |
Understanding the detection range
- Tangential reach up to Ø24 m (452 m²). This is the full detection diameter, equivalent to a radius of 12 m from the sensor.
- Direct approach: Ø6 m (28 m²). The direction of movement affects detection significantly.
- 972 optical switching zones and sneak-by protection cover the monitored area, including directly below the sensor. They are not separate lighting-control channels.
Coverage is 360° horizontally, with a vertical aperture angle of 90°. Supplied shrouds mask unwanted areas such as a neighbouring path or road. There is no electronic or mechanical reach adjustment. PIR cannot detect through walls or glass and is not intended to detect a completely motionless person. Maximum coverage must not be assumed at every mounting height.
Mounting and housing
The mounting base attaches to the ceiling surface; overall dimensions are Ø121 × 57 mm. Suitable locations include canopies, carports, entrances and passageways requiring wide detection coverage. The optimum mounting height is 2.8 m; the current technical table specifies a 2.5–6 m range.
The housing is UV-resistant plastic. Net weight: 177 g. IP54 means protection against harmful dust ingress and splashing water; follow the manufacturer’s mounting and cable-sealing requirements. Operating temperature: −20…+50°C. Electrical protection class II means double insulation. Keep the sensor’s view clear; nearby heat sources or moving branches may cause unwanted triggering.
Relay and switching loads
The detector switches one lighting circuit on and off. It requires live L and neutral N; the output supplies switched mains live to the light. It is not a potential-free control contact. Supply: 220–240 V AC, 50/60 Hz.
| Resistive load | 2000 W |
|---|---|
| Low-voltage halogen lamps | 2000 VA |
| LED lamps <2 W | 100 W |
| LED lamps >2 W and <8 W | 200 W |
| LED lamps >8 W | 400 W |
| Number of LED lamps | Up to 50 |
| Fluorescent lamps with electronic ballast | 400 W |
| Fluorescent lamps, uncorrected | 500 VA |
| Fluorescent lamps, series-corrected | 900 VA |
| Fluorescent lamps, parallel-corrected | 400 VA |
| Total capacitive load | 176 µF |
Each LED power limit is the combined load for that lamp category. Lamp-count, capacitance and driver inrush-current limits also apply. Do not use the resistive rating as an LED rating. This table uses the current STEINEL data sheet for this exact article.
Settings and everyday control
- 5 s–15 min: the light switches off after the selected delay from the last detected movement. Further movement restarts the timer.
- 2–1000 lx: a potentiometer sets the ambient-light threshold. There is no Teach-in function.
- No app required: both settings are on the detector. Bluetooth and remote controls are not supported.
- On/off switching: no dimming, background-light or constant-light control.
Four-hour manual override: rapidly switch a correctly connected mains switch off and on twice, following the interval in the instructions. Sensor operation resumes after four hours; the instructions also explain how to restore it earlier.
Wired Master/Master interconnection is supported. This is not a wireless network and does not increase the permitted load on an individual output.
Supplied items, warranty and documents
Supplied with one detector, shrouds and mounting parts including a ceiling mounting base. The controlled light and external switch are sold separately. Manufacturer warranty: 3 years, subject to STEINEL terms.
A qualified installer must complete mains wiring in accordance with the manufacturer’s instructions. Manufacturer: STEINEL GmbH, Dieselstraße 80–84, 33442 Herzebrock-Clarholz, Germany; product@steinel.de. The main photo shows the selected article; shared application and UV-resistance illustrations may show a different housing colour.
