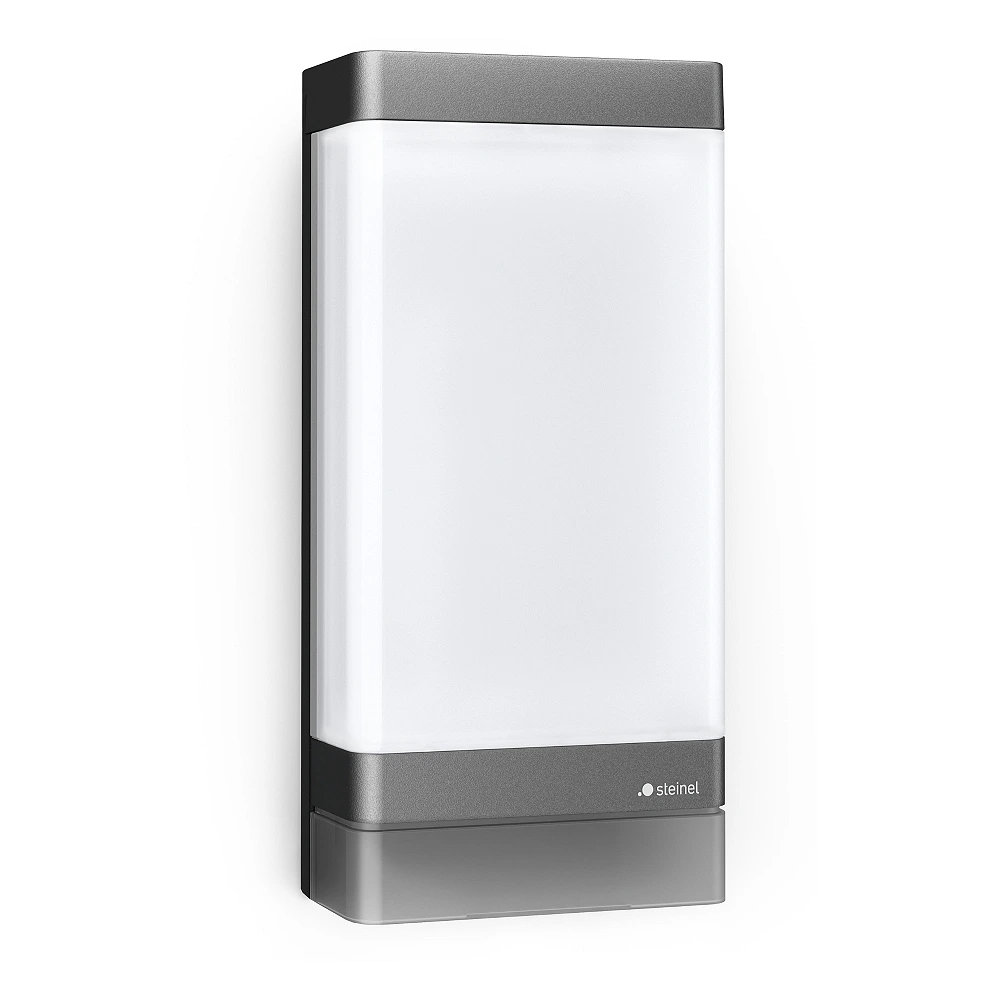

STEINEL L 271 digi C outdoor wall light without sensor, Bluetooth, 6.6 W, 566 lm, 3000 K, anthracite — 068714
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Light source type Integrated STEINEL LED system; light source included
- Replaceable light source No — LED light source cannot be replaced
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour Anthracite
- Housing material Aluminium
- Diffuser material Opal plastic
- Diffuser colour Opal white
- Dimensions (L×W×H) 65 × 116 × 235 mm (depth × width × height)
- Mounting type Surface mounting on an outdoor wall
- IP rating IP44 — protection against solid objects of 1 mm or larger and splashing water
- IK rating IK03
- Protection class (electrical) Class II — double insulation
- Operating temperature (Ta) −10…+40°C
- Control method STEINEL Connect app; Bluetooth Mesh groups and weekly schedule
- Dimming method Via Bluetooth Mesh in the STEINEL Connect app
- Remote control included No — remote control is not included
- Basic light 5–100% basic light only when combined with a compatible Bluetooth sensor light
- Soft light start Yes — soft light start
- Driver included Yes — LED control gear is built in
- Replaceable driver No — LED control gear cannot be replaced
- Weight 754 g — manufacturer-specified net weight
- Warranty Manufacturer warranty: 3 years, subject to STEINEL terms
- Accessories Mounting accessories; house-number panel and stickers are not included
- Wattage 6.6 W
- Luminous flux 566 lm — total luminaire luminous flux
- Luminous efficacy (lm/W) 85 lm/W — total luminaire efficiency
- Colour temperature (CCT) 3000 K — warm white
- Colour rendering index (CRI/Ra) CRI / Ra 82
- Dimmable Yes — main light adjustable from 5–100% in the app
- Control protocol Bluetooth Mesh
- Energy class E — integrated light source LS-0054; EPREL 882555
- Energy consumption (kWh/1000 h) 7 kWh/1000 h — light source energy-label value
- SKU 068714
- EAN 4007841068714
- Sensor type None — this C version has no built-in motion detector
Product Description
STEINEL L 271 digi C is an anthracite outdoor LED wall light without a built-in motion detector. It suits entrances, facades, terraces and balconies. Its 6.6 W LED system delivers 566 lm of warm white light at 3000 K. Use the STEINEL Connect app to adjust settings and link compatible lights through Bluetooth Mesh. Article number: 068714.
Key technical specifications
| LED power / luminous flux | 6.6 W / 566 lm |
|---|---|
| Light colour / colour rendering | 3000 K — warm white; CRI / Ra 82 |
| Control | Bluetooth Mesh; STEINEL Connect app |
| Sensor | No built-in motion detector |
| Main-light brightness | 5–100%, adjustable in the app |
| Protection | IP44; IK03; electrical protection class II |
| Dimensions | 65 × 116 × 235 mm — depth × width × height |
| Net weight | 754 g |
| House-number panel | Not included |
C version: Bluetooth control without its own sensor
L 271 digi C has no built-in motion detector. On its own, it can use app-selected brightness and weekly schedules. When linked to a compatible Bluetooth sensor light, such as L 271 digi SC or L 270 digi SC, it can switch on with the group in response to a sensor command. The 5–100% basic-light function requires a Bluetooth sensor light. The C version has no detection range, detection angle or local twilight-sensor setting of its own.
Light settings and Bluetooth groups
- 5–100% main light: adjust brightness to the location.
- Soft light start: brightness rises and falls gradually.
- Weekly schedule: set switching times for individual days of the week.
- Bluetooth Mesh: link compatible lights into groups and control them in the app.
- Continuous light: switch the light on without a motion command.
Settings are made on a smartphone or tablet. Bluetooth provides control, not power: every luminaire needs its own 220–240 V mains connection.
Minimum brightness: the current STEINEL product page specifies 5–100%, while the linked operating instructions state 10–100%. If operation below 10% is essential, confirm the settings available on the particular unit before purchase.
Light and energy use
566 lm describes total luminaire output, 3000 K means warm white, and CRI / Ra 82 describes colour rendering. The manufacturer specifies a total luminaire efficiency of 85 lm/W. The integrated LS-0054 light source has energy class E, a label value of 7 kWh/1000 h and EPREL number 882555. The energy label applies to the light source; rated luminaire power is 6.6 W.
The power supply has an average rated life of more than 60,000 h at 25°C. This figure applies to the power supply and is not the warranty period.
Installation, materials and supplied items
Designed for surface mounting on an outdoor wall, the light combines an anthracite aluminium housing with an opal plastic diffuser. IP44 protects against solid objects of 1 mm or larger and splashing water. IK03 is the enclosure impact-resistance rating; electrical protection class II means double insulation. Operating temperature: −10…+40°C. Mains connection: 220–240 V, 50–60 Hz.
Supplied with one luminaire, integrated LED system, control gear and mounting accessories. A house-number panel and number stickers are not included. No separate bulb is required. The LED light source and control gear cannot be replaced. A remote control is not included. The manufacturer lists the TapDuo C wireless pushbutton, 088620 as a separately available accessory.
Manufacturer warranty: 3 years, subject to STEINEL terms. Read the instructions and disconnect power before installation; have mains connections made by a qualified installer. Manufacturer: STEINEL GmbH, Dieselstraße 80–84, 33442 Herzebrock-Clarholz, Germany; product@steinel.de.
Choose the right L 270 / L 271 version
L 271 digi SC has a sensor; L 271 digi C has no sensor; L 270 digi SC adds an illuminated house-number panel. Each version is sold separately. The gallery also includes family and Bluetooth connection illustrations.
Manufacturer documents
- Data sheet (English)
- Operating and installation instructions, multilingual (PDF, 55 MB)
- Wiring diagram
- Dimension drawing
- Photometric data (LDT)
- Tender specification (DOCX, English)
- EU declaration of conformity
- Packaging conformity document (PPWR CE-PACK)
- Quick-start guide
- Light-source energy label
- Bluetooth Mesh app notes (English)
- Manufacturer warranty terms (German)
- Data sheet (German)
- Drilling template
- EPREL 882555
- STEINEL product page
