STEINEL L 1 S outdoor wall light with motion sensor, E27, white — 650513
52.50€Bez PVN: 43.39€
STEINEL L 1 S outdoor wall light with motion sensor, E27, black — 650612
52.50€
Ex Tax: 43.39€
Viewed 7 times
Categories
Cart
Account
Search
Recent View
Go to Top
All Categories
×
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Shopping Cart
×
Your shopping cart is empty!
Search
×
Recent View Products
×
Item specifics
- Light source type One E27 bulb, sold separately
- Replaceable light source Yes — the E27 bulb can be replaced by the user
- Number of bulbs 1
- Max. power E27: incandescent bulb up to 60 W; LED or compact fluorescent (CFL) bulb up to 20 W
- Voltage 230–240 V AC, 50 Hz
- Housing colour Black
- Housing material Plastic
- Diffuser material Opal plastic
- Dimensions (L×W×H) 120 × 110 × 255 mm (depth × width × height)
- Mounting type Outdoor wall mounting
- IP rating IP44
- IK rating IK07
- Protection class (electrical) II — double or reinforced insulation
- Operating temperature (Ta) −20 to +40 °C
- Control method PIR motion sensor with adjustable time and twilight threshold
- Basic light None
- Soft light start No
- Weight 570 g (net)
- Warranty 3-year manufacturer warranty under its terms
- SKU 650612
- EAN 4007841650612
- Socket E27
- Included E27 bulb not included; purchase separately
- Sensor type Passive infrared (PIR)
- Reach Up to 10 m tangentially; up to 3 m radially
- Detection angle 180°
- Optimal mounting height 2 m
- Maximum mounting height 3 m
- Twilight setting 2–1000 lx
- Sneak-by guard Yes — detection directly below the sensor
- Segment masking Yes — using the included sensor masking stickers
- Parallel connection Each light operates with its own sensor; shared sensor control is not provided
- Settings Using adjustment controls on the light
- Time setting 5 sec–35 min
Product Description

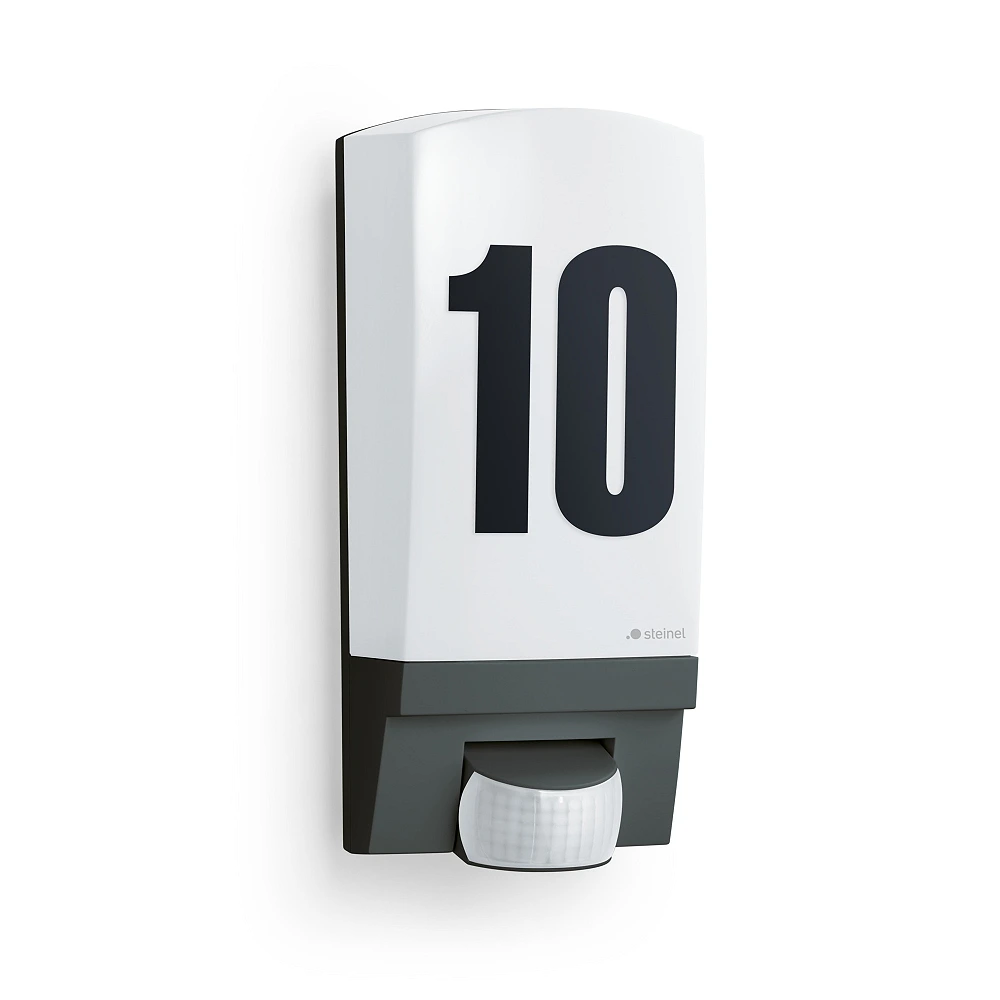

STEINEL L 1 S is a black outdoor wall light with an E27 socket and opal plastic diffuser. Its compact rectangular shape takes up little space beside a door. It suits entrances, terraces, balconies and paths alongside a building. The integrated 180° motion sensor switches the light on when it detects movement and ambient brightness is below the chosen twilight threshold.
House number beside the entrance
A sheet of self-adhesive house-number characters is included. Apply the number to the opal cover to combine entrance lighting with a house-number sign.
Choose your own bulb and light colour
One E27 bulb is sold separately and can be replaced by the user. The manufacturer permits an incandescent bulb up to 60 W or an LED or compact fluorescent (CFL) bulb up to 20 W. For an LED bulb, observe its actual wattage rather than the equivalent incandescent wattage printed on its packaging.
Luminous flux, colour temperature and colour rendering depend on the chosen bulb. You can therefore adapt brightness and light colour to an entrance or seating area. The fitting without a bulb has no fixed lumen or kelvin value, and replacing the bulb does not require replacing the luminaire.
Motion detection and adjustment
The 180° PIR sensor responds to heat radiation from moving people or animals. Reach is up to 10 m across the detection zone and up to 3 m when approaching directly. The corresponding detection areas specified by the manufacturer are 157 m² and 14 m². Position the light to the side of the usual direction of travel for the best detection. The specified optimum mounting height is 2 m, with a maximum of 3 m.
The 5 sec–35 min time setting determines how long the light stays on after the last detected movement; a new detection restarts the timer. The 2–1000 lx twilight threshold determines how dark it must be before the sensor is allowed to switch the light on. Both settings are adjusted using controls on the light.
The sensor can be tilted vertically through 90° to adjust detection reach within approximately 2–10 m. The included masking stickers screen out unwanted detection directions, such as a nearby pavement or neighbouring property. A sneak-by guard also detects movement directly below the light. Walls, glass and other obstacles restrict PIR detection of heat radiation.
Housing for an outdoor wall
The UV-resistant plastic housing is combined with an opal plastic diffuser. IP44 provides protection against water splashes and solid objects of at least 1 mm, useful for a light mounted on an outdoor wall. IK07 describes tested resistance to mechanical impact.
Dimensions, installation and additional information
Dimensions and connection
Dimensions 120 × 110 × 255 mm (depth × width × height), net weight 570 g. Supply 230–240 V AC, 50 Hz. Electrical protection class II means double or reinforced insulation; mount on a wall following the instructions for this exact model. The supply lead can enter from the wall or run along the wall surface. Operating temperature −20 to +40 °C.
Sensor operation
Sensor standby power is 0.55 W; this is separate from the connected bulb wattage. Each light operates with its own sensor; shared sensor control is not provided. There is no Bluetooth or app control. Remote control is not provided. A basic light level between detections is not provided.
Package contents and care
One luminaire with motion sensor, mounting accessories and instructions, plus sensor masking stickers and a self-adhesive house-number sheet. The E27 bulb is not included. Clean with a soft, slightly damp cloth without aggressive cleaning agents. 3-year manufacturer warranty under its terms.
Manufacturer documents also identify this model as L 1.
Manufacturer article: 650612 · EAN: 4007841650612.
Manufacturer documents and drawings
- Technical datasheet (DE, PDF)
- Manufacturer warranty conditions (DE, PDF)
- Installation and operating manual (LV/EN/DE, PDF)
- Dimension drawing (DE, PDF)
- Tender specification (DE, DOCX)
- EU declaration of conformity (EN/DE, PDF)
- Quick start guide (EN/DE, PDF)
- Technical datasheet (EN, PDF)
- Dimension drawing (EN, PDF)
- Tender specification (EN, DOCX)
