Steinel
STEINEL L 810 SC LED outdoor sensor wall light, 9.8 W, 679 lm, 3000 K, anthracite — 065706
219.00€Bez PVN: 180.99€
STEINEL L 810 SC LED outdoor sensor wall light, 9.8 W, 679 lm, 3000 K, silver — 087562
219.00€
Ex Tax: 180.99€
Energy class:
Viewed 3 times
Categories
Cart
Account
Search
Recent View
Go to Top
All Categories
×
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Shopping Cart
×
Your shopping cart is empty!
Search
×
Recent View Products
×
Item specifics
- Light source type Integrated LED
- Replaceable light source No
- Voltage 220–240 V AC, 50/60 Hz
- Housing colour Silver
- Housing material Aluminium
- Light direction Up / down
- Diffuser material Opal plastic
- Dimensions (L×W×H) 146 × 230 × 91 mm (D × W × H)
- Mounting type Surface wall mounting, outdoors
- IP rating IP44
- IK rating IK03
- Protection class (electrical) II
- Operating temperature (Ta) −20…+40 °C
- Control method iHF sensor; STEINEL Connect App
- Soft light start Yes
- Replaceable driver No
- Weight 1040 g
- Warranty 3 years
- Wattage 9.8 W
- Luminous flux 679 lm
- Luminous efficacy (lm/W) 69 lm/W
- Colour temperature (CCT) 3000 K
- Light colour Warm white
- Colour rendering index (CRI/Ra) Ra 82
- Dimmable Yes
- Dimming method STEINEL Connect App
- Smart control Bluetooth Mesh
- Energy class D
- Energy consumption (kWh/1000 h) 10 kWh/1000 h
- Rated Lifetime (hours) >60 000 h L70B50 (25 °C)
- SKU 087562
- EAN 4007841087562
- Sensor type iHF
- Reach 1–5 m
- Detection angle 160°
- Optimal mounting height 2 m
- Maximum mounting height 2.5 m
- Time setting 5 s–60 min
- Twilight setting 2–2000 lx
- Manual override Yes, via app
- Watt-o-matic 10–100%; off / brightness-controlled / 10 s–60 min
- Parallel connection Bluetooth Mesh; master/master, master/slave
- Settings STEINEL Connect App
Product Description

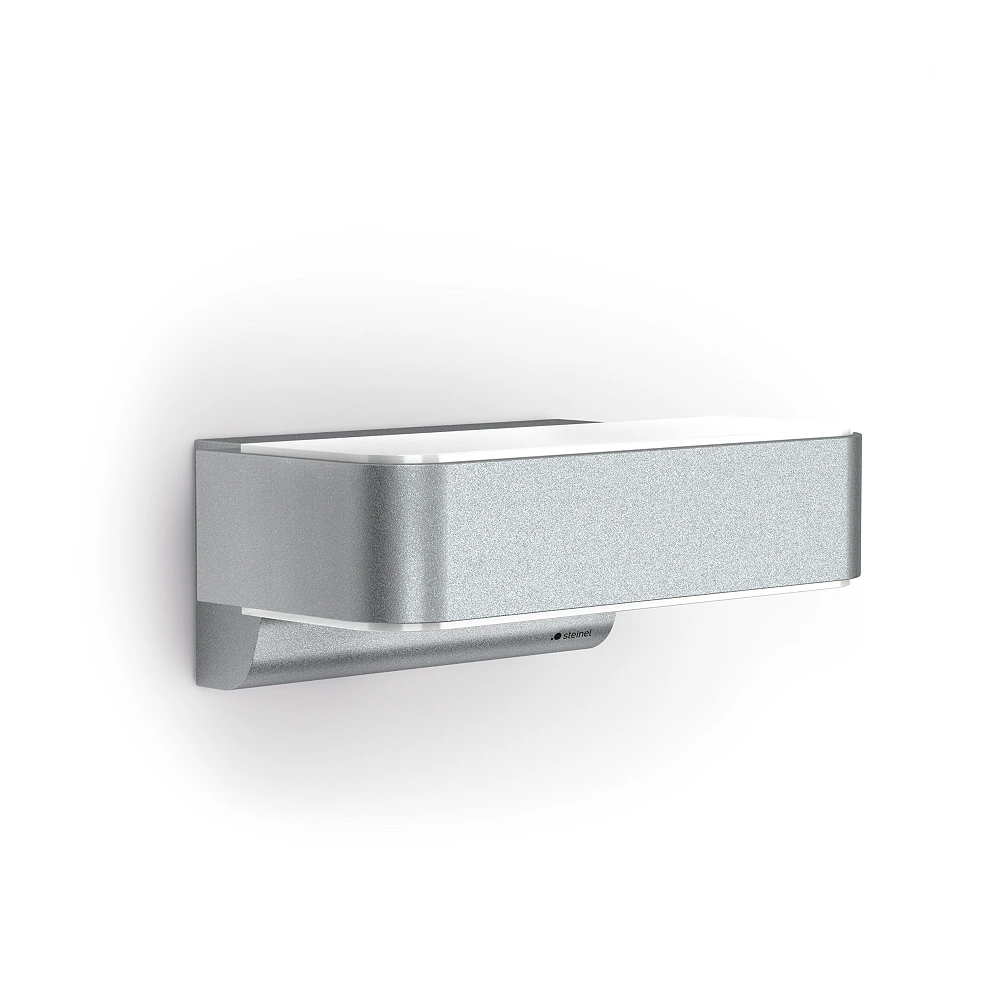

STEINEL L 810 SC is an outdoor LED wall light in silver that combines architectural illumination with automatic motion response. Its upward and downward light creates a feature on the wall above and below the fitting. The horizontal aluminium body suits an entrance, terrace or repeated installation along a façade, providing a consistent appearance in daylight as well as after dark. The integrated 9.8 W LED module delivers 679 lm.
The integrated LED module supplies warm white 3000 K light and is already included, so there is no separate bulb to buy. Opal covers form the upper and lower illuminated surfaces. This two-direction lighting effect is useful when the wall itself should become part of the evening setting around the house.
Concealed detection, convenient adjustment
A hidden 160° iHF high-frequency sensor responds to movement near the fitting. Its detection reach can be adjusted from 1 to 5 metres, allowing the response to suit a small entrance or the approach beside a wall. The recommended mounting height is 2 m. Electronic reach adjustment retains the clean appearance of the housing without an exposed sensor lens.
The STEINEL Connect app provides a choice of operating time from 5 seconds to 60 minutes and a twilight threshold from 2 to 2000 lux. Main light and basic light levels can be adjusted to combine a subtle night-time accent with a brighter response to movement. Soft starting and stopping make changes in brightness gradual; permanent lighting and schedule functions provide further flexibility.
Bluetooth Mesh allows compatible fittings to communicate wirelessly and operate as a group along a façade. Each light still needs its own mains connection. The IP44 housing is designed for outdoor wall mounting. This is the sensor-equipped version, article 087562. The integrated LED module and control gear cannot be replaced.
