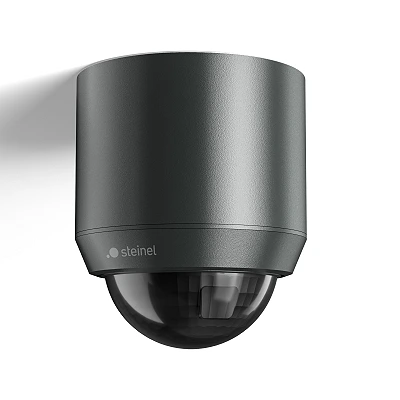

STEINEL MD IR N360 AP COM1 surface ceiling motion sensor 360°, Bluetooth Mesh, IP54, anthracite (079888)
152.00€Bez PVN: 125.62€

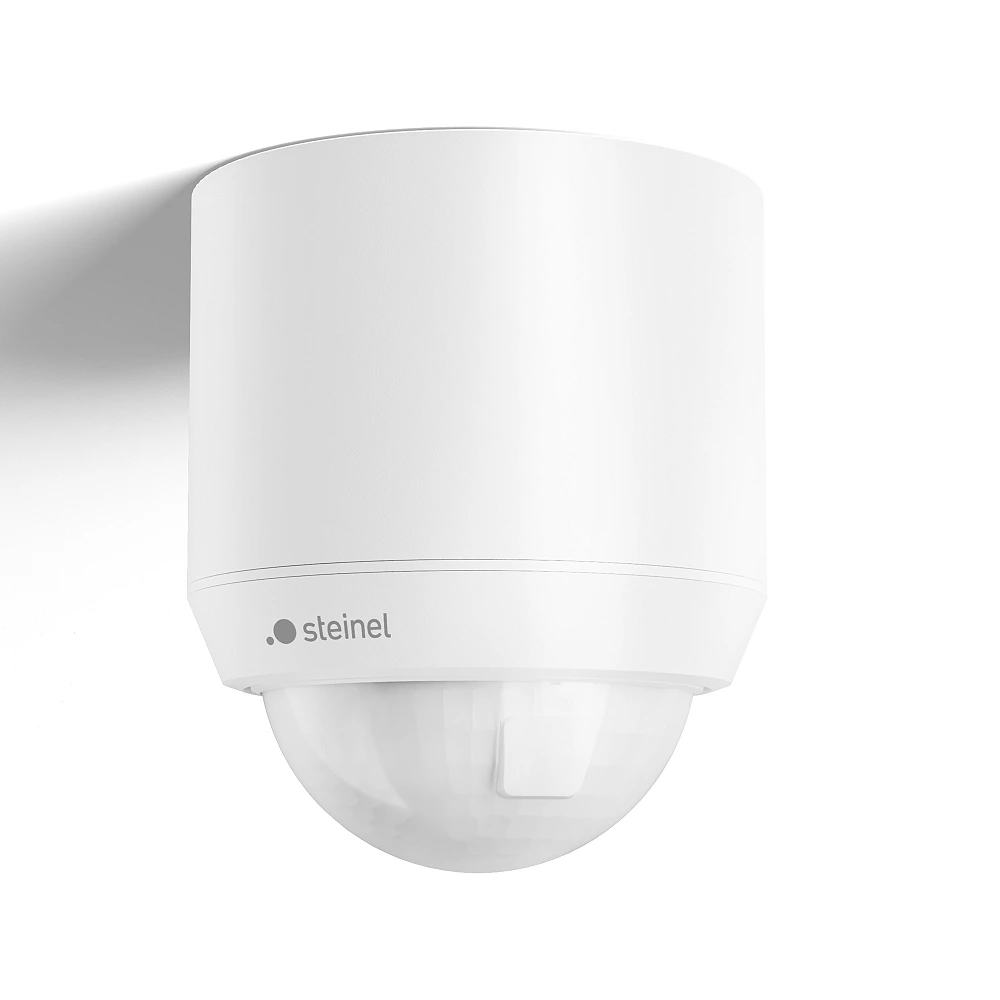

STEINEL MD IR N360 AP COM1 surface ceiling motion sensor 360°, Bluetooth Mesh, IP54, white (080006)
152.00€
Ex Tax: 125.62€
Viewed 6 times
Categories
Cart
Account
Search
Recent View
Go to Top
All Categories
×
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Shopping Cart
×
Your shopping cart is empty!
Search
×
Recent View Products
×
Item specifics
- Housing material Plastic
- Weight 165 g
- Number of detection zones 1179
- Sensor type Passive infrared (PIR); ambient-light measurement
- Installation Ceiling, surface-mounted AP; Indoors and outdoors according to manual
- Reach At 2.5 m mounting height: tangential Ø26 m; radial Ø6 m; Eagle Eye up to 6 m in one direction
- Detection angle 360°
- Optimal mounting height 2.5 m
- Maximum mounting height 6 m; permitted range 1.8–6 m
- Time setting 5 s–60 min; pulse 2 s ON /8 s pause
- Twilight setting 2–2000 lx; Teach and daylight mode
- Sensor system Four PIR sensors, each electronically adjustable 1–100%
- Segment masking Using supplied shrouds
- Relay load Incandescent/halogen up to 2000 W; LED/ECG up to 350 W, max. 50 units, C<132 µF (manual)
- LED load (W) 350 W per installation manual; max. 50 units, C<132 µF
- Parallel connection Bluetooth Mesh; wired interconnection also described in manual
- Output type COM1; one switched-live relay, ON/OFF, no dimming
- Interface & control COM1 relay; Bluetooth Mesh, groups and neighbouring-group control
- Settings STEINEL Connect app; test mode, Teach
- Voltage 220–240 V AC, 50–60 Hz
- Operating temperature −20…+40 °C
- IP rating IP54
- Dimensions (W×H×D) Ø80 × 93 mm (diameter × height)
- Warranty 5 years
- Colour / RAL White; RAL 9010
- In the box Sensor and matching-colour optical detection shrouds
- Manufacturer SKU 080006
- EAN 4007841080006
- Standby power consumption (W) <0.55 W
- RF frequency Bluetooth 2.4–2.48 GHz; 5 dBm
Product Description
Ceiling motion detection with individually adjustable coverage
STEINEL MD IR N360 AP COM1 is a surface-mounted ceiling motion detector combining passive infrared sensing with app configuration. This white version switches lighting automatically where people move through a detection area, such as an entrance, canopy, passage or another appropriately installed indoor or outdoor location. Its circular 80 mm diameter housing projects 93 mm from the mounting surface. The exact AP product page specifies IP54; the mounting arrangement and cable entries must follow the installation instructions to maintain the intended protection.
Detection depends on the direction of travel as well as distance. At the manual's reference mounting height of 2.5 m, tangential movement is detected over a diameter of up to 26 m, while the surrounding radial zone has a diameter of 6 m. The additional Eagle Eye optic extends detection in one selected approach direction to 6 m. Orienting this optic towards an entrance or expected approach route helps make useful coverage available where people move directly towards the sensor. These measurements describe different movement patterns, rather than a single uniform reach in every direction; the installation diagrams show how coverage changes with height.
Bluetooth Mesh configuration and lighting groups
Four PIR sensors have individually adjustable sensitivity, allowing the installation to respond differently to different directions. STEINEL Connect offers a 1–100% setting for each sensor, while the supplied shrouds restrict unwanted areas optically. This is useful when one side faces a busy walkway and another should respond only near the entrance itself. PIR detection relies on a moving heat source within the sensor's view. Walls, glass and the physical arrangement of a canopy therefore matter when choosing the position; test mode provides a practical way to check coverage before final settings are saved.
This COM1 version includes Bluetooth Mesh connectivity, so settings and group parameters can be managed without reaching the ceiling-mounted detector. Available app functions include light duration, twilight threshold, sensitivity, grouping and neighbouring-group activation. COM1 identifies the relay output used to switch the connected lighting circuit on and off. The lighting supply and switched load remain wired; Bluetooth provides configuration and communication between compatible devices. This combination suits an installation that needs straightforward mains switching together with convenient adjustment after commissioning.
The stay-on time is adjustable from 5 seconds to 60 minutes. A 2–2000 lx response threshold and Teach function allow switching to follow the lighting conditions at the actual location. A short delay can suit a passage, while a longer delay can support areas where people need time after entering. In pulse mode the COM1 output operates for 2 seconds followed by an 8-second pause. This behaviour is relevant when choosing equipment to be triggered by the sensor. Test mode helps separate coverage checks from the final everyday timing and light-level settings.
COM1 load selection and installation
The detector uses 220–240 V AC, 50–60 Hz. For load selection, this listing adopts the more conservative rating in the exact installation manual: LED/electronic-ballast loads up to 350 W, no more than 50 units and C<132 µF; incandescent and halogen loads up to 2000 W. The manufacturer's marketing and data sheet also contain 500 W and 600 W figures, so those higher values are not treated here as the permitted LED rating. Mounting heights from 1.8 to 6 m offer flexibility, with the relevant coverage diagram and approach direction determining the useful area in each installation.
- 360° PIR motion detection with an orientable Eagle Eye optic.
- Surface ceiling installation; white housing, RAL 9010.
- STEINEL Connect configuration and Bluetooth Mesh grouping.
- One switched COM1 lighting circuit with adjustable timing and twilight threshold.
Image context. In the manufacturer nexx.IS family composition, this white AP sensor is shown at right; the other pictured sensors are different family variants and are not included with this product.
