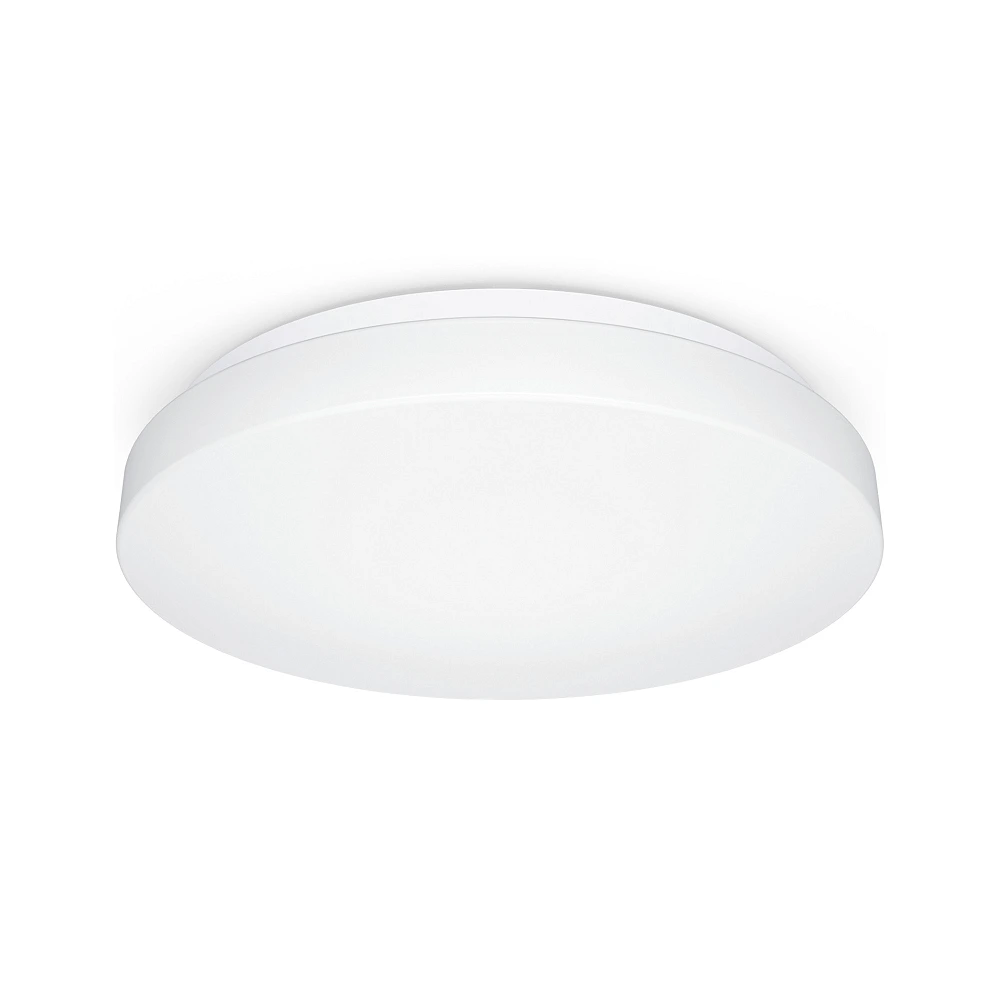

STEINEL RS 20 S LED sensor ceiling and wall light, 9.4 W, 942 lm, 3000 K, IP44, white — 079734
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Light source type Integrated STEINEL LED system
- Replaceable light source No
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour White
- Housing material Plastic
- Diffuser material Opal PMMA plastic
- Dimensions (L×W×H) Ø280 × 110 mm (diameter × projection)
- Mounting type Indoor wall or ceiling; concealed cable entry required for ceiling mounting
- IP rating IP44
- IK rating IK03
- Protection class (electrical) II
- Operating temperature (Ta) −10…+40 °C
- Replaceable driver No
- Additional switching capacity 800 W incandescent/halogen; 250 W LED/ECG, max. 50 devices, C < 88 µF
- Weight 0.437 kg
- Warranty 3 years
- Accessories 3 spacers, 3 screws, 3 wall plugs
- Wattage 9.4 W
- Luminous flux 942 lm
- Luminous efficacy (lm/W) 100 lm/W
- Colour temperature (CCT) 3000 K — warm white
- Colour rendering index (CRI/Ra) 82
- Colour consistency (SDCM) SDCM 3
- Power factor (PF) 0.91
- Dimmable No; not compatible with an external dimmer
- Energy class E (integrated light source)
- Energy consumption (kWh/1000 h) 10 kWh/1000 h
- Rated Lifetime (hours) 60 000 h (L70B50, 25 °C)
- SKU 079734
- EAN 4007841079734
- Sensor type HF high-frequency motion sensor, 5.8 GHz
- Reach Adjustable detection-zone diameter Ø1–8 m; up to 50 m²
- Detection angle 360°; aperture angle 160°
- Optimal mounting height 1–2.5 m
- Maximum mounting height 4 m
- Time setting 5 s–15 min
- Twilight setting 2–2000 lx
- Manual override 4 h, via a separately installed mains switch
- Watt-o-matic 10%; off / 10 min / 30 min / throughout dark period
- Soft light start Yes
- Parallel connection Wired, master/master; up to 10 lights
- Settings Potentiometers beneath cover; no app
Product Description
STEINEL RS 20 S is a round white LED light with a concealed motion sensor for hallways, stairs and utility rooms. Its opal PMMA cover diffuses the light, while the simple housing fits on either a wall or a ceiling. An integrated 9.4 W LED system delivers 942 lm of warm white 3000 K light, making it a practical choice for indoor routes where lighting should come on automatically when someone enters.
Automatic lighting with a concealed sensor
The built-in 360° high-frequency sensor can detect movement through glass and thin partitions. Sensitivity can be matched to the room: the detection zone has an adjustable diameter of approximately 1–8 m. Controls beneath the cover also set the ambient-light threshold and how long the light stays on. This is useful when reaching for a switch would be inconvenient, such as when carrying shopping or household items.
Basic lighting and coordinated switching
Soft start brings up the light gradually. Selecting 10% basic lighting maintains a low level for orientation, while movement activates full brightness. Basic light can be disabled or set to 10 minutes, 30 minutes or the entire dark period. A wired connection can link up to 10 lights for simultaneous switching. A separately installed mains switch also enables a four-hour manual override.
Indoor installation
With IP44 protection, this indoor fitting can also serve WC and washroom areas, subject to the requirements of the installation position. Ceiling installation requires a concealed power cable entering behind the fitting; a surface-run mains lead is not permitted for ceiling mounting. Article 079734 needs no app or separate bulb. Its integrated LED source and driver are not replaceable, and it must not be connected to an external dimmer.
- Hands-free lighting when entering with bags or equipment.
- A concealed sensor keeps the fitting visually simple.
- Basic lighting helps people find their way through shared routes.
- Linked fittings can illuminate a passage together.
