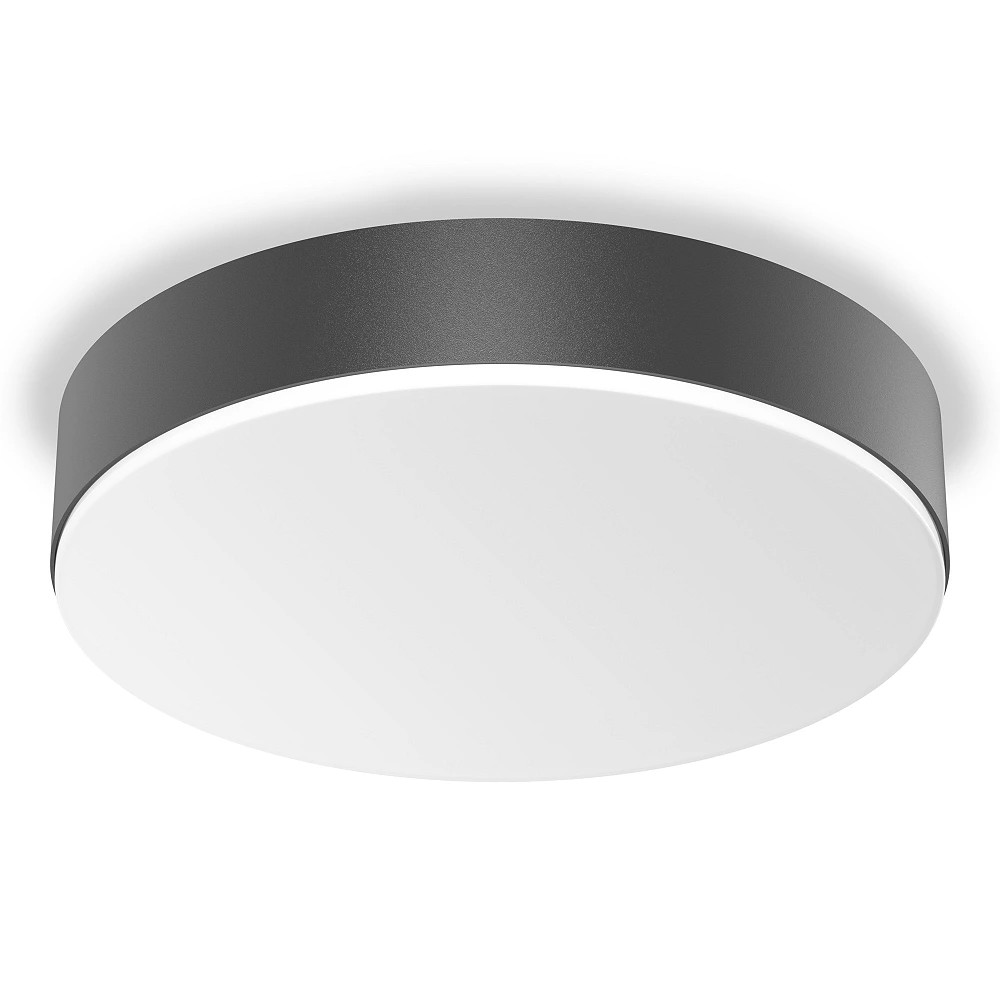

STEINEL RS PRO A30 SC LED sensor wall/ceiling light, Bluetooth, 20.7 W, 2534 lm, 3000 K, IP54, anthracite — 085353
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Light source type Integrated LED
- Replaceable light source No
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour Anthracite
- Housing material Aluminium
- Diffuser material Opal polycarbonate (PC)
- Dimensions (L×W×H) 331 × 331 × 69 mm (Ø 331 mm)
- Mounting type Surface-mounted; wall or ceiling; indoors and protected outdoors
- IP rating IP54
- IK rating IK10
- Protection class (electrical) II
- Operating temperature (Ta) −20…+40 °C
- Control method STEINEL Connect app; scenes, timer, semi-/fully automatic operation
- Basic light 0–100%; 1–60 min
- Soft light start Yes; adjustable fade-in/fade-out
- Replaceable driver No
- Weight 1889 g
- Warranty 5 years
- Accessories PB2 Bluetooth (084653) / PB4 Bluetooth (084660) buttons — optional
- Wattage 20.7 W
- Luminous flux 2534 lm
- Luminous efficacy (lm/W) 122.4 lm/W
- Colour temperature (CCT) 3000 K; fixed
- Colour rendering index (CRI/Ra) 80
- Colour consistency (SDCM) 3
- Power factor (PF) 0.59
- Dimmable Yes, through integrated control; not with an external dimmer
- Dimming method STEINEL Connect app; main light 0–100%
- Control protocol Bluetooth Mesh
- Energy class D (light source LS-0157)
- Energy consumption (kWh/1000 h) 21 kWh/1000 h
- Rated Lifetime (hours) L70B50 at 25 °C: >60,000 h
- SKU 085353
- EAN 4007841085353
- Sensor type Active high frequency (HF), 5.8 GHz
- Reach Max. Ø 8 m (50 m²); electronically adjustable
- Detection angle 360°
- Maximum mounting height 4 m
- Time setting 10 s–60 min
- Twilight setting 2–2000 lx; Teach function
- Segment masking No
- Manual override Selectable through control system
- Parallel connection Bluetooth Mesh master/master; neighbouring-group function
- Standby power consumption (W) 0.5 W
Product Description
STEINEL RS PRO A30 SC is the largest round wall and ceiling light in the A10/A20/A30 family in anthracite, with a 331 mm diameter and integrated automatic lighting control. It suits corridors, stairwells, ancillary rooms and shared washrooms, as well as protected outdoor locations such as covered walkways. An aluminium housing and opal polycarbonate diffuser provide a robust construction. IP54 protection and IK10 impact resistance suit busy shared spaces that call for a durable fitting.
Warm white light for larger spaces
The integrated 20.7 W LED system delivers 2534 lm at 3000 K. This version has a fixed colour temperature. The broad opal cover spreads the light, while the 69 mm housing depth keeps the fitting relatively close to the mounting surface. Designed for surface installation, the fitting can be mounted on either a wall or a ceiling.
Concealed HF detection with adjustable lighting
A concealed 360° high-frequency motion sensor provides electronic reach adjustment and a maximum detection-zone diameter of 8 m. Detection does not depend on a person's heat signature and can also work through glass, wood and lightweight partitions. The STEINEL Connect app sets activation conditions, lighting duration and brightness, with main and basic lighting adjustable from 0 to 100%. Adjustable fade-in and fade-out avoid abrupt changes in brightness.
Coordinated lighting through Bluetooth Mesh
Bluetooth Mesh connects compatible lights into groups. The neighbouring-group function can bring lighting on along a person's route. Lighting scenes, a timer and automatic or semi-automatic operation are available; compatible PB2/PB4 Bluetooth wall buttons are optional accessories. Brightness is controlled by the luminaire's own system; connection to a conventional external dimmer is not supported.
- Installation: surface-mounted on a wall or ceiling, for example in corridors, stairwells or storage ancillary rooms.
- Outdoor use: permitted in protected locations; assess the detection area, since weather and moving plants can cause unwanted activation of the sensitive HF sensor.
- Included: integrated LED light source and control gear, neither replaceable. Manufacturer's warranty: 5 years.
