Item specifics
- Light source type Integrated LED
- Replaceable light source No
- Voltage 220–240 V AC, 50–60 Hz; 186–250 V DC
- Housing colour White
- Housing material Plastic
- Diffuser material Opal polycarbonate (PC)

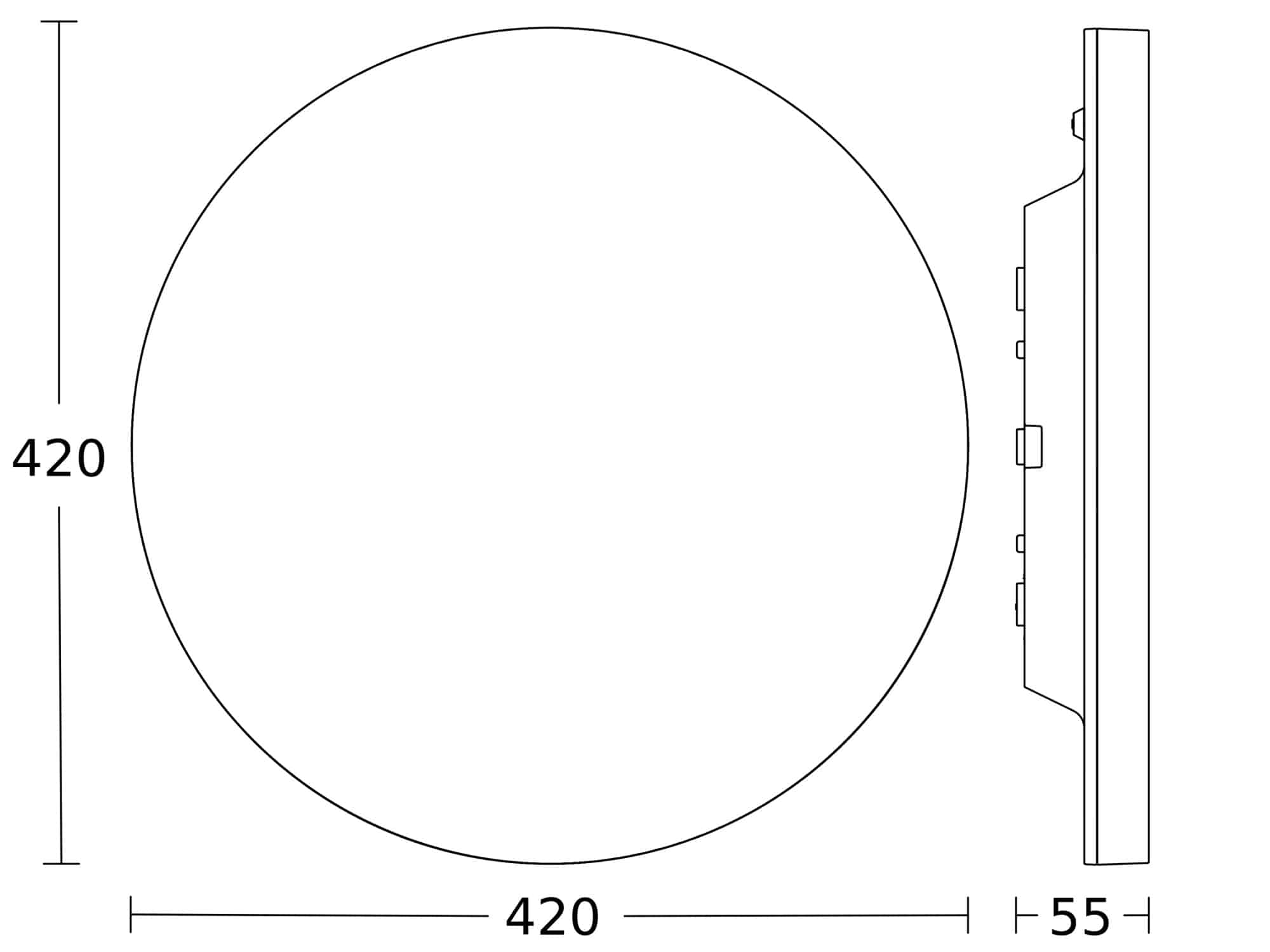

- Dimensions (L×W×H) 420 × 420 × 55 mm (Ø420 mm)
- Mounting type Surface-mounted; wall or ceiling; dry indoors
- IP rating IP40
- IK rating IK07
- Protection class (electrical) II
- Operating temperature (Ta) −20…+40 °C
- Control method STEINEL Connect app; groups, neighbouring groups and manual ON/ON-OFF; separately switchable backlight
- Basic light 0–100%; 1–60 min; plus backlight switchable on/off
- Soft light start Yes; adjustable fading 1–3 s
- Replaceable driver No
- Weight 1860 g
- Warranty 5 years
- Accessories Three spacers and two shrouds included. Optional: emergency module 064143, adapter 087234, Bluetooth buttons PB2 084653 / PB4 084660
- Wattage 23.7 W
- Luminous flux 2813 lm (backlight switched off)
- Luminous efficacy (lm/W) 119 lm/W
- Colour temperature (CCT) 3000 K; fixed
- Colour rendering index (CRI/Ra) 82
- Colour consistency (SDCM) 3
- Power factor (PF) 0.93
- Dimmable Yes, through integrated control; external mains dimmer not supported
- Dimming method STEINEL Connect; main light 0–100%, basic light 0–100%
- Control protocol Bluetooth Mesh
- Energy class D (light source LS-0067)
- Energy consumption (kWh/1000 h) 24 kWh/1000 h (light-source energy label)
- Rated Lifetime (hours) >60,000 h (L70B50, 25 °C); 100,000 h L70 / 74,000 h L80 (IEC 62717)
- Photobiological risk group RG1
- SKU 067793
- EAN 4007841067793
- Sensor type Active high frequency (HF), 5.8 GHz
- Reach Ø1–10 m (max. 79 m²); electronically adjustable
- Detection angle 360°; sensor aperture 160°
- Maximum mounting height 4 m; manufacturer diagram 2–4 m
- Time setting 5 s–60 min
- Twilight setting 2–2000 lx; Teach function
- Segment masking Yes; two included shrouds restrict detection directions
- Manual override Selectable
- Parallel connection Bluetooth Mesh; master/master, selectable slave mode
- Standby power consumption (W) 0.308 W
Product Description

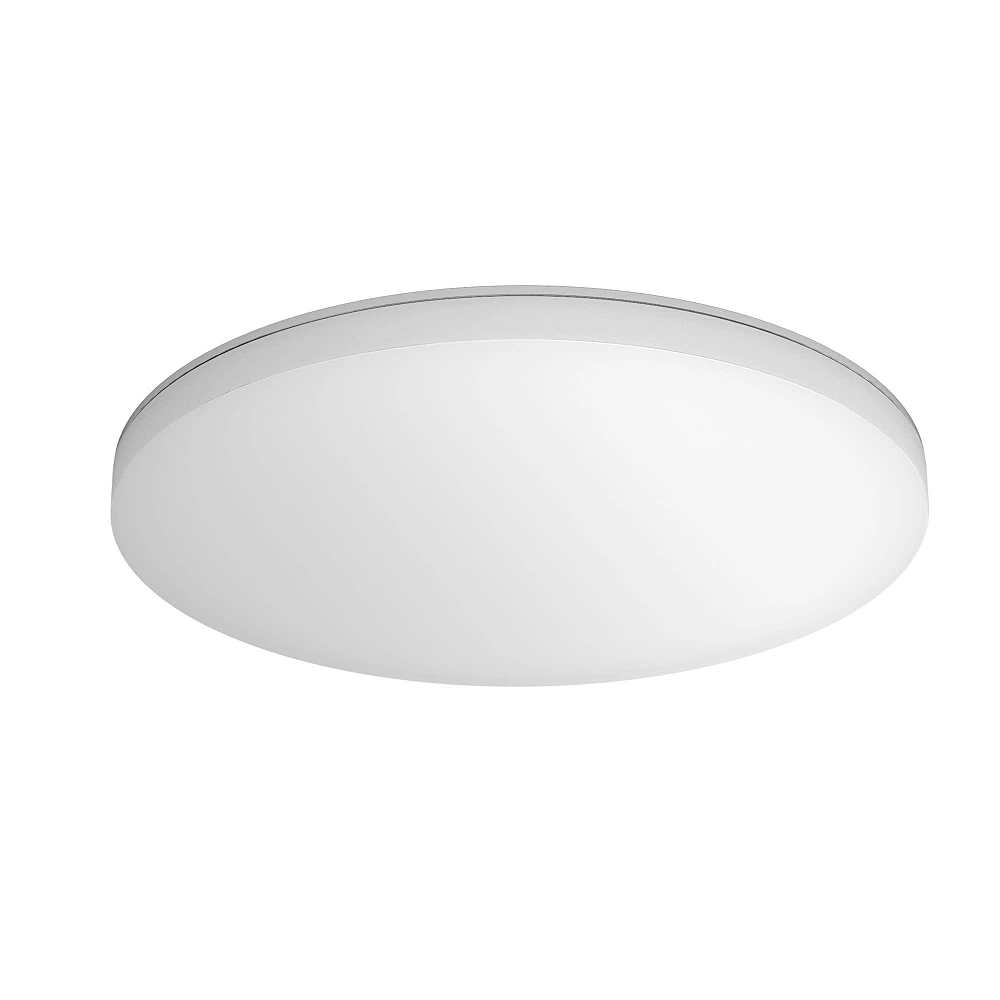

STEINEL RS PRO R30 plus SC is a round LED wall and ceiling light with a concealed motion sensor and smartphone control. Its broad opal surface and separately switchable backlight suit stairwells, corridors and entrance halls where the fitting also contributes to the appearance of the space. A 420 mm diameter and 55 mm depth provide a broad illuminated surface without the bulk of a pendant fitting.
Warm white light through an opal cover
The 23.7 W LED system delivers 2813 lm at a fixed 3000 K colour temperature. Warm white light gives entrances and shared spaces a calm, welcoming atmosphere. The opal polycarbonate cover conceals the individual LED points and creates a continuous illuminated surface. A white finish makes the fitting easy to coordinate with light-coloured walls and ceilings.
Automatic response and smartphone adjustment
A 360° high-frequency sensor sits behind the cover, leaving no projecting sensor lens on the outside. Detection coverage adjusts electronically to approximately 1–10 m in diameter, and the supplied shrouds restrict detection directions. HF sensing can respond through glass and lightweight partitions, so the detection area should be matched to the room. Time, twilight threshold and brightness are set using the STEINEL Connect app.
Orientation lighting and a wall-lighting accent
The plus version’s backlight creates a glow behind the fitting and emphasises its circular shape. It can be switched on or off separately. Adjustable basic lighting maintains a selected lower level between movements; when someone is detected, the fitting changes to the chosen main-light level. The fade rate on switching on and off can be adjusted for a gradual change in brightness.
Coordinated lighting across connected areas
Bluetooth Mesh connects lights into groups without an additional interconnection cable between fittings. The neighbouring-group function can bring the next area to its main or basic light level as a person approaches. Group settings are managed together, while each fitting’s detection reach can still be adjusted individually.
The fitting is intended for surface mounting on walls or ceilings in dry indoor areas. Both concealed and surface cable routes are supported. Emergency lighting can be added using the separately purchased 064143 module; a battery is not included as standard. Connection to a suitable central battery system is also supported. On DC power, the fitting operates at full brightness with its motion sensor deactivated.
- Protection: IP40, IK07 and electrical protection class II.
- Control: app, lighting groups, neighbouring groups and manual switching.
- Included: integrated LED system, three spacers and two detection shrouds.
- Warranty: five-year manufacturer's warranty.
