STEINEL RS PRO S10 SC PC LED sensor wall/ceiling light, Bluetooth, 9.1 W, 979 lm, 3000 K, IP20, silver/white — 081096
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Light source type Integrated LED
- Replaceable light source No
- Voltage 220–240 V AC, 50–60 Hz; 186–250 V DC
- Housing colour Silver/white (opal white cover)
- Housing material Aluminium
- Diffuser material Opal polycarbonate (PC)
- Dimensions (L×W×H) 300 × 300 × 71 mm (Ø 300 mm)
- Mounting type Surface-mounted; wall or ceiling; dry indoors
- IP rating IP20
- IK rating IK07
- Protection class (electrical) II
- Operating temperature (Ta) −20…+40 °C
- Control method STEINEL Connect app; groups, semi-/fully automatic operation, presence logic
- Basic light 7–100%; 1–60 min or all night
- Soft light start Yes; fade-in/fade-out 1–3 s
- Replaceable driver No
- Weight 1280 g
- Warranty 5 years
- Accessories PB2 Bluetooth (084653) / PB4 Bluetooth (084660) buttons — optional
- Wattage 9.1 W
- Luminous flux 979 lm
- Luminous efficacy (lm/W) 108 lm/W
- Colour temperature (CCT) 3000 K; fixed
- Colour rendering index (CRI/Ra) 82
- Colour consistency (SDCM) 3
- Power factor (PF) 0.90
- Dimmable Yes, through integrated control; not with an external mains dimmer
- Dimming method STEINEL Connect app; main light 7–100%
- Control protocol Bluetooth Mesh
- Energy class D (light source LS-0146)
- Energy consumption (kWh/1000 h) 10 kWh/1000 h
- Rated Lifetime (hours) IEC 62717: L70 100,000 h; L80 69,000 h; L70B50 at 25 °C >60,000 h
- SKU 081096
- EAN 4007841081096
- Sensor type Active high frequency (HF), 5.8 GHz
- Reach Ø 1–8 m (max. 50 m²); electronically adjustable
- Detection angle 360°; aperture 160°
- Maximum mounting height 4 m
- Time setting 5 s–60 min
- Twilight setting 2–2000 lx; Teach function
- Segment masking Included shrouds restrict detection in four directions
- Manual override Selectable through control system; 100% light in DC operation
- Parallel connection Bluetooth Mesh; neighbouring-group function
- Standby power consumption (W) Sensor 0.38 W; network 0.33 W
Product Description

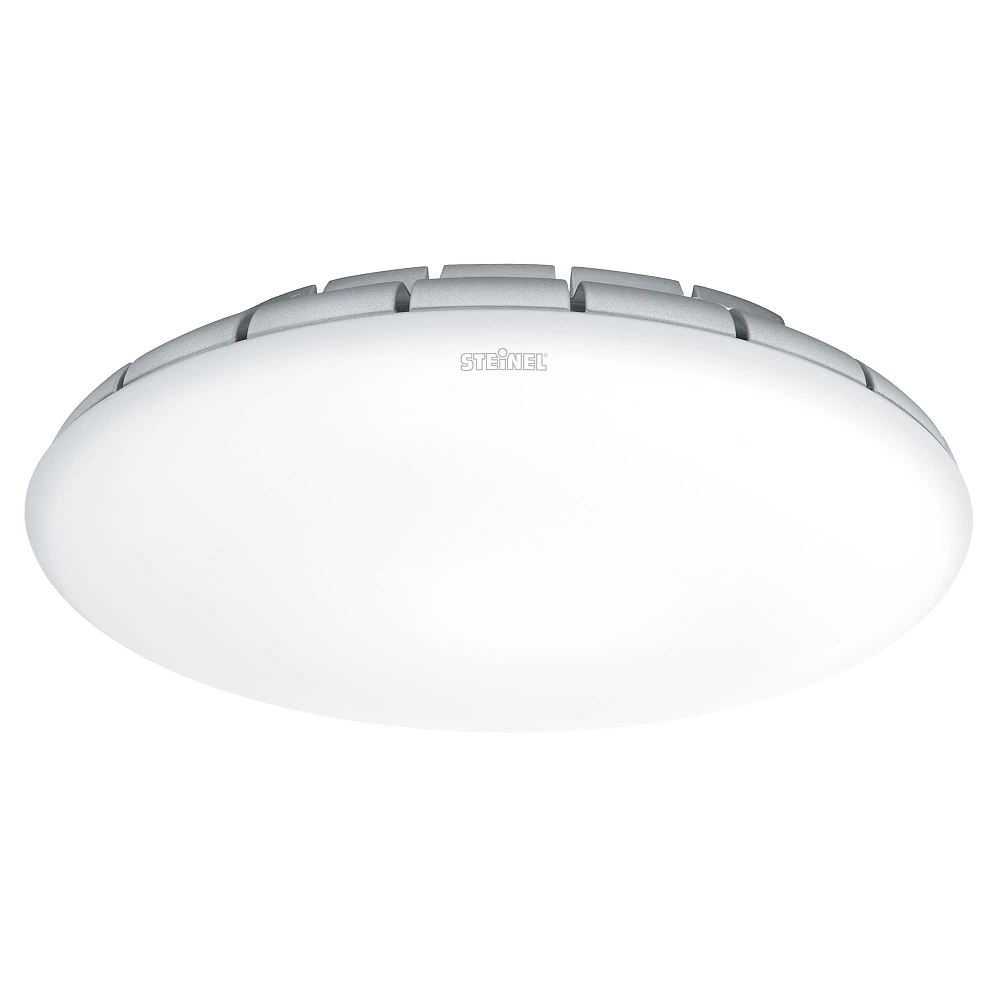

STEINEL RS PRO S10 SC PC is a round LED wall and ceiling light for automatically controlled lighting in dry indoor areas. It suits office corridors, stairwells, lobbies and ancillary rooms where lighting needs to respond to people moving through the building. A visible silver aluminium base and opal white polycarbonate cover give the fitting an unobtrusive appearance, while cooling fins help dissipate heat from the LEDs.
Warm white light in a shallow fitting
The 9.1 W LED system delivers 979 lm at 3000 K. This article has a fixed colour temperature and electronically adjustable brightness. The opal cover spreads light across its round surface. Measuring 300 mm in diameter and 71 mm high, the light mounts directly on a wall or ceiling. Its IP20 rating requires a dry installation location.
Concealed sensing with an adjustable detection area
The integrated 360° HF sensor detects movement from behind the cover, leaving the front free of a protruding sensor lens. The detection-zone diameter adjusts electronically from 1 to 8 m, while the included shrouds can limit detection in four directions. HF technology can also respond to movement through glass, doors or lightweight partitions, so sensitivity should be matched to the room layout.
App control and coordinated lighting groups
The STEINEL Connect app adjusts lighting duration, the twilight threshold, and main and basic light levels from 7 to 100%. Fade-in and fade-out can be adjusted, and basic lighting can provide orientation between movement events. Bluetooth Mesh connects compatible luminaires into groups; the neighbouring-group function brings an adjacent group to its selected light level. Automatic or semi-automatic operation and presence-detector logic are available. PB2/PB4 Bluetooth wall buttons are optional accessories.
For normal operation, the fitting uses a 220–240 V AC supply. It also supports 186–250 V DC for connection to a suitable central battery system; light output is set to 100% during DC operation. There is no built-in battery for independent emergency lighting. Brightness is managed by the luminaire's own control system; a conventional external mains dimmer is not supported.
- Installation: on walls or ceilings in dry indoor areas.
- Construction: aluminium housing, opal PC cover and IK07 impact resistance.
- Light source: integrated LED and control gear, neither replaceable.
- Warranty: five-year manufacturer's warranty.
