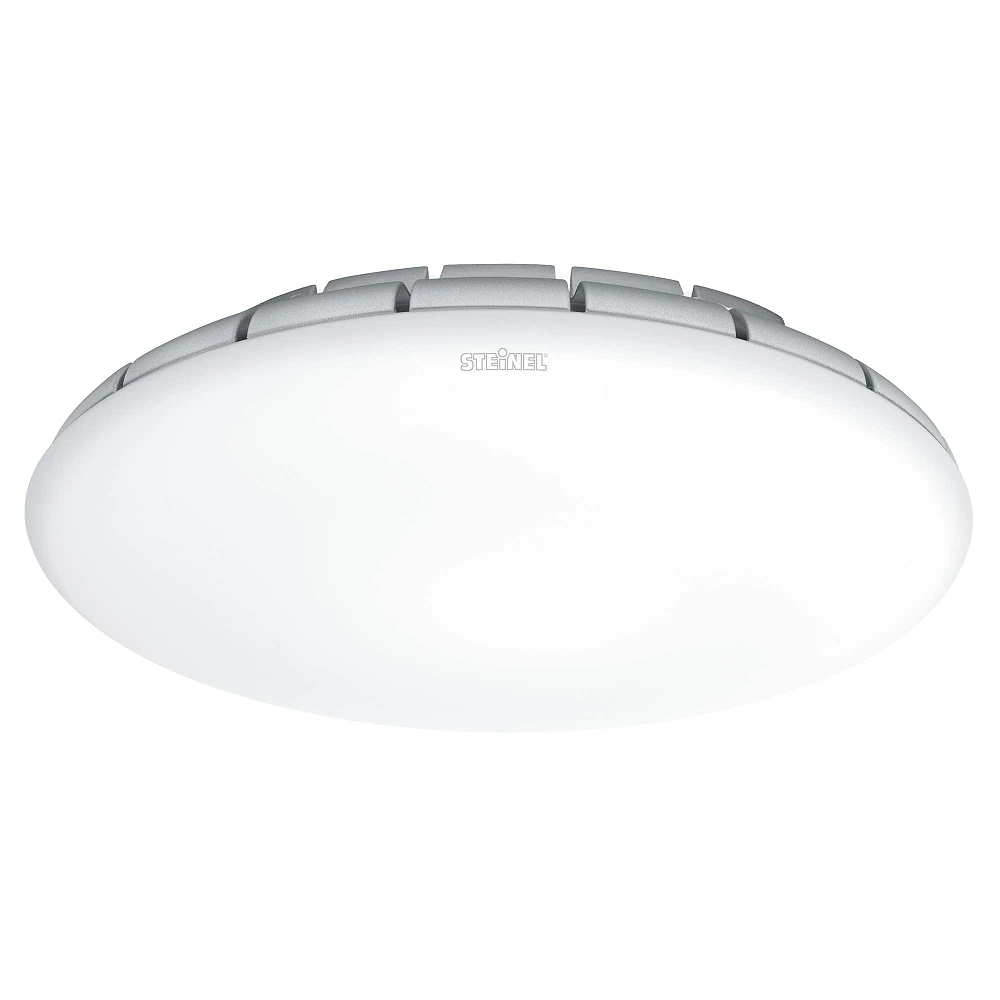

STEINEL RS PRO S20 SC PC LED sensor wall/ceiling light, Bluetooth, 15.7 W, 1630 lm, 3000 K, IP20, silver — 067564
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Light source type Integrated LED
- Replaceable light source No
- Voltage 220–240 V AC, 50–60 Hz; 186–250 V DC
- Housing colour Silver
- Housing material Aluminium
- Diffuser material Opal polycarbonate (PC)
- Dimensions (L×W×H) 300 × 300 × 71 mm (Ø 300 mm)
- Mounting type Surface-mounted; wall or ceiling; indoors
- IP rating IP20
- IK rating IK07
- Protection class (electrical) II
- Operating temperature (Ta) −20…+40 °C
- Control method STEINEL Connect app; groups and neighbouring groups, manual ON/ON-OFF
- Basic light 7–100%; 1–60 min
- Soft light start Yes; adjustable fade-in/fade-out
- Replaceable driver No
- Weight 1280 g
- Warranty 5 years
- Accessories PB2 Bluetooth (084653) / PB4 Bluetooth (084660) buttons — optional
- Wattage 15.7 W
- Luminous flux 1630 lm
- Luminous efficacy (lm/W) 104 lm/W
- Colour temperature (CCT) 3000 K; fixed
- Colour rendering index (CRI/Ra) 82
- Colour consistency (SDCM) 3
- Power factor (PF) 0.90
- Dimmable Yes, through integrated control; not with an external dimmer
- Dimming method STEINEL Connect app; adjustable main and basic lighting
- Control protocol Bluetooth Mesh
- Energy class D (light source LS-0147)
- Energy consumption (kWh/1000 h) 16 kWh/1000 h (light-source energy label)
- Rated Lifetime (hours) >60,000 h (L70B50, 25 °C); 100,000 h L70 / 66,000 h L80 (IEC 62717)
- SKU 067564
- EAN 4007841067564
- Sensor type Active high frequency (HF), 5.8 GHz
- Reach Max. Ø 10 m (79 m²); electronically adjustable
- Detection angle 360°
- Maximum mounting height 4 m
- Time setting 5 s–60 min
- Twilight setting 2–2000 lx; Teach function
- Segment masking Yes, detection-zone restriction
- Manual override Selectable; 4 h
- Parallel connection Bluetooth Mesh; master/master and master/slave
- Standby power consumption (W) 0.39 W
Product Description
STEINEL RS PRO S20 SC PC is a round silver wall and ceiling fitting for corridors, stairwells and dry ancillary rooms. Its aluminium housing has distinctive cooling fins, while the opal polycarbonate cover forms a broad luminous front. IP20 protection and IK07 impact resistance suit everyday indoor use. This model is intended for indoor wall or ceiling installation.
Warm white light with a shallow profile
The integrated 15.7 W LED system delivers 1630 lm at 3000 K. This article has a fixed colour temperature, making it straightforward to keep a consistent light tone throughout a space. A 300 mm diameter and 71 mm depth work well in repeated layouts along a corridor or across stair landings. No separate bulb is required: the light source and control gear are built into the fitting.
Concealed detection that responds to movement
The 360° high-frequency sensor detects movement across a zone up to 10 m in diameter, with sensitivity adjustable to the installation. HF detection measures changes in reflected signals and can also respond through glass and lightweight partitions, so careful reach adjustment helps where neighbouring rooms are close together. The STEINEL Connect app sets the stay-on time from 5 seconds to 60 minutes and the ambient-light threshold. Teach mode uses the current lighting level as a reference.
Connected groups through Bluetooth Mesh
Bluetooth Mesh allows compatible lights to work in groups without an extra control cable. The neighbouring-group function can prepare lighting in the next area, while adjustable basic lighting from 7 to 100% provides orientation between detections. Main-light brightness and gradual fade-in or fade-out are configured in the app. Four-hour continuous lighting is also selectable.
- Installation: surface mounting on an indoor wall or ceiling.
- Control: STEINEL Connect and compatible Bluetooth buttons; PB2/PB4 are optional accessories.
- Power: connection to a suitable central battery system is supported; there is no built-in emergency battery.
- Operation: the integrated LED source and driver are not replaceable; do not use an external mains dimmer. Manufacturer's warranty: 5 years.
