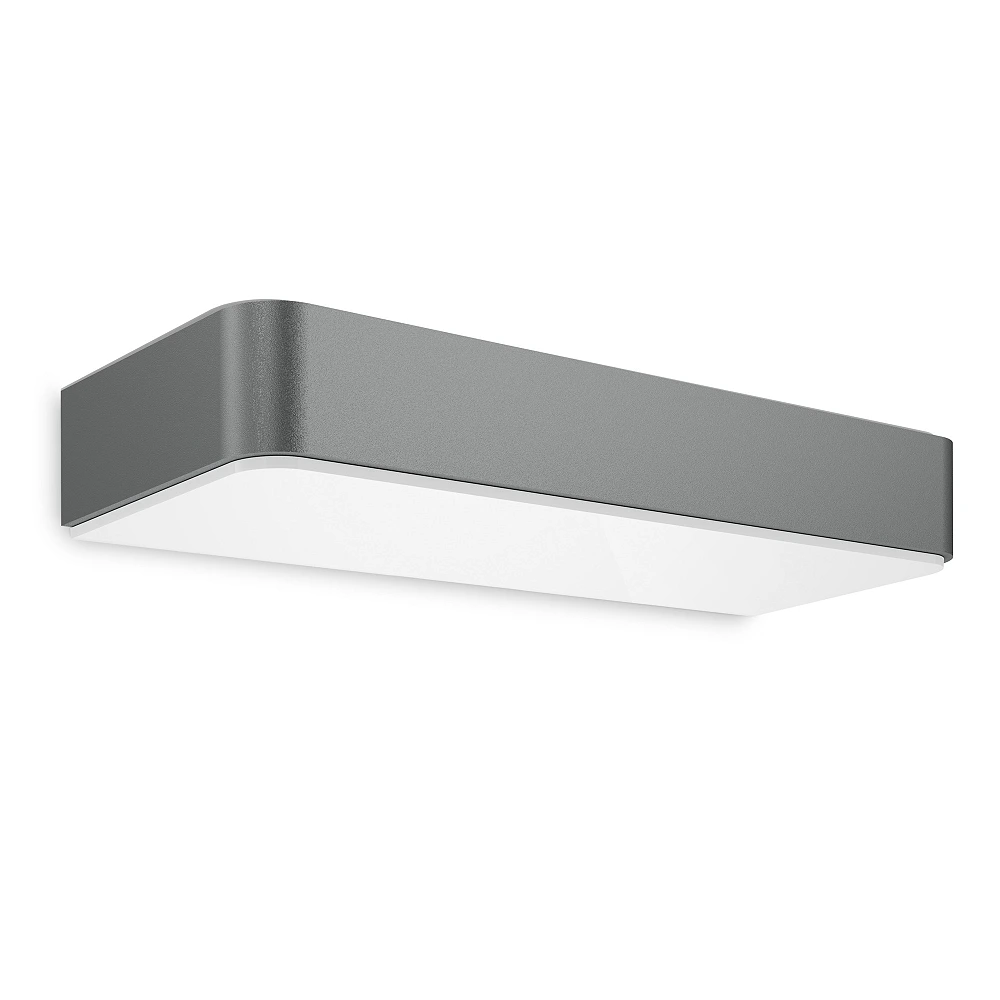

STEINEL XSolar SOL-O solar wall light, without motion sensor, 7 lm, 3000 K, anthracite — 052966
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Your shopping cart is empty!
Item specifics
- Light source type Integrated STEINEL LED light source
- Replaceable light source No — integrated LED module
- Voltage Solar battery supply; no 230 V mains connection required
- Housing colour Anthracite
- Housing material Aluminium
- Light direction Downward
- Diffuser material Structured plastic
- Dimensions (L×W×H) 91 × 242 × 38 mm (depth × width × height)
- Mounting type Outdoor wall mounting
- Mounting height Up to 2.5 m
- IP rating IP44
- IK rating IK03
- Protection class (electrical) III
- Operating temperature (Ta) −20…+40 °C; battery charging from 0 °C
- Lamp has a switch Yes — programme selector on the light
- Control method OFF/P1/P2 programme selector
- Remote control included No — controls on the light
- Basic light P2 — reduced light from dusk to dawn
- Soft light start No
- Twilight setting 2 lux — fixed twilight threshold
- Weight 557 g — manufacturer net weight
- Warranty 3-year manufacturer warranty subject to its terms
- Accessories light with integrated LED, solar panel and LiFePO4 battery, wall bracket, 2 screws, 2 wall plugs and instructions
- Wattage 0.07 W — complete luminaire power
- Luminous flux 7 lm — complete luminaire output
- Colour temperature (CCT) 3000 K
- Light colour Warm white
- Colour rendering index (CRI/Ra) 80–89
- Colour consistency (SDCM) SDCM 5
- Dimmable Brightness managed automatically by the light; not for an external dimmer
- Smart control None — no Bluetooth or Wi-Fi
- Rated Lifetime (hours) 50,000 h; L70B10 — LED life, not battery lifetime
- SKU 052966
- EAN 4007841052966
- Included Yes — integrated LED light source included
- Power source Solar energy and built-in battery
- Battery technology Lithium iron phosphate (LiFePO4)
- Battery capacity (mAh) 2000 mAh
- Number of batteries 1 × 2000 mAh
- Battery included Yes — LiFePO4 battery
- Replaceable battery Users must not open the battery enclosure; contact service for repair
- Charging method Solar panel; additional USB-C charging
- Charging port USB-C — input for charging the light battery
- Charging voltage (V) 5 V DC (USB-C charging)
- Charging current (A) Up to 3 A (USB-C charging)
- Charging time (h) Up to 6 h via USB-C; solar charging depends on conditions
- Charge indicator Red LED flashing in normal operation — low charge; during USB-C charging: flashing — charging, steady — fully charged
- Charging cable included No — USB-C cable purchased separately
- Charger included No — USB-C charger purchased separately
- Solar panel configuration Integrated on top of the light
- Solar cell technology Monocrystalline
Product Description
STEINEL XSolar SOL-O in anthracite is a compact outdoor solar wall light with downward illumination. Its integrated solar panel stores energy in the battery during the day, so no 230 V mains connection is needed at the wall. This version responds to ambient light levels and has no motion detector.
Low-level light for orientation and façade accents
The 7 lm output and 0.07 W power input are intended for low-level orientation lighting. This is not a bright entrance or courtyard floodlight. It provides 3000 K warm-white light, with brightness automatically adapted to battery charge. Its downward light can also illuminate an existing wall-mounted number or a small façade feature; this version does not include a number panel.
Dusk control and two lighting programmes
- OFF — off: factory setting.
- P1 — evening mode: light starts when ambient light falls below 2 lux and switches off automatically after approximately 4 hours.
- P2 — night mode: reduced continuous light from dusk until dawn.
In both modes, electronics adjust brightness to battery charge. There is no motion sensor, so approaching the light does not increase its brightness. Select the mode on the light itself; app control and an external dimmer are not provided. The manual specifies P2 for first activation.
Solar energy with additional USB-C charging
The integrated monocrystalline solar panel charges the supplied lithium iron phosphate (LiFePO4) battery: 2000 mAh. Choose a position with as much direct sunlight as possible, preferably facing south. Overhanging roofs, trees, dirt and installation behind glass reduce available solar energy.
When sunlight is insufficient, charge through the USB-C socket (5 V, up to 3 A); STEINEL specifies up to 6 hours for charging. The USB-C cable and charger are not included. Remove the body from the wall bracket and open the socket cover to charge. USB-C is an input for charging the light, not a power output for a phone.
A flashing red LED during normal operation indicates low charge. While a charger is connected, flashing means charging and a steady red light means fully charged. With a deeply discharged battery, the LED may take up to approximately 10 minutes to start flashing. Fully charge the battery before first use.
Outdoor installation, protection and care
Dimensions are 91 × 242 × 38 mm (depth × width × height). The manufacturer lists a net weight of 557 g. The housing is aluminium and the light cover is structured plastic. IP44 provides protection against splashing water and solid objects larger than 1 mm; IK03 specifies impact resistance. Electrical protection class III corresponds to low-voltage battery operation.
The operating range is −20…+40 °C, while the battery charges only from 0 °C. Operation below freezing therefore does not mean the battery can charge at that temperature. Short winter days and snow may make additional USB-C charging necessary. Keep the panel clean using a soft cloth and mild detergent.
The integrated LED light source is not replaceable. STEINEL specifies 50,000 h, L70B10; this describes LED lumen maintenance, not battery lifetime. Colour rendering is CRI 80–89 and initial colour consistency is SDCM 5. For prolonged storage, select off mode, fully charge the battery and recharge it periodically. Users must not open the battery enclosure; repairs require specialist service.
What is included
Light with integrated LED, solar panel and LiFePO4 battery, wall bracket, 2 screws, 2 wall plugs and instructions. The USB-C cable and charger are purchased separately. Manufacturer warranty: 3 years, subject to its terms.
Note on manufacturer data
The current datasheet for this exact EAN specifies 7 lm, 0.07 W and no soft light start. The shared manual also gives maximum figures of 7.5 lm and 0.1 W, while introductory copy mentions soft start. This listing uses the product-specific technical table. The light is intended for low-level orientation or house number illumination.
