Item specifics
- Light source type Integrated STEINEL LED system; light source included
- Replaceable light source No — LED light source cannot be replaced
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour Anthracite
- Housing material Aluminium
- Diffuser material Opal plastic
- Diffuser colour Opal white
- Dimensions (L×W×H) 65 × 116 × 235 mm (depth × width × height)
- Mounting type Surface mounting on an outdoor wall
- IP rating IP44 — protection against solid objects of 1 mm or larger and splashing water
- IK rating IK03
- Protection class (electrical) Class II — double insulation
- Operating temperature (Ta) −10…+40°C
- Control method STEINEL Connect app; Bluetooth Mesh groups and weekly schedule
- Dimming method Via Bluetooth Mesh in the STEINEL Connect app
- Remote control included No — remote control is not included
- Basic light 5–100% basic light; 10 s–60 min, off or brightness-controlled
- Soft light start Yes — soft light start
- Driver included Yes — LED control gear is built in
- Replaceable driver No — LED control gear cannot be replaced
- Weight 448 g — manufacturer-specified net weight
- Warranty Manufacturer warranty: 3 years, subject to STEINEL terms
- Accessories Mounting accessories; house-number panel and stickers are not included
- Wattage 6.6 W
- Luminous flux 566 lm — total luminaire luminous flux
- Luminous efficacy (lm/W) 85 lm/W — total luminaire efficiency
- Colour temperature (CCT) 3000 K — warm white
- Colour rendering index (CRI/Ra) CRI / Ra 82
- Dimmable Yes — main light adjustable from 5–100% in the app
- Control protocol Bluetooth Mesh
- Energy class E — integrated light source LS-0053; EPREL 882554
- Energy consumption (kWh/1000 h) 7 kWh/1000 h — light source energy-label value
- Rated Lifetime (hours) >60,000 h, L70B50 at 25°C; lumen-maintenance rating, not the warranty period
- SKU 067212
- EAN 4007841067212
- Number of detection zones 3 — each zone can be enabled or disabled separately
- Sensor type Built-in passive infrared (PIR) digi sensor
- Reach Up to 8 m tangentially (101 m²); up to 6 m when approaching directly (57 m²)
- Detection angle 180°
- Optimal mounting height 2 m
- Maximum mounting height 2.5 m
- Twilight setting 2–2000 lx; Teach-in stores the current ambient light level
- Sneak-by guard Yes — detection beneath the sensor
- Segment masking Yes — electronic zone masking and reach adjustment in the app
- Manual override Yes — selectable independently of motion
- Settings Via smartphone or tablet app; slave mode can also be selected
- Time setting 5 s–60 min — main-light stay-on time after motion
Product Description

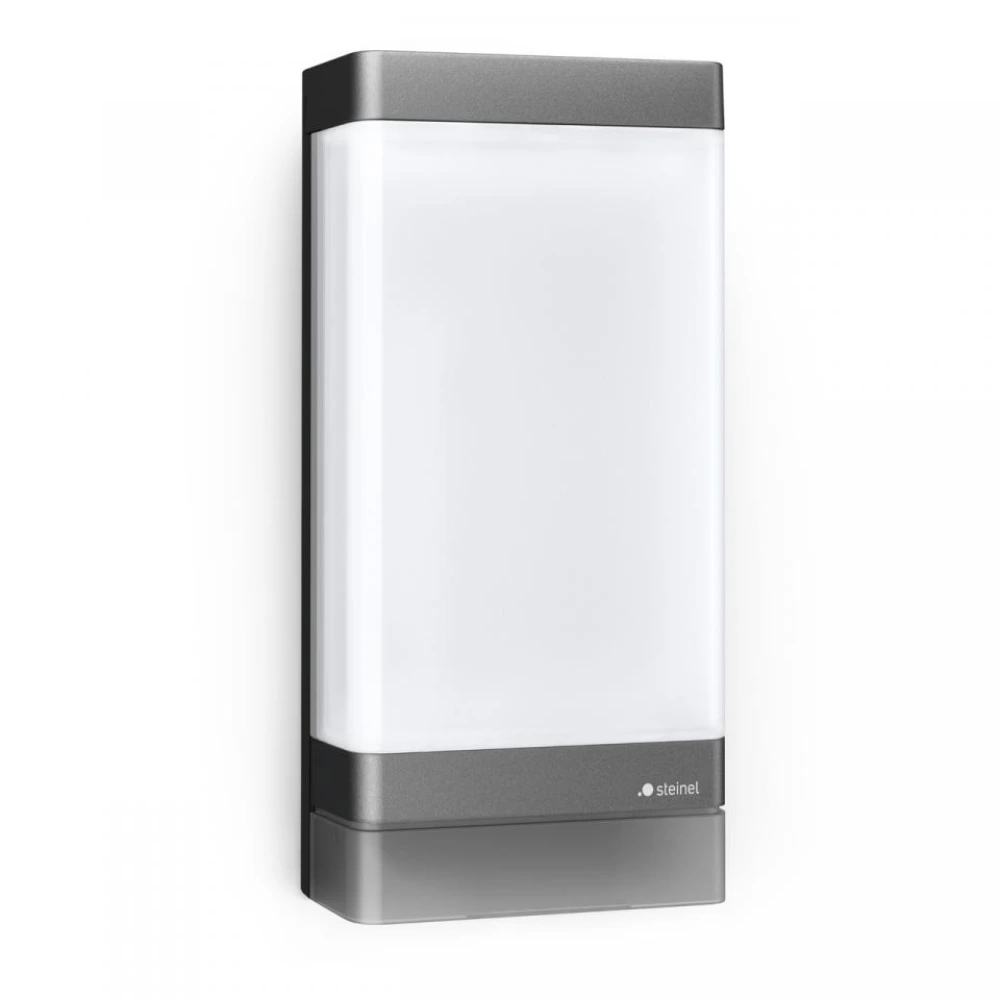

STEINEL L 271 digi SC is an anthracite outdoor LED wall light with a concealed motion detector. It suits entrances, facades, terraces and balconies. Its 6.6 W LED system delivers 566 lm of warm white light at 3000 K. Use the STEINEL Connect app to adjust settings and link compatible lights through Bluetooth Mesh. Article number: 067212.
180° digi sensor with three adjustable zones
The concealed infrared sensor detects movement up to 8 m across the detection area and up to 6 m when approaching directly. The manufacturer specifies detection areas of 101 m² and 57 m² respectively. These figures describe motion detection, not the illuminated area. Each of the three detection zones can be enabled or disabled, with reach adjusted in the app to avoid unwanted areas such as a nearby pavement. Detection beneath the sensor is included. Adjustment is electronic rather than mechanical.
The optimum mounting height is 2 m; the maximum is 2.5 m. A selectable slave mode allows the light to respond to commands from another compatible device.
Light settings and Bluetooth groups
- 5–100% main light: adjust brightness to the location.
- Soft light start: brightness rises and falls gradually.
- Weekly schedule: set switching times for individual days of the week.
- Bluetooth Mesh: link compatible lights into groups and control them in the app.
- Continuous light: switch the light on without a motion command.
- 5 s–60 min stay-on time: sets how long the main light remains on after motion.
- 2–2000 lx twilight threshold: lower settings allow activation only in darker conditions. Teach-in stores the current light level.
- 5–100% basic light: subdued orientation lighting that changes to the main-light level on movement. Basic-light duration: 10 s–60 min; off or brightness-controlled operation is also available.
Settings are made on a smartphone or tablet. Bluetooth provides control, not power: every luminaire needs its own 220–240 V mains connection.
Minimum brightness: the current STEINEL product page specifies 5–100%, while the linked operating instructions state 10–100%. If operation below 10% is essential, confirm the settings available on the particular unit before purchase.
Light and energy use
566 lm describes total luminaire output, 3000 K means warm white, and CRI / Ra 82 describes colour rendering. The manufacturer specifies a total luminaire efficiency of 85 lm/W. The integrated LS-0053 light source has energy class E, a label value of 7 kWh/1000 h and EPREL number 882554. The energy label applies to the light source; rated luminaire power is 6.6 W.
LED life rating: more than 60,000 h, L70B50 at 25°C. This is a statistical lumen-maintenance rating, not the warranty period. The power supply also has a manufacturer-specified average rated life of more than 60,000 h at 25°C.
Installation, materials and supplied items
Designed for surface mounting on an outdoor wall, the light combines an anthracite aluminium housing with an opal plastic diffuser. IP44 protects against solid objects of 1 mm or larger and splashing water. IK03 is the enclosure impact-resistance rating; electrical protection class II means double insulation. Operating temperature: −10…+40°C. Mains connection: 220–240 V, 50–60 Hz.
Supplied with one luminaire, integrated LED system, control gear and mounting accessories. A house-number panel and number stickers are not included. No separate bulb is required. The LED light source and control gear cannot be replaced. A remote control is not included. The manufacturer lists the TapDuo C wireless pushbutton, 088620 as a separately available accessory.
Manufacturer warranty: 3 years, subject to STEINEL terms. Read the instructions and disconnect power before installation; have mains connections made by a qualified installer. Manufacturer: STEINEL GmbH, Dieselstraße 80–84, 33442 Herzebrock-Clarholz, Germany; product@steinel.de.
Choose the right L 270 / L 271 version
L 271 digi SC has a sensor; L 271 digi C has no sensor; L 270 digi SC adds an illuminated house-number panel. Each version is sold separately. The gallery also includes family and Bluetooth connection illustrations.
