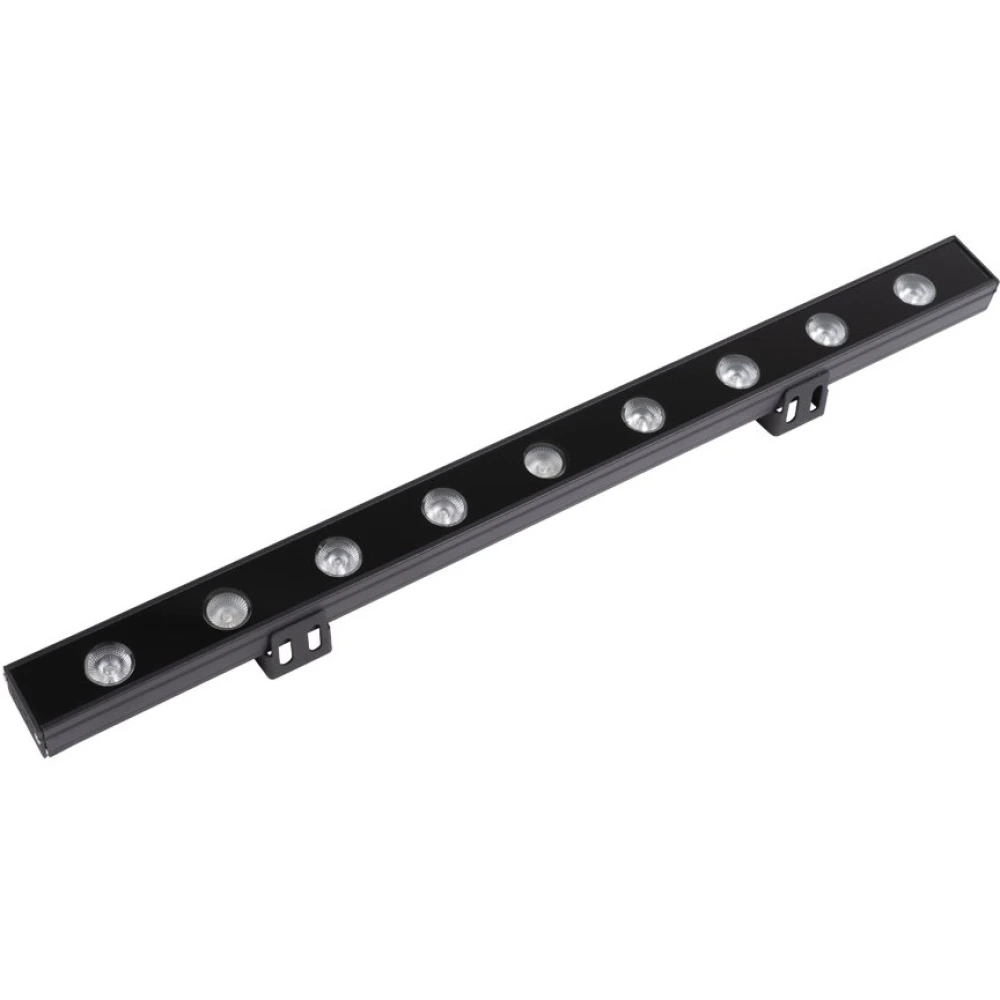

LED wall washer 9W 2700K 0.5m IP65, black (Optonica)

Name: LED wall washer 9W 2700K 0.5m IP65, black (Optonica)
Brand: OPTONICA
SKU: 7131
Price: 48.85 EUR
Availability: BackOrder

48.85€

Ex Tax: 40.37€

Enerģijas klase:

Datu lapa

Brand: OPTONICA

Product Code: 7131

Availability: Delivery time ~1 week

Viewed 13 times

Qty

Add to wishlist
Add to compare

Tags: LED wall washer façade lighting outdoor lighting 9W 2700K IP65 Optonica 7131

Categories Cart Account Search Recent View Go to Top

Description

Item specifics

Light source type Integrated LED
Voltage 220–240 V AC
Housing colour Black
Housing material Aluminium
Dimensions (L×W×H) Nominal length: 500 mm
Mounting type Surface mounting with brackets
IP rating IP65
Operating temperature (Ta) −20…+40 °C
Warranty 2 years
Accessories 7137 joining cable
Wattage 9 W
Luminous flux 700 lm
Colour temperature (CCT) 2700 K
Light colour Warm white
Colour capability Single colour
Beam angle 30°
Colour rendering index (CRI/Ra) ≥80
Voltage 220–240 V AC
Dimmable No
Energy class F
Rated Lifetime (hours) 25 000 h

Product Description

Optonica 7131 is a linear LED wall washer with 9 W power, 700 lm luminous flux and a 2700 K colour temperature. Its 0.5 m black body is designed to illuminate exterior walls and architectural details. The integrated LED source produces a warm white accent without requiring a separate bulb.

Light and applications

The 2700 K warm white light suits residential buildings, hotels and restaurants where a warm evening atmosphere is desired. The compact 0.5 m format suits individual façade sections, columns and narrower architectural features.

The 30° beam angle concentrates light on the selected surface. The effect on the wall depends on installation distance, aiming angle and surface texture; position multiple fittings to suit the area being illuminated. CRI ≥80 describes the colour rendering of the light source. This model has a fixed light colour and is not dimmable.

Housing and operating conditions

The fitting has a black aluminium body and IP65 protection against dust and water jets. It is designed for outdoor use, with the same attention to ingress protection required at the electrical connections. Choose the mounting location and fixings to suit the wall material and its exposure to the weather.

The manufacturer specifies an operating temperature of −20…+40 °C and a rated LED lifetime of 25,000 hours. The stated energy efficiency class is F and the warranty is 2 years. Rated lifetime is an operating-life specification and is separate from the warranty period.

Connection and compatible accessories

Connect this model to a 220–240 V AC mains supply. A separate 24 V power supply or RGBW controller is not required. Follow the manufacturer’s wiring instructions and protect cable entries and electrical joints for the outdoor installation environment.

Use the Optonica 7137 joining cable to interconnect compatible fittings in this series. When selecting additional luminaires, compare their wattage, length and light colour. Models 7131–7136 form the 220–240 V white-light series; the programmable 24 V system uses its own accessories.

Identifiers: Optonica 7131; series WW9-A1; EAN 3800156671317.

Energy label: F energy efficiency class; EPREL 749341.
