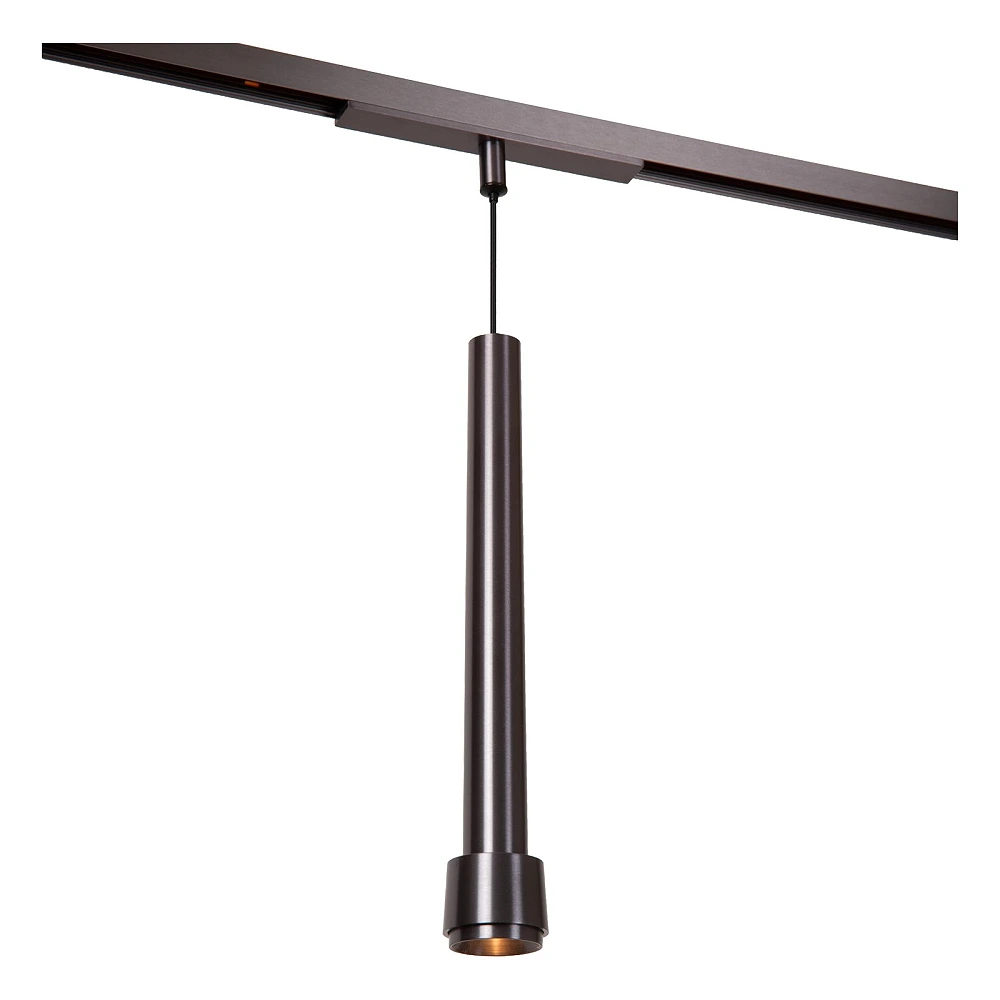

Lucide LINIAL TUBIZ 48 V pendant light8 W CCT, satin gunmetal

Lucide Premium LINIAL TUBIZ is a slim pendant fitting for the LINIAL 48 V track system. The aluminium cylinder has a Satin Gun Metal finish, and its 4.5 cm diameter creates a restrained vertical accent over a counter, kitchen island or table. Light is directed downwards; several matching pendants can be positioned along a track to coordinate the arrangement with the length of the illuminated surface.

Advantages

• Slim pendant: the narrow cylinder creates a restrained vertical accent above a table or counter.
• Smart light adjustment: the LINIAL system controls both brightness and white-light colour.
• Adjustable height: the suspension can be coordinated with the illuminated surface before installation.

Light and control

The integrated LED source is rated at 8 W, with manufacturer-stated output of up to 670 lm. The instructions specify a source flux range of 67–670 lm. A 36° beam creates a more concentrated lighting area, whose width depends on the distance to the surface. The manufacturer’s stated CRI 90 helps food, wood, fabrics and other objects retain more natural-looking colours.

Smart control allows adjustment of both brightness and white-light colour within a 2700–4000 K range. The lower value provides warmer evening light, while the upper end gives more neutral lighting for everyday tasks. Dimming and CCT adjustment are separate functions, allowing one lighting zone to suit different uses throughout the day.

Installation and safety

Control is provided through a compatible LINIAL smart system; the track, appropriate power supply and smart-control components must be specified when assembling the system. Brightness is adjusted through the system’s controls, not a conventional wall dimmer. This is a 48 V fitting and must not be connected directly to the 230 V mains or a conventional 230 V track.

Overall suspension height can be adjusted between 33.4 and 178.2 cm before installation. The cylinder measures Ø4.5 × 28.2 cm, and the attached cable is 150 cm long. These dimensions help set the pendant above a table while retaining the required clearance. The fitting’s net weight is 0.29 kg.

The light direction cannot be mechanically turned, so its position on the track and suspension height determine the illuminated work area. IP20 is intended for dry indoor rooms. Electrical class III refers to operation at safety extra-low voltage. There is no motion sensor; the total system load must suit the selected power supply’s capacity.

The package includes the fitting with its integrated LED source and installation accessories; the complete track system is assembled separately. The manufacturer states an expected LED lifetime of 25,000 hours and 35,000 switching cycles. The source has energy efficiency class G on the A–G scale, and the fitting has a stated 5-year manufacturer warranty.

Applications

TUBIZ suits placement above a kitchen island, counter or table within a LINIAL 48 V system. Several pendants on one rail create a coordinated arrangement along an elongated surface.

Tip

Select track, power supply and smart-control components from the compatible LINIAL 48 V system, checking the combined load. Do not connect this pendant directly to the 230 V mains or to a conventional 230 V track.

Manufacturer’s installation instructions · EPREL light source information.
