STEINEL DL Vario Quattro PRO S LED sensor ceiling light, 14 W, 1430 lm, 4000 K, white, IP54 — 068196
165.50€Bez PVN: 136.78€

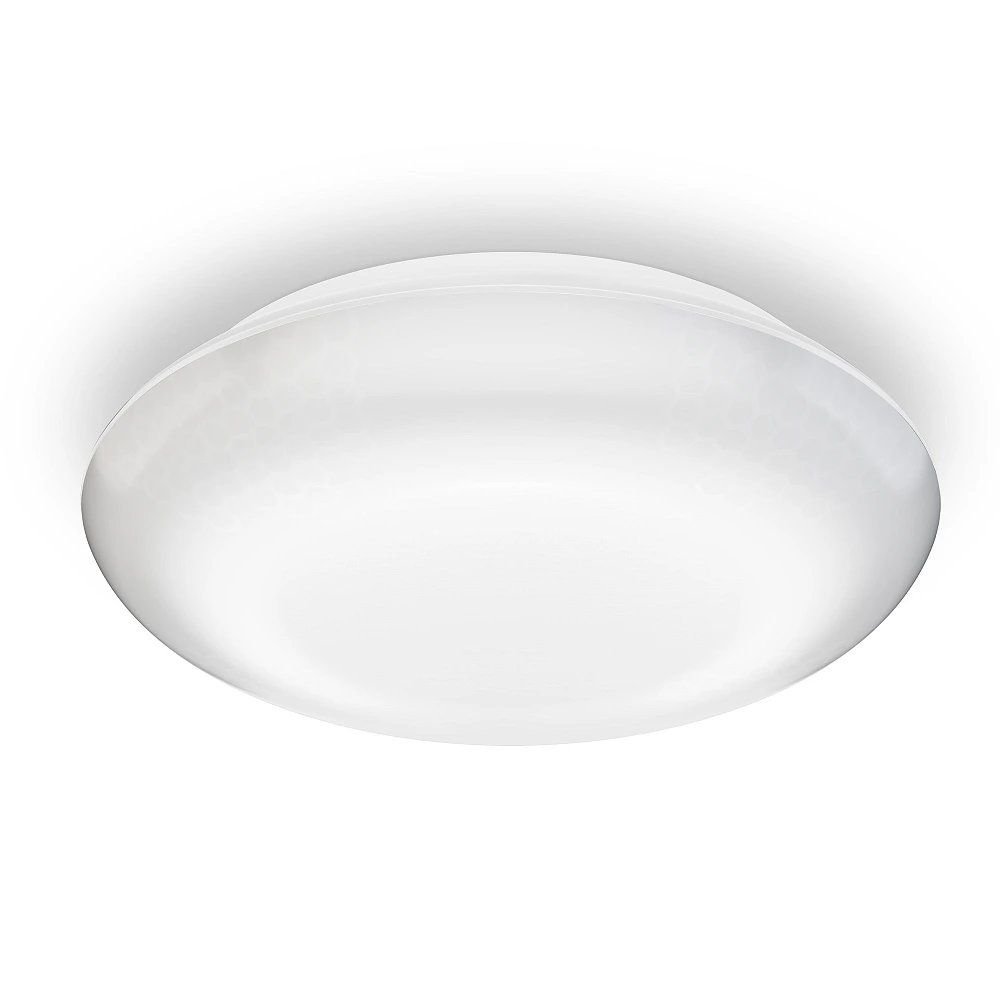

STEINEL DL Vario Quattro PRO S LED sensor ceiling light, 14 W, 1430 lm, 3000 K, white, IP54 — 068202
165.50€
Ex Tax: 136.78€
Energy class:
Viewed 2 times
Categories
Cart
Account
Search
Recent View
Go to Top
All Categories
×
- Indoor lighting
- Outdoor lighting
- Technical lighting
- LED bulbs
- LED strips and profiles
- LED power supplies
- Motion sensors and dusk switches
- Motion sensors
- Other
- Sale
Shopping Cart
×
Your shopping cart is empty!
Search
×
Item specifics
- Light source type Integrated STEINEL LED module
- Replaceable light source No — LED module is not replaceable
- Voltage 220–240 V AC, 50/60 Hz
- Housing colour White
- Housing material Plastic
- Diffuser material Textured plastic
- Dimensions (L×W×H) Ø310 × 69 mm (diameter × height)
- Mounting type Surface-mounted on indoor or outdoor ceilings
- IP rating IP54
- IK rating IK07
- Protection class (electrical) II — double insulation
- Operating temperature (Ta) −20 to +35 °C
- Control method PIR sensor; control-dial adjustment; external switch for 4-hour override
- Remote control included No — remote control is not provided
- Soft light start Yes
- Replaceable driver No
- Additional switching capacity Resistive load up to 500 W; separate from the fitting’s 14 W consumption. Enable relay using control.
- Weight 890 g (net)
- Warranty 5-year manufacturer warranty under its terms
- Accessories Mounting spacer and retaining strap included
- Wattage 14 W — complete fitting
- Luminous flux 1430 lm
- Luminous efficacy (lm/W) 102 lm/W
- Colour temperature (CCT) 3000 K — fixed
- Light colour Warm white
- Colour rendering index (CRI/Ra) Ra 82
- Colour consistency (SDCM) SDCM 3
- Power factor (PF) 0.87
- Mains frequency 50/60 Hz
- Dimmable Built-in 10% basic light; external-dimmer compatibility not declared
- Smart control No Bluetooth or app control
- Energy class D — integrated light source
- Energy consumption (kWh/1000 h) 14 kWh/1000 h — light-source energy label
- Rated Lifetime (hours) >60,000 h (L70B50 at 25 °C); 50,000 h at maximum operating temperature
- SKU 068202
- EAN 4007841068202
- Number of detection zones 4 independently adjustable 90° sectors
- Sensor type PIR — passive infrared motion sensor
- Reach 2–8 m in each of 4 directions; data-sheet area tangentially 16 × 16 m, radially 4 × 4 m
- Detection angle 360° (4 × 90°)
- Optimal mounting height 2.8 m
- Maximum mounting height 6 m
- Time setting 5 s–30 min
- Twilight setting 2–1000 lx
- Sneak-by guard Yes — detection beneath the sensor
- Segment masking No shrouds; adjust zones using the reach controls
- Manual override 4 hours — activated using a switch in the supply line
- Watt-o-matic 10%; off / 10 min / 30 min / all night
- Output Approx. 0.5 W sensor standby; manual specifies Psb = 0.42 W
- Relay load Incandescent/halogen: 500 W; fluorescent ballasts, compensated/uncorrected fluorescent and low-voltage halogen: 500 VA; capacitance up to 88 µF
- LED load (W) Lamps <2 W: 16 W total; manufacturer groups >2 to <8 W and >8 W: 64 W total
- Parallel connection Wired — up to 10 lights in this series using the manufacturer wiring diagram
- Settings Control dials; each of four sectors has independent reach adjustment
Product Description
STEINEL DL Vario Quattro PRO S is a white LED ceiling light with four PIR sensors for indoor and outdoor use. It suits corridors, stairwells, ancillary rooms and covered entrance areas. Article 068202 has a fixed 3000 K colour temperature; it is not switchable.
3000 K light in a shallow fitting
The integrated 14 W LED delivers 1430 lm of warm-white light with an efficacy of 102 lm/W. 3000 K suits spaces where a warm, welcoming appearance is wanted. A white plastic housing and textured plastic diffuser form a compact Ø310 × 69 mm fitting. CRI/Ra 82 describes colour rendering, and SDCM3 indicates consistent white-light colour.
Four individually adjustable detection zones
Four 90° PIR sectors provide combined 360° coverage. A separate control adjusts each sector's reach from 2 to 8 m, allowing detection towards a road to be reduced while maintaining coverage along an entrance path. The data sheet specifies coverage of up to 16 × 16 m across the detection zone and a 4 × 4 m reference area for radial approach. Actual coverage depends on mounting height, movement direction and settings; the manual provides detailed examples.
The recommended mounting height is 2.8 m, with a maximum of 6 m. PIR sensors detect changes in heat and do not work through walls or glass. The manufacturer advises against installing these lights directly above one another on multiple storeys.
Basic light level and everyday settings
The stay-on time adjusts from 5 seconds to 30 minutes, and the twilight threshold from 2 to 1000 lx. Each newly detected movement restarts the timer. Optional 10% basic lighting maintains orientation light in darkness for 10 or 30 minutes after the main lighting period, or throughout the night. It can also be disabled. In basic-light mode, the light briefly switches off every hour to measure ambient brightness.
Soft light start and a 4-hour manual override activated through an external wall switch are available. Settings are made using controls on the fitting; no Bluetooth or app is required.
Wired interconnection and additional loads
Up to 10 lights in this series can be interconnected by cable according to the manufacturer's diagram. The L′ relay output can switch additional lighting or another suitable load. 500 W is the resistive-load switching limit, not the fitting's power consumption. LED loads have lower limits: 16 W total for individual LED lamps below 2 W, or 64 W for the manufacturer's higher-power LED groups. The relay is disabled at the factory and must be enabled to operate an external load.
Protection and service life
IP54 protects against harmful dust ingress and splashing water; IK07 indicates impact resistance. The fitting has protection class II, an operating temperature of −20 to +35 °C and a 220–240 V, 50/60 Hz supply. The LED module and control gear are not replaceable; no separate bulb is required. The manufacturer specifies more than 60,000 h L70B50 at 25 °C: at this assessment threshold, half the light sources retain at least 70% of their initial output. Light-source energy efficiency class D. Net weight: 0.890 kg. The manufacturer provides a 5-year warranty under its terms.
Alternative colour temperature
