Item specifics
- Light source type One E27 bulb, sold separately
- Replaceable light source Yes — the E27 bulb can be replaced by the user
- Number of bulbs 1
- Max. power E27: max. 60 W incandescent or max. 20 W LED / energy-saving bulb
- Voltage 220–240 V AC, 50–60 Hz
- Housing colour Anthracite
- Housing material Stainless steel
- Diffuser material Opal plastic
- Dimensions (L×W×H) 81 × 162 × 280 mm (depth × width × height)
- Mounting type Outdoor wall mounting
- IP rating IP44
- IK rating IK07
- Protection class (electrical) II — double or reinforced insulation
- Operating temperature (Ta) −20 to +40 °C
- Control method External on/off switch; no sensor
- Basic light None
- Soft light start No
- Weight 660 g (net)
- Warranty 3-year manufacturer warranty under its terms
- SKU 069254
- EAN 4007841069254
- Socket E27
- Included No — sold separately
Product Description

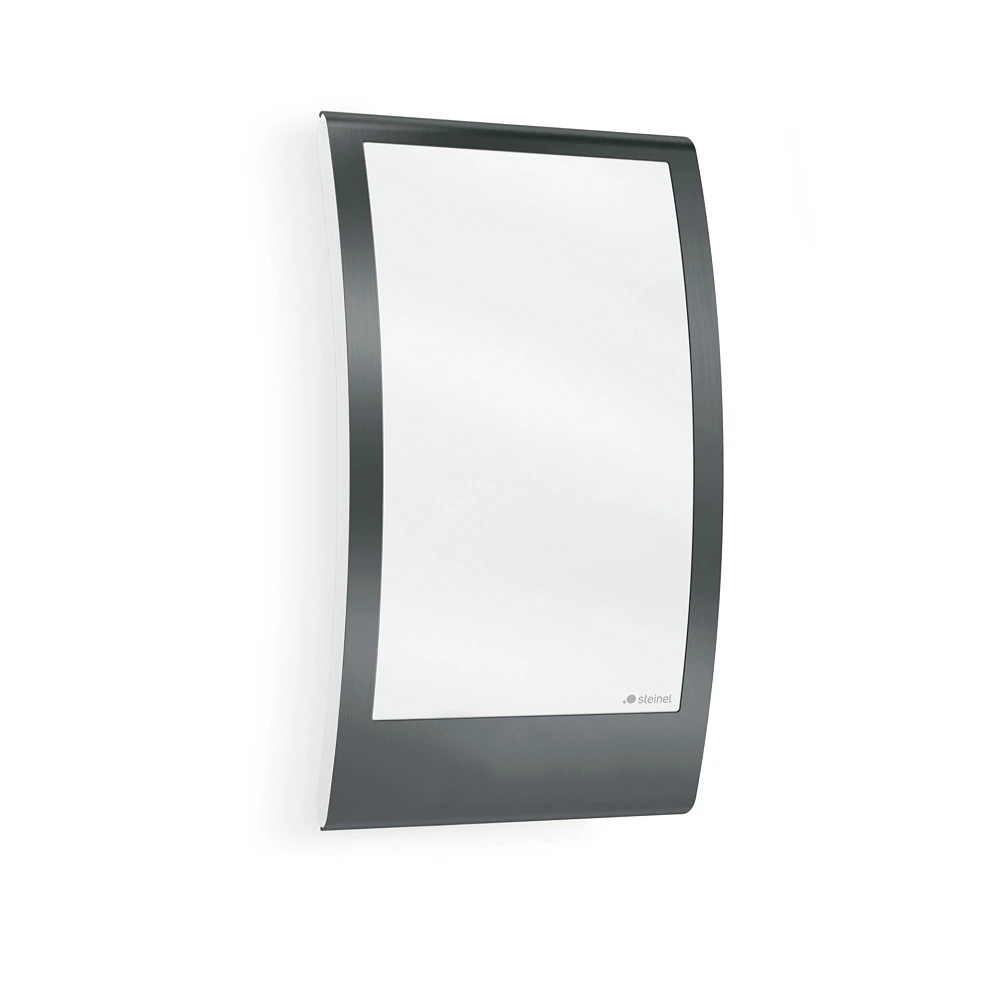

STEINEL L 22 is an anthracite outdoor wall light with an opal plastic diffuser and an E27 socket. It is suitable for entrances, building walls, terraces and balconies. This version has no sensor and is operated by an external wall switch or suitable separate switching control.
Choose the bulb that suits you
The E27 bulb is sold separately and can be replaced by the user. The manufacturer permits an incandescent bulb up to 60 W or an LED / energy-saving bulb up to 20 W. When selecting an LED bulb, check its actual power consumption and dimensions so it fits inside the luminaire.
Brightness, colour temperature and colour rendering depend on the chosen bulb. The empty fitting has no fixed lumen or kelvin value. The E27 socket allows the bulb to be replaced later while keeping the luminaire.
Operation with an external switch
L 22 is the simple version without a motion sensor, twilight sensor or Bluetooth. It suits locations where you prefer manual switching or already have separate lighting control. This model is also known as L 22 M. For automatic motion detection, choose L 22 S from the same family; for automatic switching in darkness, choose L 22 N.
Housing and outdoor protection
IP44 provides protection against water splashes, making the light suitable for outdoor wall mounting. The stainless steel housing is combined with a UV-resistant opal plastic diffuser. This product is the anthracite variant. IK07 describes tested resistance to mechanical impact.
Installation, additional operating data and package contents
Dimensions and connection
Dimensions 81 × 162 × 280 mm (depth × width × height), net weight 660 g. Designed for wall mounting with a concealed or surface-mounted supply lead, with a 220–240 V AC, 50–60 Hz supply. Electrical protection class II means double or reinforced insulation. Follow the installation instructions for this model with the power disconnected. Operating temperature −20 to +40 °C.
Package contents
One luminaire, mounting accessories and instructions; the E27 bulb is not included.
Care and warranty
Clean with a soft, slightly damp cloth without aggressive cleaning agents. 3-year manufacturer warranty under its terms.
